ZRE142-AEXGP (2010)

Toyota Corolla Axio/Fielder

Production May 2010 - Apr 2012
Engine 2ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1005- )2ZRFAE..ZRE142

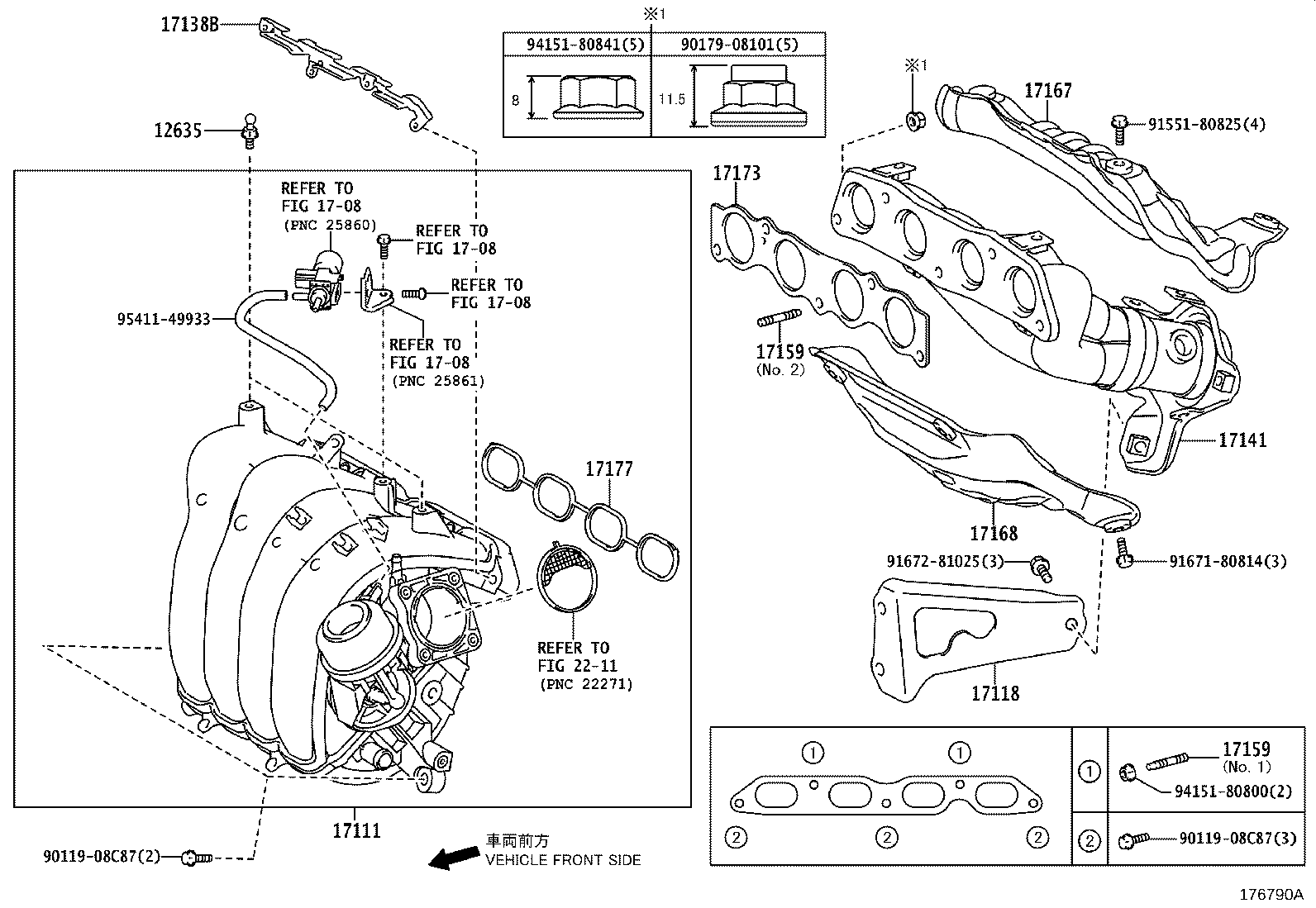

Click highlighted areas on diagram

diagram 12635 1708 1708 1708 1708 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 9011908C87 9011908C87 9017908101 9155180825 9167180814 9167281025 9415180800 9415180841 9541149933
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-37011

2ZRFAE..ZRE14#

 1
Common parts
90119-08C87
90179-08101
91551-80825
91671-80814
91672-81025
94151-80800
94151-80841
95411-49933
Linked diagrams
1708
2211
