ZRE142-AEXGK (2006)
Toyota Corolla Axio/Fielder

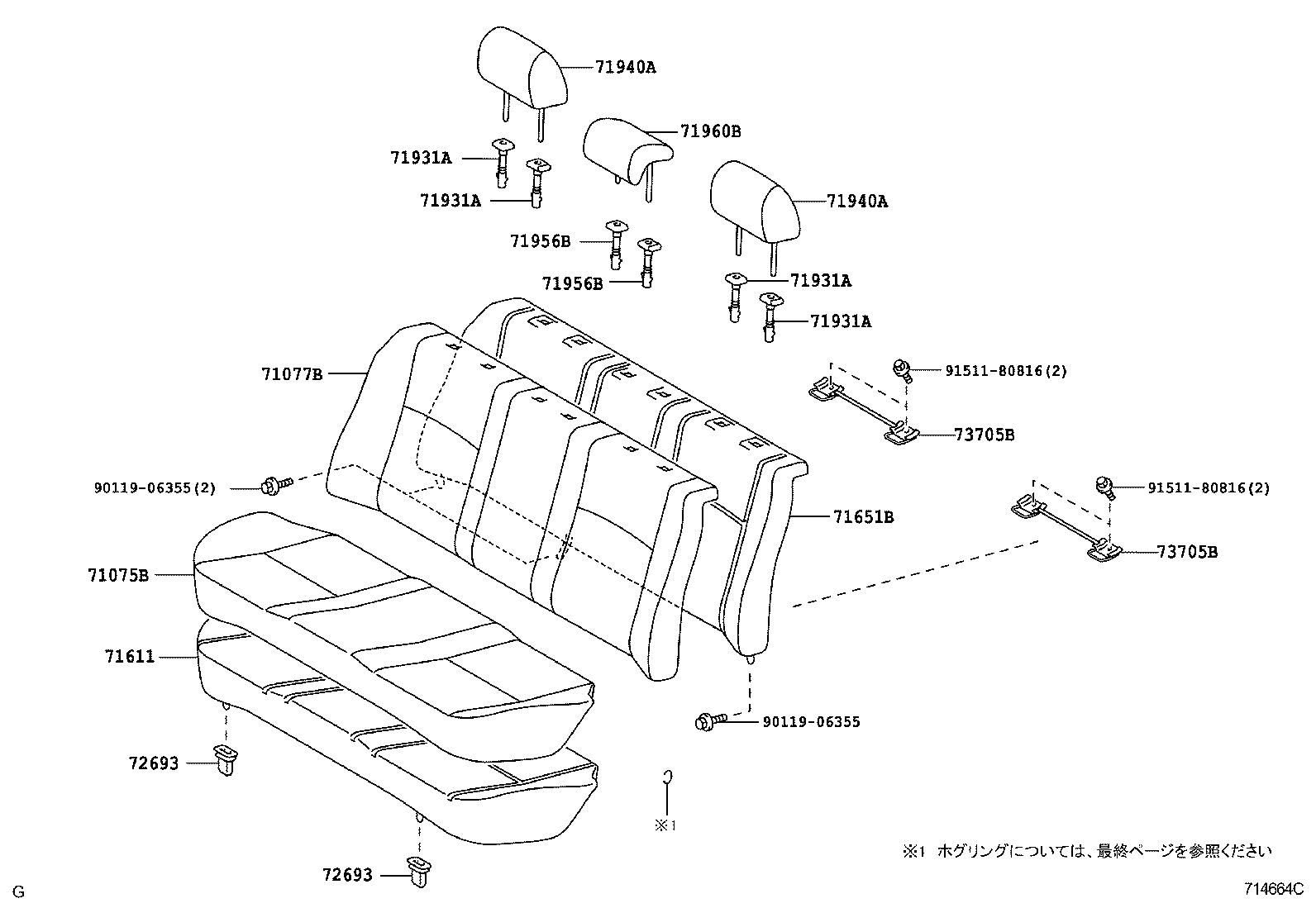

(0609- )SED
ｺﾃｲｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-12D90E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71075-12D90B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-12180 |
NZE14#,ZRE14#..SED |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12870B0 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71940-12870E0 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12870B0 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71940-12870E0 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-13150B1 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71960-12450E0 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71960-12450B0 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NZE14#,ZRE14#..SED |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NZE14#,ZRE14#..SED |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12070 |
NZE14#,ZRE14#..SED |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12070 |
NZE14#,ZRE14#..SED |
2 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 91511-80816 | ||||

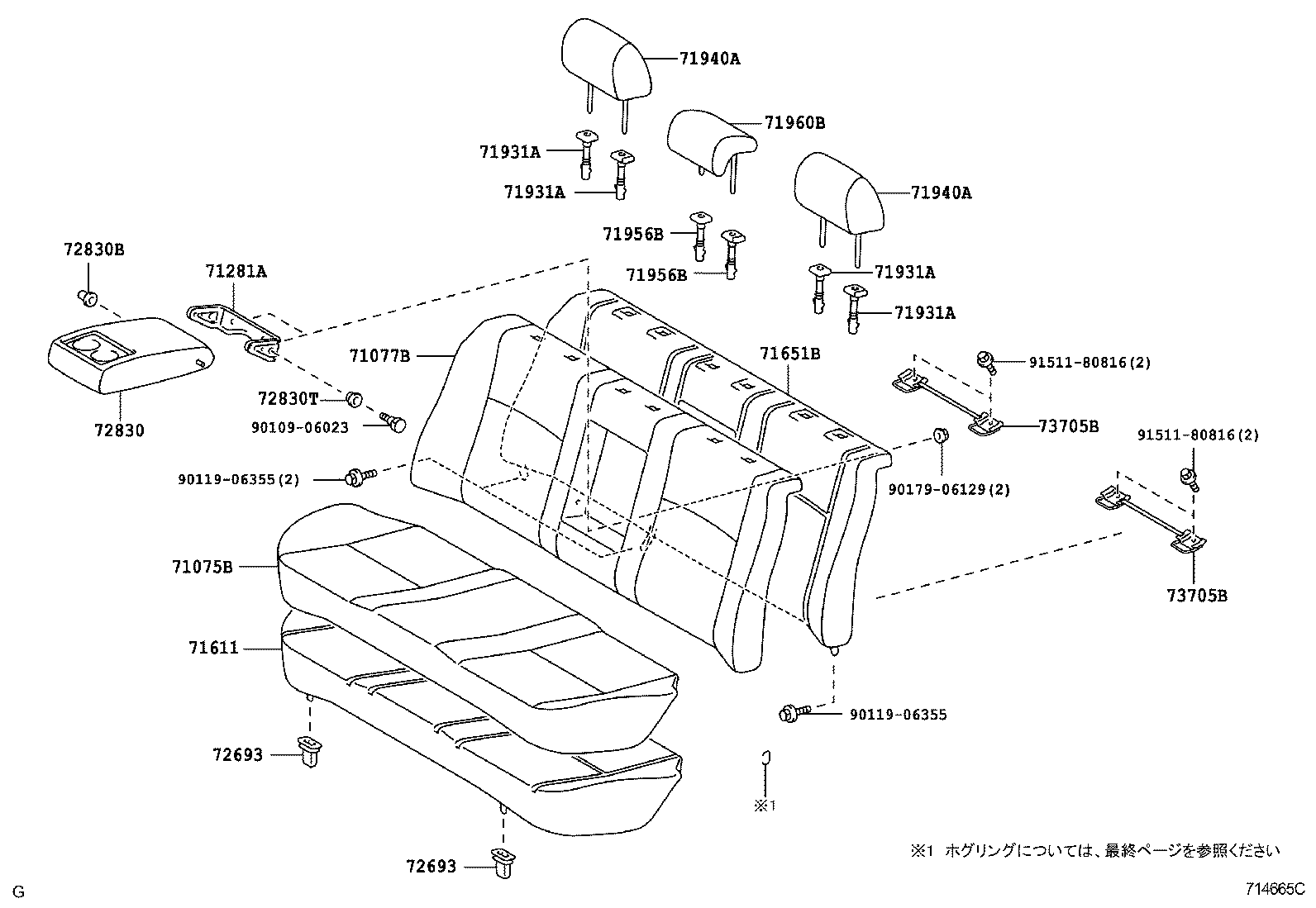

(0609- )SED
ｺﾃｲｼｰﾄ & ｱﾘ(ｱｰﾑﾚｽﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-12D90E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71075-12D90B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-12180 |
NZE14#,ZRE14#..SED |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12870B0 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71940-12870E0 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12870B0 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71940-12870E0 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-13150B1 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71960-12450E0 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71960-12450B0 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NZE14#,ZRE14#..SED |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NZE14#,ZRE14#..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12490E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72830-12490B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72830-13060B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 72830-13070B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 72830-13070B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06011 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12070 |
NZE14#,ZRE14#..SED |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12070 |
NZE14#,ZRE14#..SED |
2 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90119-06355 | ||||
| 90179-06129 | ||||
| 91511-80816 | ||||

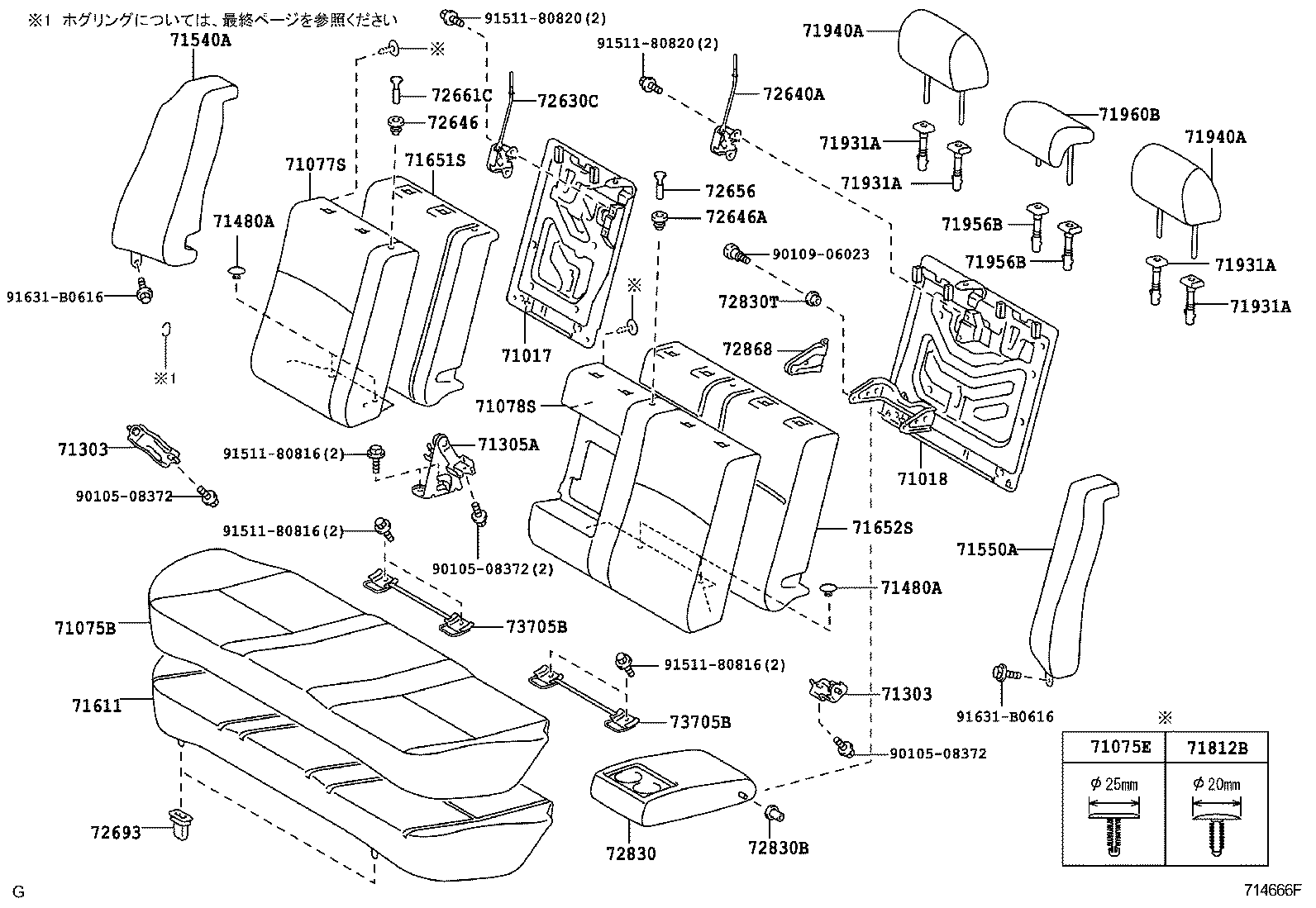

(0609- )SED
6:4ﾌﾞﾝｶﾂ ｶﾄｳｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12810 |
ZRE14#..LXL |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12370 |
ZRE14#..LXL |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-12D90E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71075-12D90B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-07080C0 |
ZRE14#..LXL BLACK |
4 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-12G50B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71077-12G50E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71077-13A60B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71077-13A50B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71077-13A60B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-12E50E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71078-12E50B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71078-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71078-13A40B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71078-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12170 |
ZRE14#..LXL |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12170 |
ZRE14#..LXL |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12210 |
ZRE14#..LXL |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE14#..LXL BLACK |
4 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09156C0 |
ZRE14#..LXL BLACK |
4 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71540-12760E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71540-12760B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71540-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71540-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-12760E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71550-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71550-12760B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71550-13240B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71550-13250B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-12180 |
NZE14#,ZRE14#..SED |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12A00 |
ZRE14#..LXL |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12740 |
ZRE14#..LXL |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90467-05164C0 |
ZRE14#..LXL BLACK |
16 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12870B0 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71940-12870E0 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12870B0 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71940-12870E0 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
2 | ||
| 71940-13330B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
2 | ||
| 71940-13320B1 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71970-47010P0 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71956-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970-47010E2 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-13150B1 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71960-13160B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71960-12450E0 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71960-12450B0 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47010 |
ZRE14#..LXL |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47010 |
ZRE14#..LXL |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72646-33010B8 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B8 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72646-33010E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-32030E2 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72661-32030B8 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030E2 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72661-32030B8 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NZE14#,ZRE14#..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12490E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72830-12490B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 72830-13060B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 72830-13070B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 72830-13070B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06011 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-12010E0 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 72868-12010B2 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12070 |
NZE14#,ZRE14#..SED |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12070 |
NZE14#,ZRE14#..SED |
2 | ||
| Common parts | ||||
| 90105-08372 | ||||
| 90109-06023 | ||||
| 91511-80816 | ||||
| 91511-80820 | ||||
| 91631-B0616 | ||||
(0609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
