ZRE142-AEXGK (2006)
Toyota Corolla Axio/Fielder
(0609-0810)
ｳﾝﾃﾝｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12K70B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71071-13A20B4 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71071-12K70E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71071-12L00B3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71071-12L00E3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-13A30B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71071-13A50B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-13A40B4 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12K10E2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-13A40B3 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-13A60B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-12K10B2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71073-13A30B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71073-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71073-12K00E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71073-12K00B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||

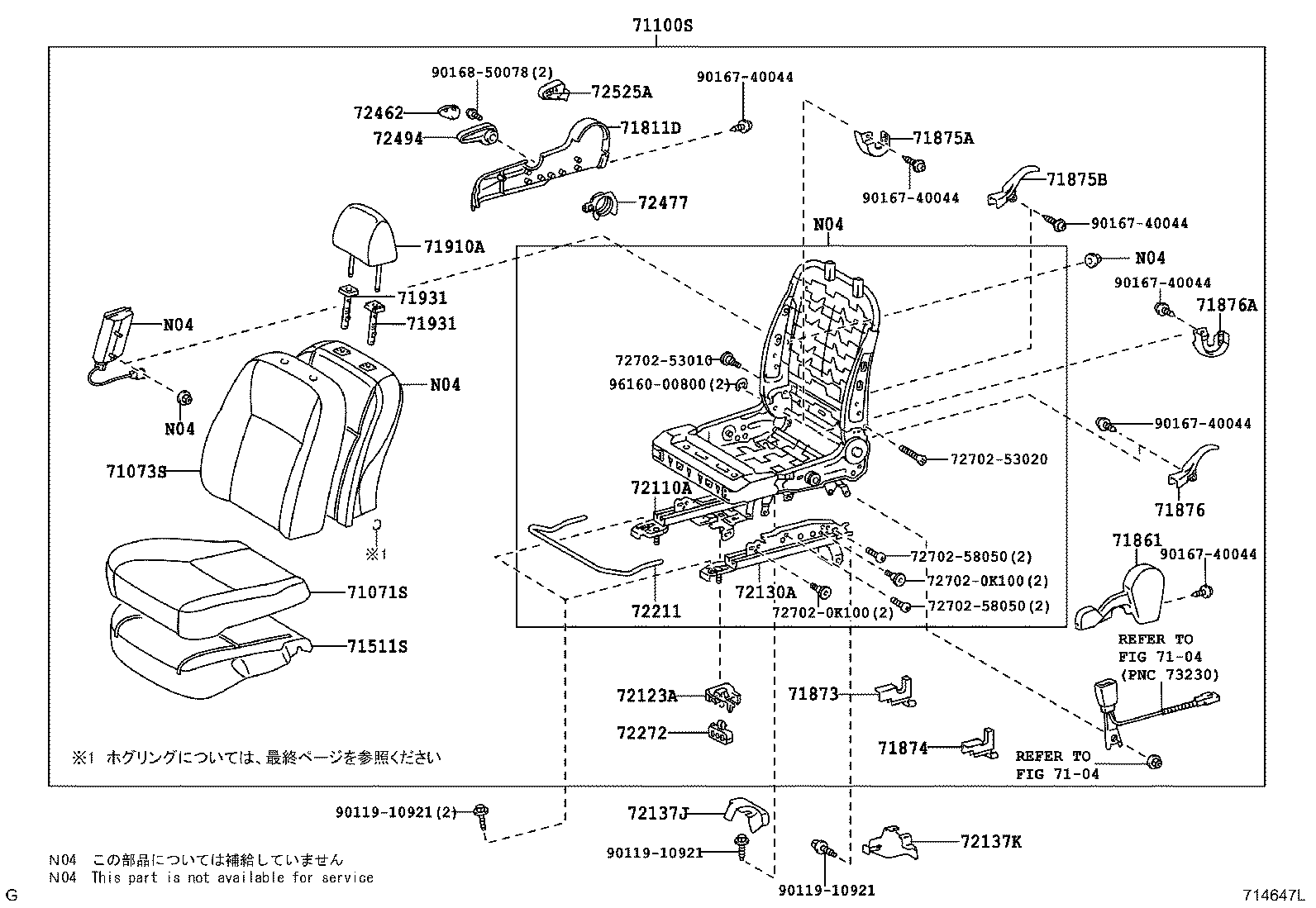

| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-13A50B6 |
ZRE142..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-13A30B6 |
ZRE142..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-12N50B5 |
ZRE142..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71100-12N50E6 |
ZRE142..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71100-13A50B6 |
ZRE142..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-13A30B6 |
ZRE142..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12A70 |
NZE14#,ZRE14# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-21030B3 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71811-21030E2 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12300E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71861-12300B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# |
2 | ||
| 71873-53030 |
NZE14#,ZRE14# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# |
2 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE14#,ZRE14# |
2 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE14#,ZRE14# |
2 | ||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
2 | ||
| 71910-12C70B1 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12220 |
NZE14#,ZRE14# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-12140 |
NZE14#,ZRE14# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12810 |
NZE141,ZRE142 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-12170B0 |
NZE14#,ZRE14# DK.GRAY |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-12140B0 |
NZE141,ZRE142 DK.GRAY |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-21020 |
NZE14#,ZRE14# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72462-58010B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
NZE14#,ZRE14#..SED BLACK,TRIM1#,4# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-12060B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72494-52010B4 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72494-52010E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72494-12060E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72525-58030E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-53010 | ||||
| 72702-53020 | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0609-0810)
ｼﾞｮｼｭｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12J30E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71072-12J60E3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-12J60B3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71072-12J30B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71072-13A10B4 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71072-13A40B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-13A30B4 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-13A20B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1B31B3 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1B31B3 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1D90B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71072-D1D90B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71072-D1D90E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71072-D1D90E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-12G30E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71074-12G30B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71074-13A20B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71074-13A30B3 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-13A40B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71074-12G40B2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71074-12G40E2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-13A50B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71074-D1D30B1 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71074-D1D30B1 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71074-D1D20E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-12M90B5 |
ZRE142..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71200-13D30B6 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-13D10B6 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-12M90E6 |
ZRE142..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71052-12080 |
NZE14#,ZRE14# |
1 | ||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-21030B3 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71812-21030E1 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71812-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 71812-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 71812-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12310B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71862-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 71862-12310E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71862-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 71862-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# |
2 | ||
| 71873-53030 |
NZE14#,ZRE14# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# |
2 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE14#,ZRE14# |
2 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE14#,ZRE14# |
2 | ||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
2 | ||
| 71910-12C70B1 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12190 |
NZE14#,ZRE14# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-12120 |
NZE14#,ZRE14# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-12130B0 |
NZE14#,ZRE14# DK.GRAY |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-12140B0 |
NZE14#,ZRE14# DK.GRAY |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12690 |
NZE14#,ZRE14# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-21020 |
NZE14#,ZRE14# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72526-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 72526-58040B8 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 72526-58040B8 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GRAY,TRIM1# |
1 | ||
| 72526-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 72526-58040E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0609-0810)
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12K70B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71071-13A20B4 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71071-12K70E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71071-12L00B3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71071-12L00E3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-13A30B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71071-13A50B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-13A40B4 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12K10E2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-13A40B3 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-13A60B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-12K10B2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71073-13A30B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71073-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71073-12K00E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71073-12K00B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-12150 |
NZE141,ZRE142 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12A70 |
NZE14#,ZRE14# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12A60 |
NZE14#,ZRE14# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-21030B3 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71811-21030E2 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12300E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71861-12300B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# |
2 | ||
| 71873-53030 |
NZE14#,ZRE14# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# |
2 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE14#,ZRE14# |
2 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE14#,ZRE14# |
2 | ||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
2 | ||
| 71910-12C70B1 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12220 |
NZE14#,ZRE14# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-12140 |
NZE14#,ZRE14# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12810 |
NZE141,ZRE142 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-12170B0 |
NZE14#,ZRE14# DK.GRAY |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-12140B0 |
NZE141,ZRE142 DK.GRAY |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-21020 |
NZE14#,ZRE14# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72462-58010B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
NZE14#,ZRE14#..SED BLACK,TRIM1#,4# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-12060B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72494-52010B4 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72494-52010E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72494-12060E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72525-58030E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-53010 | ||||
| 72702-53020 | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0609-0810)
ｼﾞｮｼｭｾｷ

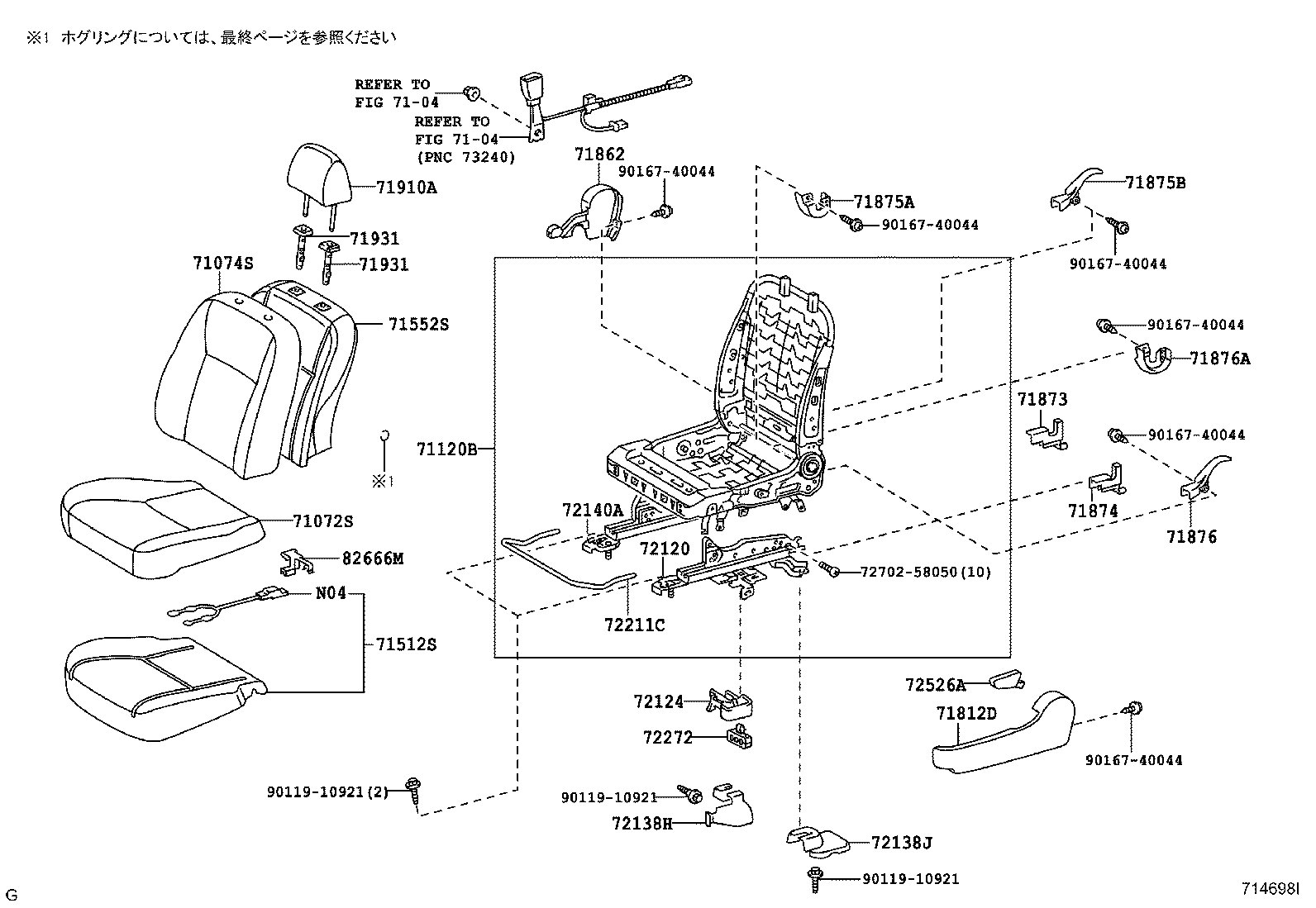

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12J30E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71072-12J60E3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-12J60B3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71072-12J30B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71072-13A10B4 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71072-13A40B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-13A30B4 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-13A20B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1B31B3 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1B31B3 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1D90B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71072-D1D90B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71072-D1D90E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71072-D1D90E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13A20B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71074-12G30E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71074-12G30B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71074-13A30B3 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-13A40B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71074-12G40B2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71074-12G40E2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-13A50B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71074-D1D30B1 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71074-D1D30B1 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71074-D1D20E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-12140 |
NZE14#,ZRE14# |
1 | ||
| 71120-D1171 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-D1171 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71052-12080 |
NZE14#,ZRE14# |
1 | ||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1070 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71551-D1070 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71552-12420 |
NZE14#,ZRE14# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-21030B3 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71812-21030E1 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71812-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 71812-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 71812-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12310B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71862-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 71862-12310E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71862-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 71862-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-53030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-12060 |
NZE14#,ZRE14# |
2 | ||
| 71873-53030 |
NZE14#,ZRE14# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# |
2 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-53010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-12060 |
NZE14#,ZRE14# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE14#,ZRE14# |
2 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71875-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71875-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71876-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
2 | ||
| 71876-12020B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE14#,ZRE14# |
2 | ||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
2 | ||
| 71910-12C70B1 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71930-47010P1 |
NZE14#,ZRE14#..SED ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71931-47010P4 |
NZE14#,ZRE14#..SED ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12190 |
NZE14#,ZRE14# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-12120 |
NZE14#,ZRE14# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-12130B0 |
NZE14#,ZRE14# DK.GRAY |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-12140B0 |
NZE14#,ZRE14# DK.GRAY |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12690 |
NZE14#,ZRE14# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-21020 |
NZE14#,ZRE14# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 72272-12020 |
NZE14#,ZRE14# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72526-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 72526-58040B8 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 72526-58040B8 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GRAY,TRIM1# |
1 | ||
| 72526-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 72526-58040E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||

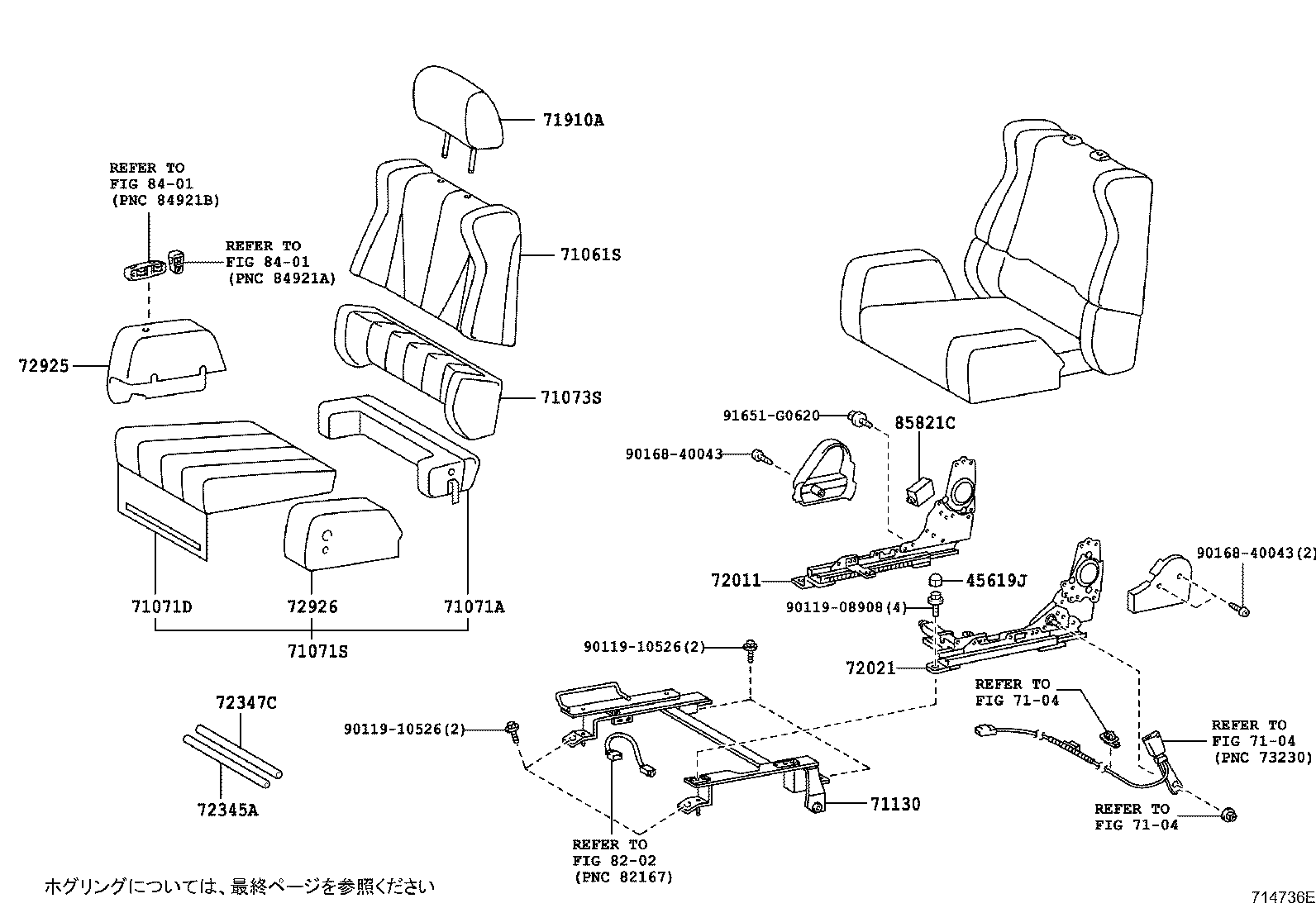

(0609-0810)G ; (0609-0810)WG
ｳｴﾙｷｬﾌﾞ-ﾌﾚﾝﾄﾞﾏﾁｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12K70B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71071-13A20B4 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71071-12K70E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71071-12L00B3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71071-12L00E3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71071-13A30B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71071-13A50B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71071-13A40B4 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12K10E2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71073-13A40B3 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-13A60B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71073-12K10B2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71073-13A30B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71073-13A50B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71073-12K00E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71073-12K00B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
2 | ||
| 71910-12C70B1 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90119-10526 | ||||
| 90168-40043 | ||||
| 91651-G0620 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0609- )
ｳｴﾙｷｬﾌﾞ(ｼﾞｮｼｭｾｷ ｶｲﾃﾝ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12J30E3 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71072-12J60E3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71072-12J60B3 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71072-12J30B3 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71072-13A10B4 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71072-13A40B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-13A30B4 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71072-13A20B4 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1B31B3 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1B31B3 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1D90B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71072-D1D90B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71072-D1D90E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71072-D1D90E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13A20B2 |
ZRE14#..S DK.GRAY,TRIM1# |
1 | ||
| 71074-12G30E1 |
ZRE14#..LXL GREGE,TRIM4# |
1 | ||
| 71074-12G30B1 |
ZRE14#..LXL GRAY,TRIM1# |
1 | ||
| 71074-13A30B3 |
ZRE14#..S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-13A40B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
1 | ||
| 71074-12G40B2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71074-12G40E2 |
ZRE14#..LXL SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 71074-13A50B3 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71074-D1D30B1 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71074-D1D30B1 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1D20B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71074-D1D20E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-12140 |
NZE14#,ZRE14# |
1 | ||
| 71120-D1171 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-D1171 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71052-12080 |
NZE14#,ZRE14# |
1 | ||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71052-12080 |
NZE14#,ZRE14# |
1 | ||
| 71512-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71517A - PAD, FRONT SEAT CUSHION COVER | ||||
| 71517-D1020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
4 | ||
| 71517-D1020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
4 | ||
| 71517A - PAD, FRONT SEAT CUSHION COVER | ||||
| 71517-D1020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
4 | ||
| 71517-D1020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 71537-26010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1070 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71551-D1070 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71552-12420 |
NZE14#,ZRE14# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-21030B3 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71812-21030E1 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71812-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 71812-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 71812-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12310B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 71862-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 71862-12310E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 71862-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 71862-D1020B0 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58040B4 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71875-58040B4 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71875-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71875-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58040B4 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 71876-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71876-58040B4 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71876-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GRAY,TRIM1# |
1 | ||
| 71877-D1010E1 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 71877-D1010B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 71877-D1010E1 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C70E1 |
ZRE14#..LXL GREGE,TRIM4# |
2 | ||
| 71910-12C70E1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4#,運転席側,助手席側 |
1 | ||
| 71910-12C70B1 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71910-12C80B2 |
ZRE14#..S DK.GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
2 | ||
| 71910-12C90B2 |
ZRE14#..S ｴｱﾛﾂｱﾗｰ,DARK GRAY,TRIM1# |
2 | ||
| 71910-12C70B1 |
ZRE14#..LXL GRAY,TRIM1# |
2 | ||
| 71910-12C80B2 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1#,運転席側,助手席側 |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,GREGE,TRIM4# |
1 | ||
| 71930-52030B2 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 71931-42020B9 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B2 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,LT.GRAY,TRIM1# |
1 | ||
| 71930-52030E0 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-42020B9 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,GRAY,TRIM1# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
NZE14#,ZRE14#..G,LXL,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,GREGE,TRIM4# |
1 | ||
| 71930-52030B2 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 71931-42020B9 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71930-52030B2 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,LT.GRAY,TRIM1# |
1 | ||
| 71930-52030E0 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71931-42020B9 |
NZE14#,ZRE14#..SED ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B5 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 72526-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| 72526-58040B8 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 72526-58040B8 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GRAY,TRIM1# |
1 | ||
| 72526-58040E2 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| 72526-58040E3 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-D1800B0 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72890-D1810E0 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 72890-D1800B0 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72890-D1810B0 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 72890-D1810B0 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 72890-D1810E0 |
ZRE14#..LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 35469-D1030 | ||||
| 71769-60010B6 | ||||
| 78899-D1010 | ||||
| 90109-10164 | ||||
| 90119-08C38 | ||||
| 90119-08C39 | ||||
| 90119-10918 | ||||
| 90201-12014 | ||||
| 90201-15023 | ||||
| 90201-15038 | ||||
| 94542-01400 | ||||
| 94612-10800 | ||||
| C9916-40001 | ||||
| C9956-14004 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(0609- )
ｳｴﾙｷｬﾌﾞ(ｼﾞｮｼｭｾｷ ｶｲﾃﾝ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58561H - CARPET, FRONT FLOOR SIDE, LH | ||||
| 58561-12080B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 58561-12080E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
1 | ||
| 58561-12080B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,MD.GRAY,TRIM1# |
1 | ||
| 58561-12080E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
1 | ||
| 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) | ||||
| 90467-05045B4 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
3 | ||
| 90467-05045B5 |
NZE14#,ZRE14#..G,LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
3 | ||
| 90467-05045B4 |
ZRE14#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
3 | ||
| 90467-05045B5 |
NZE14#,ZRE14#..G,LXL ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
3 | ||
| 90467-05045E4 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GREGE,TRIM4# |
3 | ||
| 90467-05045E4 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GREGE,TRIM4# |
3 | ||
| C3381 - COVER, SLIDE STEP, NO.1 | ||||
| C3381-22080E3 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| C3381-22080B5 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GRAY,TRIM1# |
1 | ||
| C3381-22080B5 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| C3381-22080E3 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| C3382 - COVER, SLIDE STEP, NO.2 | ||||
| C3382-22050E4 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVEBROWN,TRIM4# |
1 | ||
| C3382-22050E4 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVEBROWN,TRIM4# |
1 | ||
| C3382-22050B5 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| C3382-22050B5 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GRAY,TRIM1# |
1 | ||
| C7027 - LOCK SUB-ASSY, WELCAB SEAT TURN | ||||
| C7027-D1100 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7027-D1100 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7101 - BRACKET SUB-ASSY, SEAT HOLDER, FRONT | ||||
| C7101-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7101-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7104 - PLATE SUB-ASSY, SEAT TURN | ||||
| C7104-D1011 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7104-D1011 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7108 - COVER ASSY, TURN TABLE | ||||
| C7108-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7108-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7110 - BRACKET SUB-ASSY, SEAT HOLDER, REAR | ||||
| C7110-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7110-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7120 - LEG, WELCAB SEAT, NO.1 | ||||
| C7120-D1640 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7120-D1640 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7130 - PANEL ASSY, TURN TABLE | ||||
| C7130-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7130-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7139 - BRACKET, HOOK | ||||
| C7139-D1480 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7139-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7139-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7139-D1480 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7149 - PROTECTOR, TURN TABLE PANEL EDGE, LH | ||||
| C7149-D1060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7149-D1060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1090 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7159-D1090 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7160 - PANEL ASSY, SLIDE TABLE | ||||
| C7160-D1060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7160-D1060 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7169 - GEAR, SLIDE TABLE RACK | ||||
| C7169-D1011 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7169-D1011 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7169-D1040 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7169-D1040 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7191 - BRACKET, SEAT HOLDER LINK | ||||
| C7191-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7191-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7196 - COVER, TURN TABLE, NO.1 | ||||
| C7196-D1040 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7196-D1040 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7204 - HANDLE SUB-ASSY, WELCAB SEAT TRACK | ||||
| C7204-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7204-D1030 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7210 - FOOTREST ASSY, WELCAB SEAT | ||||
| C7210-D1080 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7210-D1080 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7227 - CARPET, WELCAB SEAT FOOTREST STEP | ||||
| C7227-D1010E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,CLOVE BROWN,TRIM4# |
1 | ||
| C7227-D1010E0 |
NZE14#,ZRE14#..G,LXL,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,CLOVE BROWN,TRIM4# |
1 | ||
| C7227-D1010B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,LT.GLAY,TRIM1# |
1 | ||
| C7227-D1010B1 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,LT.GLAY,TRIM1# |
1 | ||
| C7260 - HANDLE ASSY, SEAT TURN LOCK | ||||
| C7260-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7260-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7269 - CABLE, SEAT TURN LOCK RELEASE | ||||
| C7269-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7269-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7269A - CABLE, SEAT TURN LOCK RELEASE, NO.1 | ||||
| C7269-D1020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7269-D1020 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7271 - BRACKET, INTERLOCK, UPPER | ||||
| C7271-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7271-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7275 - PLATE, LOCK STRIKER, NO.1 | ||||
| C7275-D1011 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7275-D1011 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7881 - GRIP, CONTROL LINK | ||||
| C7881-22040 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7881-22040 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| Common parts | ||||
| 79329-12010 | ||||
| 90105-10165 | ||||
| 90108-08024 | ||||
| 90119-10321 | ||||
| 90119-10325 | ||||
| 90119-10526 | ||||
| 90168-50023 | ||||
| 90176-10005 | ||||
| 90179-08040 | ||||
| 90464-00620 | ||||
| 90467-08188 | ||||
| 90506-09045 | ||||
| 90541-06047 | ||||
| 91512-81018 | ||||
| 91631-G0616 | ||||
| 91641-H0814 | ||||
| 91651-B0610 | ||||
| 93210-56014 | ||||
| C7245-D1010 | ||||
| C7250-D1010 | ||||
| C8298-D1030 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
(0609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
