NZE164G-AWXEK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )5D

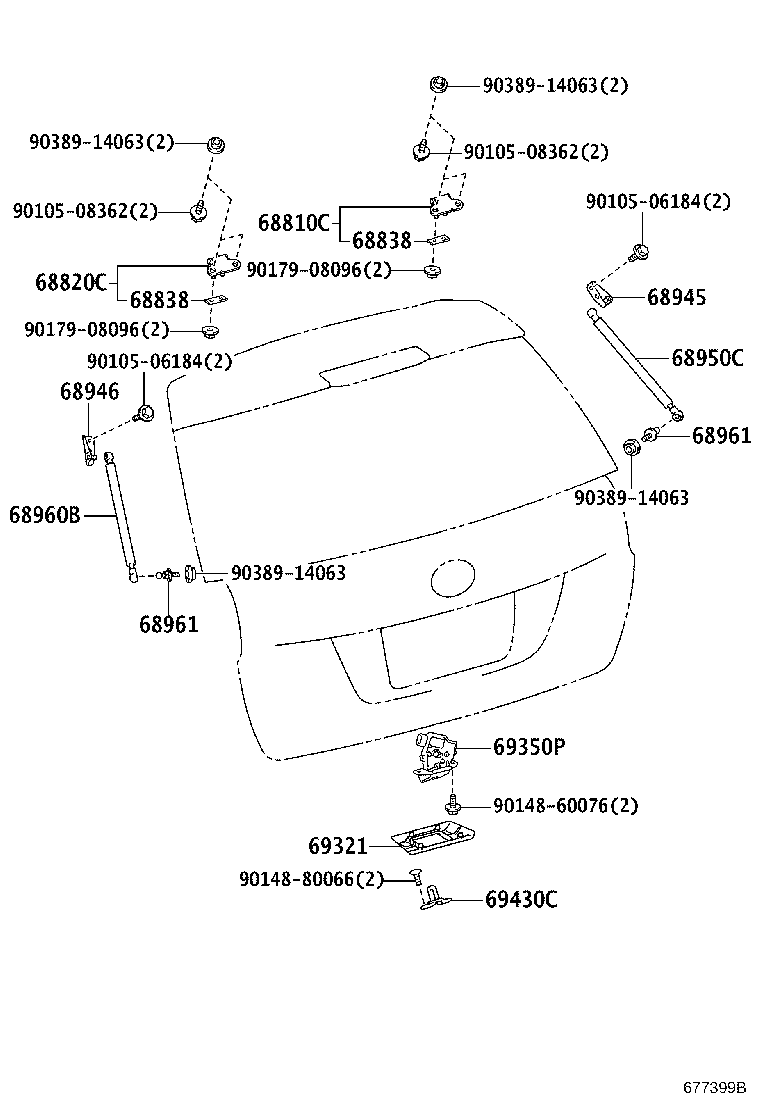

Click highlighted areas on diagram

diagram 68810C 68820C 68838 68838 68945 68946 68950C 68960B 68961 68961 69321 69350P 69430C 9010506184 9010506184 9010508362 9010508362 9014860076 9014880066 9017908096 9017908096 9038914063 9038914063 9038914063 9038914063
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-13100

NKE165,NZE16#,ZRE162..5D

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-13020

NKE165,NZE16#,ZRE162..5D

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-52020

NKE165,NZE16#,ZRE162..5D

厚さ=1.6

 2
68838-32010

NKE165,NZE16#,ZRE162..5D

厚さ=2.0

 2
68838-44020

NKE165,NZE16#,ZRE162..5D

厚さ=1.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-52020

NKE165,NZE16#,ZRE162..5D

厚さ=1.6

 2
68838-32010

NKE165,NZE16#,ZRE162..5D

厚さ=2.0

 2
68838-44020

NKE165,NZE16#,ZRE162..5D

厚さ=1.0

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-13080

NKE165,NZE16#,ZRE162..5D

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-13080

NKE165,NZE16#,ZRE162..5D

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-13240

NKE165,NZE16#,ZRE162..5D

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−有り(字光式対応)

 1
68950-13220

NKE165,NZE16#,ZRE162..5D

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-13240

NKE165,NZE16#,ZRE162..5D

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−有り(字光式対応)

 1
68960-13220

NKE165,NZE16#,ZRE162..5D

 1
68961 - BOLT, BACK DOOR STAY
68961-13030

NKE165,NZE16#,ZRE162..5D

 2
68961 - BOLT, BACK DOOR STAY
68961-13030

NKE165,NZE16#,ZRE162..5D

 2
69321 - COVER, BACK DOOR LOCK
69321-13010C0

NKE165,NZE16#,ZRE162..5D

BLACK,TRIM2#

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-13380

NKE165,NZE16#,ZRE162..5D

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52050

NKE165,NZE16#,ZRE162..5D

 1
Common parts
90105-06184
90105-08362
90148-60076
90148-80066
90179-08096
90389-14063
