NZE164G-AWXEK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1503)G,HBD,X ; (1503- )NZE161 ; (1503-)NKE165,NRE16#,NZE164..HBD,X

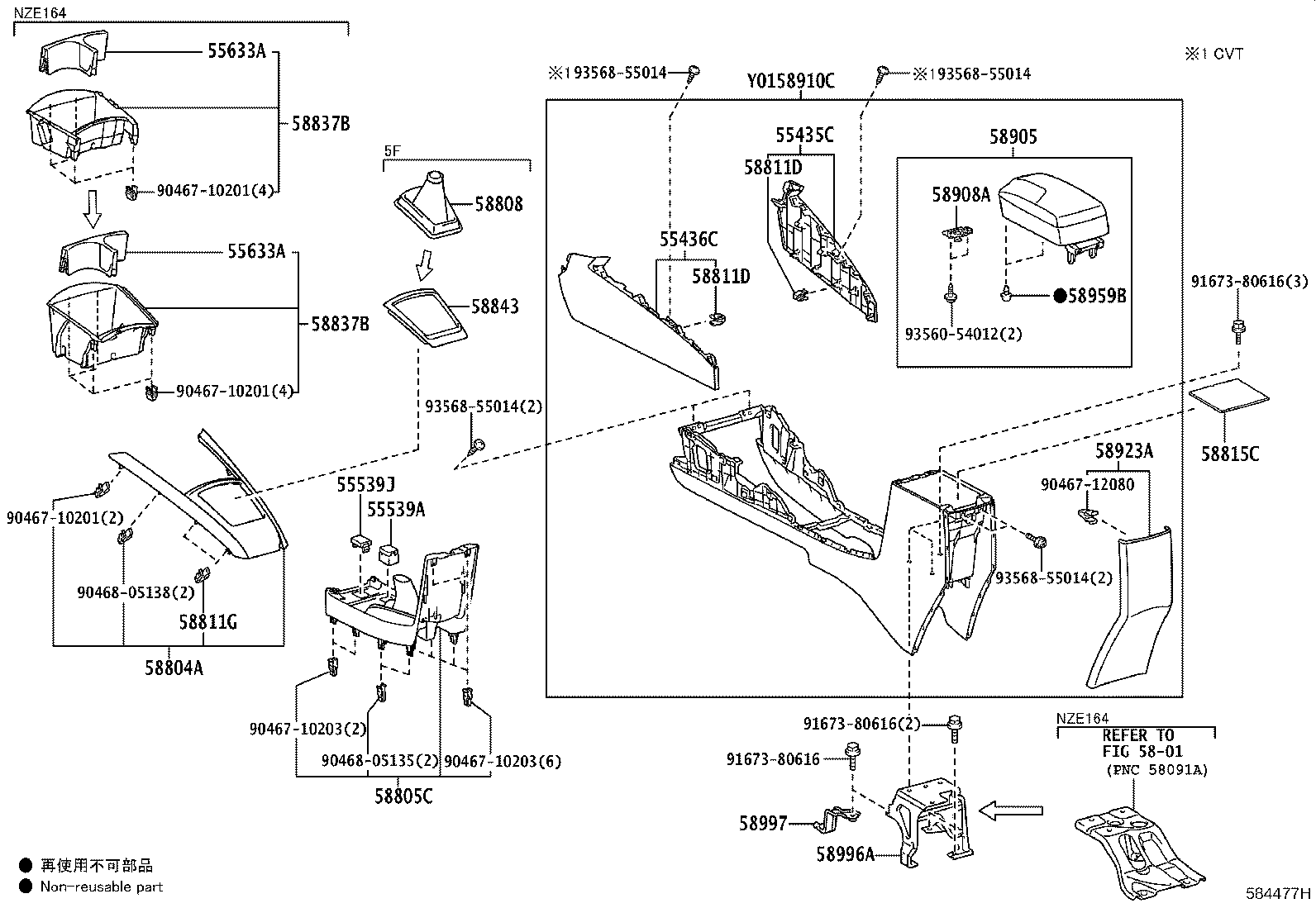

Click highlighted areas on diagram

diagram 55435C 55436C 55539A 55539J 55633A 55633A 5801 58804A 58805C 58808 58811D 58811D 58811G 58815C 58837B 58837B 58843 58905 58908A 58910C 58923A 58959B 58996A 58997 9046710201 9046710201 9046710201 9046710203 9046710203 9046712080 9046805135 9046805138 9167380616 9167380616 9167380616 9356054012 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55435C - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-12220C0

NZE164

BLACK,TRIM2#

 1
55436C - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-12190C0

NZE164

BLACK,TRIM2#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-12230C0

NRE160,NZE16#,ZRE162..G,S,X

BLACK,TRIM2#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-52060C0

NKE165,NRE160,NZE16#

BLACK,TRIM2#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-12150C0

NZE164

BLACK,TRIM2#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-12150C0

NZE164

BLACK,TRIM2#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-12170C1

NZE164..5D

BLACK,TRIM2#

 1
58804-12190C0

NZE164..5D..G

“AEROTOURER WXB”*(X),BLACK,TRIM2#

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-12040C1

NZE164

BLACK,TRIM2#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10201

NKE165,NRE160,NZE16#,ZRE162

 8
58811D - CLIP(FOR CONSOLE BOX)
90467-10201

NKE165,NRE160,NZE16#,ZRE162

 8
58811G - CLIP(CONSOL BOX)
90468-05138

NZE164

 4
58815C - CARPET, CONSOLE BOX
58815-12230

NKE165,NRE160,NZE16#,ZRE162

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-12070C0

NZE164

BLACK,TRIM2#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-12070C0

NZE164

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-12240C0

NRE160,ZRE162;NKE165,NZE16#..5D..CVT;NKE165,NZE16#..4D..CVT..(HBD,X)

BLACK,TRIM2#

 1
58843-12270C0

NZE16#..5D..CVT..G

“AEROTOURER WXB”*(X),BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12880C1

NKE165,NRE160,NZE16#..CVT..(G,HBD,X)

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

NKE165,NRE160,NZE16#..G,HBD,X

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-12A20C0

NZE164..G,X

BLACK,TRIM2#

 1
58923A - PANEL, CONSOLE REAR END
58923-12190C0

NZE164

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NKE165,NRE160,NZE16#,ZRE162

 2
Common parts
90467-10201
90467-10203
90467-12080
90468-05135
90468-05138
91673-80616
93560-54012
93568-55014
Linked diagrams
5801
