NZE164G-AWXEK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1503)

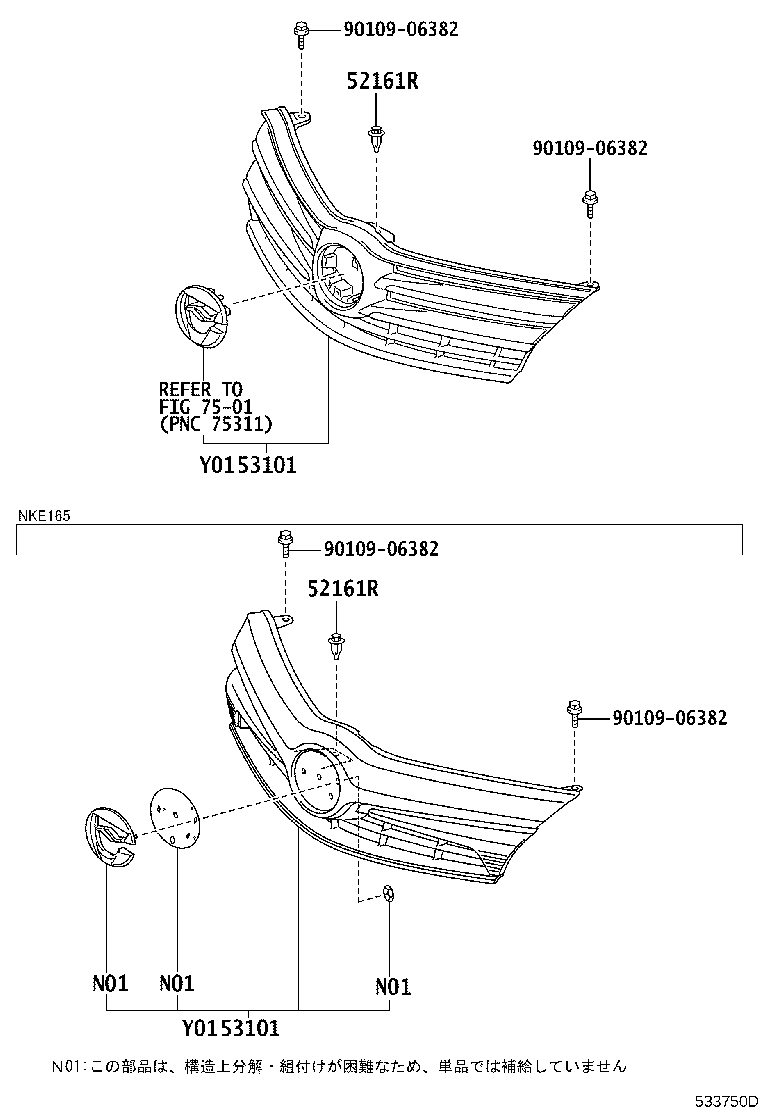

Click highlighted areas on diagram

diagram 52161R 52161R 53101 53101 7501 9010906382 9010906382 9010906382 9010906382
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

NKE165,NRE160,NZE16#,ZRE162

 1
52161R - PIECE, FRONT BUMPER
52161-16010

NKE165,NRE160,NZE16#,ZRE162

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-13280

NZE16#,ZRE162..5D

ﾒｯｷ

 1
53101-13300

NZE16#..5D..CVT..G

ﾒｯｷ,“AEROTOURER WXB”*(X)

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-13280

NZE16#,ZRE162..5D

ﾒｯｷ

 1
53101-13300

NZE16#..5D..CVT..G

ﾒｯｷ,“AEROTOURER WXB”*(X)

 1
Common parts
90109-06382
Linked diagrams
7501
