NZE164G-AWXEK (2012)
Toyota Corolla Axio/Fielder
Production
Apr 2012
-
Mar 2015
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )NZE164

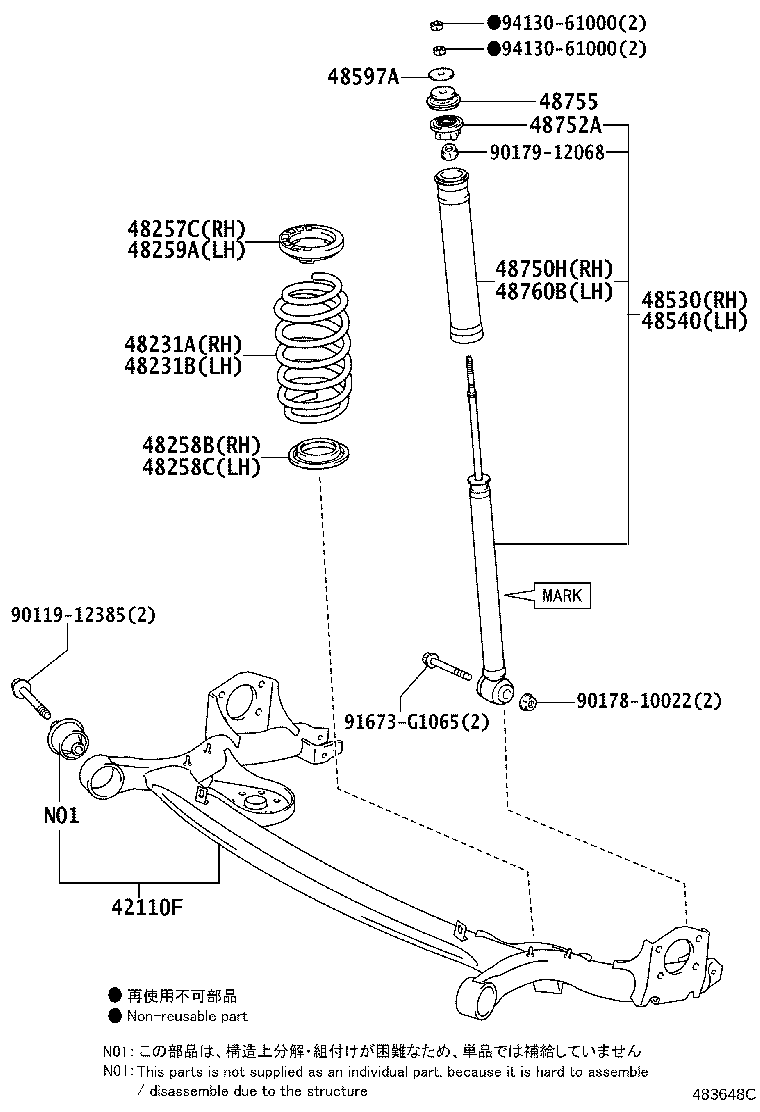

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-52281 |
NZE164 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-13141 |
NZE164..5D |
1 | ||
| 48231-13140 |
NZE164..5D |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-13140 |
NZE164..5D |
1 | ||
| 48231-13141 |
NZE164..5D |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-13160 |
NZE164..5D ﾏｰｸ 48530−13160 |
1 | ||
| 48530-13210 |
NZE164..5D ﾏｰｸ 48530−13210 |
1 | ||
| 48530-13211 |
NZE164..5D ﾏｰｸ 48530−13211 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-13160 |
NZE164..5D ﾏｰｸ 48530−13160 |
1 | ||
| 48530-13210 |
NZE164..5D ﾏｰｸ 48530−13210 |
1 | ||
| 48530-13211 |
NZE164..5D ﾏｰｸ 48530−13211 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-52110 |
NZE164 |
1 | ||
| 48750-52220 |
NZE164 |
1 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-52020 |
NZE164 |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-52010 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-52220 |
NZE164 |
1 | ||
| 48750-52110 |
NZE164 |
1 | ||
| Common parts | ||||
| 90119-12385 | ||||
| 90178-10022 | ||||
| 90179-12068 | ||||
| 91673-G1065 | ||||
| 94130-61000 | ||||
