NZE164G-AWXEK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1204-1710)NRE16#,NZE16#,ZRE162

Click highlighted areas on diagram

ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-12B50

NZE164..5D

 1
44050-12B60

NZE164..5D..G

ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 ｱﾙﾐ

 1
44050-12B61

NZE164..5D..G

ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 ｱﾙﾐ(ｸﾞﾚｰ塗装)

 1
44050-12B61

NZE164..5D..G

ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 ｱﾙﾐ

 1
44050-12B51

NZE164..5D

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NRE160,NZE16#,ZRE162

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NRE160,NZE16#,ZRE162

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NRE160,NZE16#,ZRE162

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52230

NRE160,NZE16#,ZRE162

 1
Common parts
44521-12050
90119-06844
91631-60825

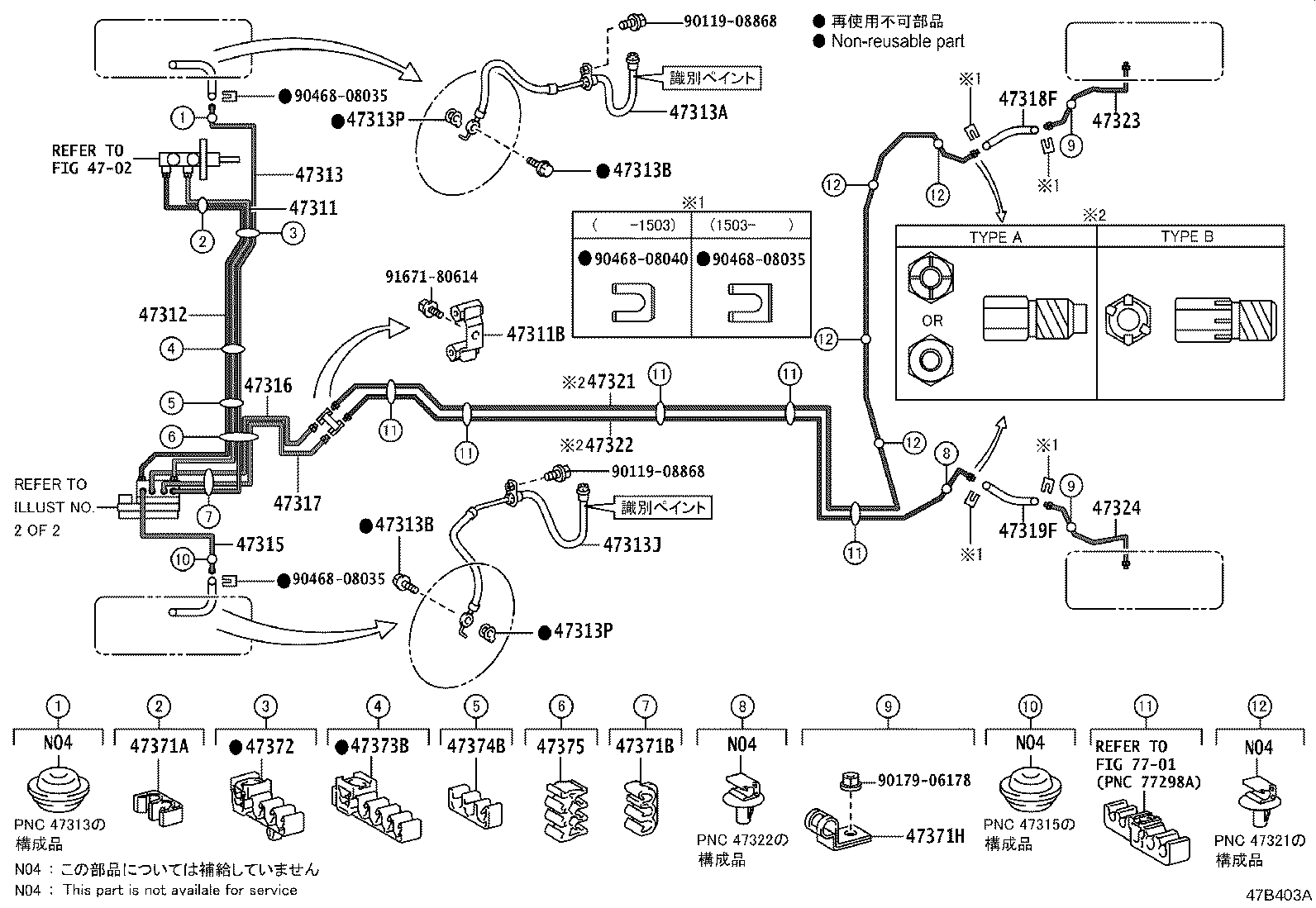

ILLUST NO. 1 OF 2(1204-1710)NZE164

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾁｭｰﾌﾞ

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371H 47372 47373B 47374B 47375 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808040 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52610

NRE160,NZE16#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NKE165,NRE160,NZE16#,ZRE162

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52420

NRE160,NZE16#

 1
47312-12650

NRE160,NZE16#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52230

NRE160,NZE16#

 1
47313-52231

NRE160,NZE16#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NKE165,NRE160,NZE16#,ZRE162

識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ

 1
90947-02G34

NKE165,NRE160,NZE16#,ZRE162

識別ﾍﾟｲﾝﾄ=黄緑

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NKE165,NRE160,NZE16#,ZRE162

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NKE165,NRE160,NZE16#,ZRE162

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G35

NKE165,NRE160,NZE16#,ZRE162

識別ﾍﾟｲﾝﾄ=水色

 1
90947-02H36

NKE165,NRE160,NZE16#,ZRE162

識別ﾍﾟｲﾝﾄ=紫

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NKE165,NRE160,NZE16#,ZRE162

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NKE165,NRE160,NZE16#,ZRE162

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52230

NRE160,NZE16#,ZRE162

 1
47315-52231

NRE160,NZE16#,ZRE162

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52191

NRE160,NZE16#,ZRE162

 1
47316-52190

NRE160,NZE16#,ZRE162

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52191

NRE160,NZE16#,ZRE162

 1
47317-52190

NRE160,NZE16#,ZRE162

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H29

NZE164

PNC 47321=TYPE B

 1
90947-02G71

NZE164

PNC 47321=TYPE A

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H30

NZE164

PNC 47322=TYPE B

 1
90947-02G72

NZE164

PNC 47322=TYPE A

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-12390

NZE164

TYPE A:ｲﾗｽﾄ参照

 1
47321-12391

NZE164

TYPE B:ｲﾗｽﾄ参照

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-12551

NZE164

TYPE B:ｲﾗｽﾄ参照

 1
47322-12550

NZE164

TYPE A:ｲﾗｽﾄ参照

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52141

NZE164

PNC 47321=TYPE B

 1
47323-52140

NZE164

PNC 47321=TYPE A

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52130

NZE164

PNC 47322=TYPE A

 1
47324-52131

NZE164

PNC 47322=TYPE B

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

NRE160,NZE16#,ZRE162

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D92

NRE160,NZE16#,ZRE162

 1
90464-00868

NRE160,NZE16#,ZRE162

 1
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10837

NZE164

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D84

NRE160,NZE16#,ZRE162

 1
90949-01D94

NRE160,NZE16#,ZRE162

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D97

NRE160,NZE16#,ZRE162

 1
90949-01D85

NRE160,NZE16#,ZRE162

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00929

NRE160,NZE16#,ZRE162

 1
90949-01D93

NRE160,NZE16#,ZRE162

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D98

NRE160,NZE16#,ZRE162

 1
90464-00925

NRE160,NZE16#,ZRE162

 1
Common parts
90119-08868
90179-06178
90468-08035
90468-08040
91671-80614
Linked diagrams
4702
7701
