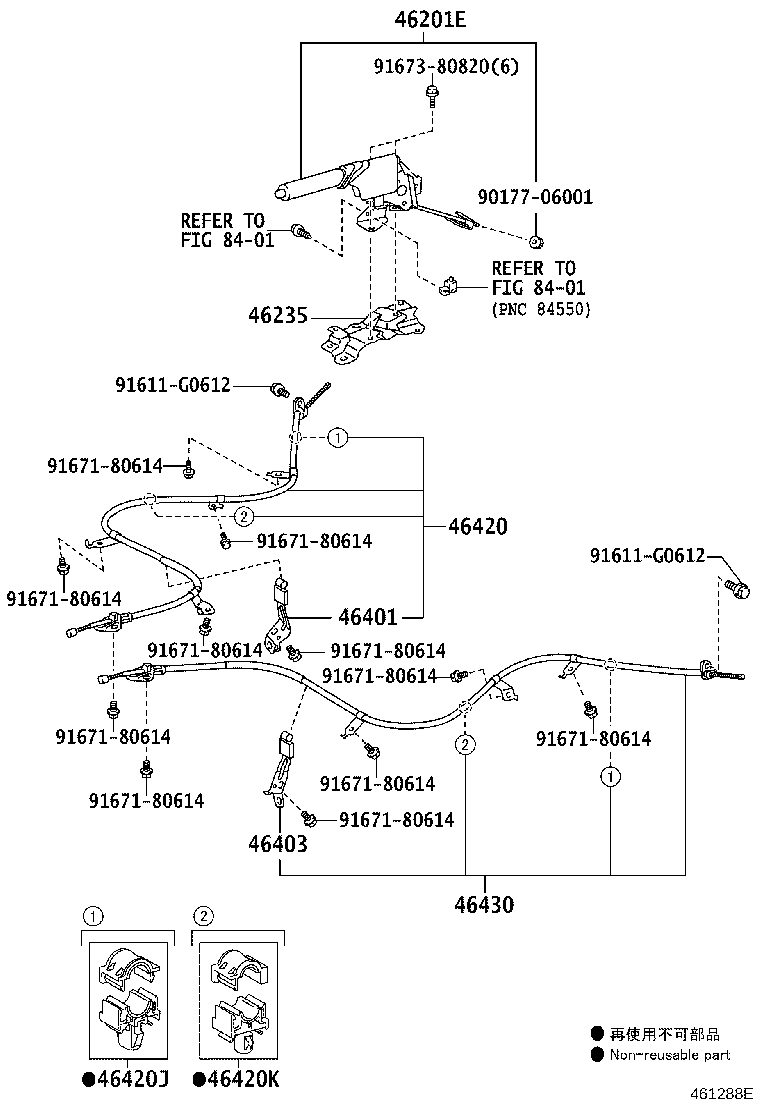

Toyota Corolla axio/fielder NZE164 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12540C0	NKE165,NRE160,NZE16#,ZRE162 BLACK,TRIM2#	04/2012 - 03/2015	1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-52050	NZE164	04/2012 - 03/2015	1
46401 - BRACKET SUB-ASSY, CABLE SUPPORT
46401-52020	NZE164	04/2012 - 03/2015	1
46403 - BRACKET SUB-ASSY, CABLE SUPPORT, LH
46403-52020	NZE164	04/2012 - 03/2015	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12800	NZE164	04/2012 - 03/2015	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	NKE165,NRE160,NZE16#,ZRE162	04/2012 - 03/2015	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-52020	NZE164	04/2012 - 03/2015	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12690	NZE164	04/2012 - 03/2015	1
Common parts
90177-06001
91611-G0612
91671-80614
91673-80820
Linked diagrams
8401

NZE164G-AWXEK (2012)
