NZE164G-AWXEK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

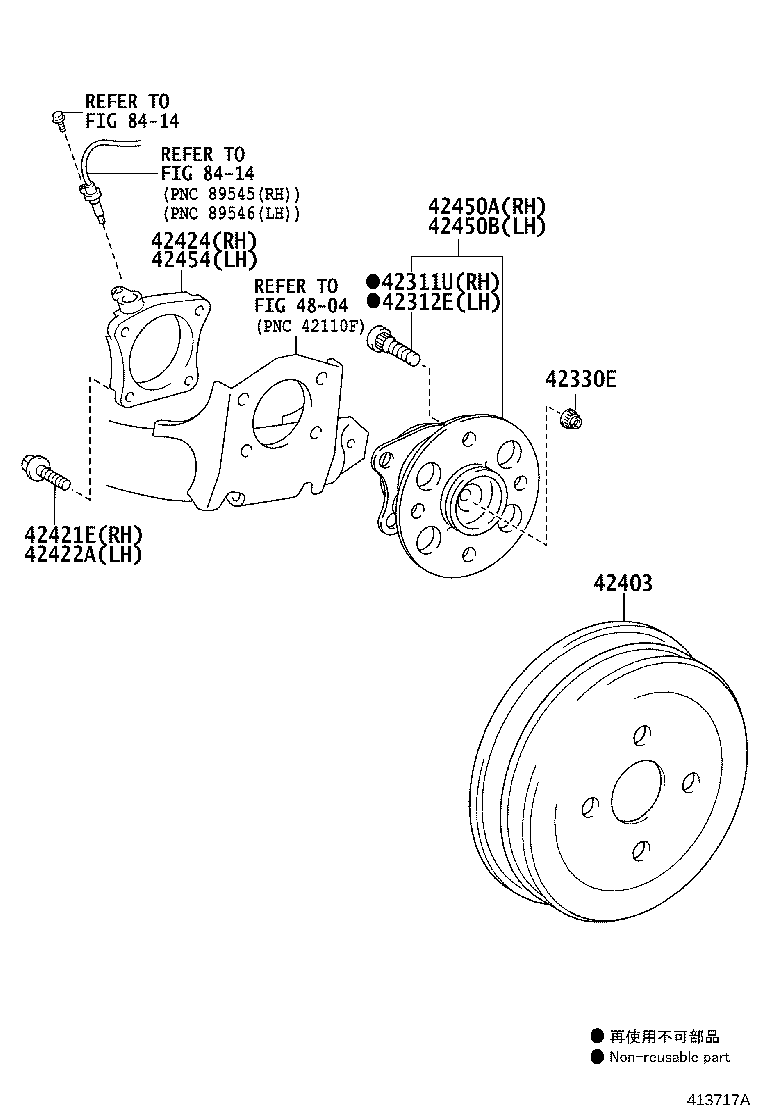

ILLUST NO. 1 OF 2(1204- )NZE164

Click highlighted areas on diagram

diagram 42311U 42312E 42330E 42403 42421E 42422A 42424 42450A 42450B 42454 4804 8414 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

NKE165,NRE160,NZE16#,ZRE162

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

NKE165,NRE160,NZE16#,ZRE162

 4
42330E - NUT(FOR REAR DRIVE SHAFT)
90177-22001

NZE164

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-52090

NZE161..5D;NKE165,NZE164,ZRE162

 2
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12351

NZE164

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12351

NZE164

 4
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-52020

NZE164

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-52060

NZE164

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-52060

NZE164

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-52020

NZE164

 1
Linked diagrams
4804
8414

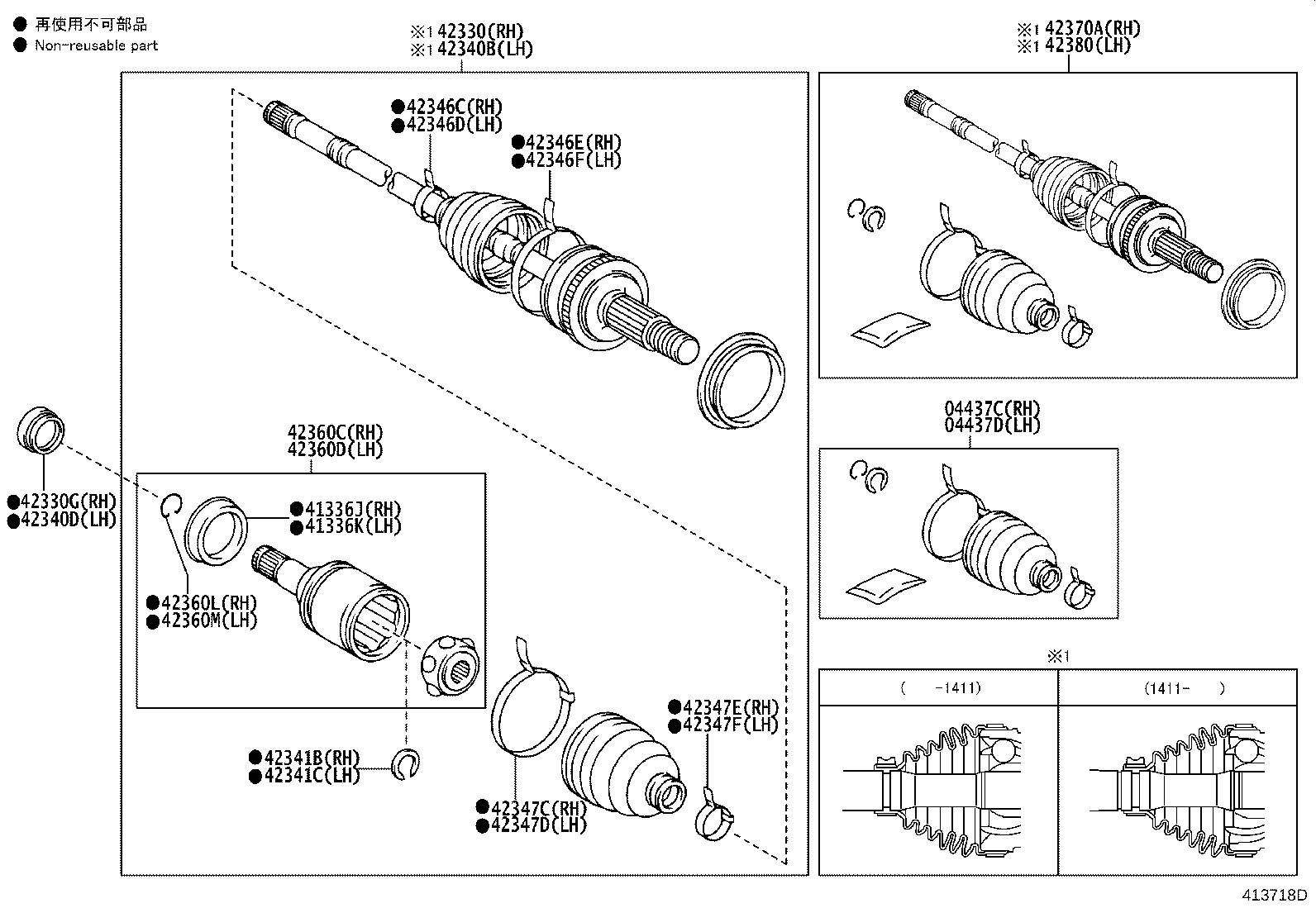

ILLUST NO. 2 OF 2(1204- )NZE164

Click highlighted areas on diagram

diagram 04437C 04437D 41336J 41336K 42330 42330G 42340B 42340D 42341B 42341C 42346C 42346D 42346E 42346F 42347C 42347D 42347E 42347F 42360C 42360D 42360L 42360M 42370A 42380
Part # Description Qty Price
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04439-52050

NZE164

 1
04439-52051

NZE164

 1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04439-52050

NZE164

 1
04439-52051

NZE164

 1
41336J - COVER, REAR DRIVE SHAFT DUST, RH
41336-28050

NZE164

 1
41336K - COVER, REAR DRIVE SHAFT DUST, LH
41336-28050

NZE164

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42340-52011

NZE164

 1
42340-52012

NZE164

 1
42340-52010

NZE164

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-37004

NZE164

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-52012

NZE164

 1
42340-52010

NZE164

 1
42340-52011

NZE164

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-37004

NZE164

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
43425-48040

NZE164

 1
90520-21020

NZE164

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
43425-48040

NZE164

 1
90520-21020

NZE164

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-52200

NZE164

内径=22.8

 1
42345-52270

NZE164

内径=24.3

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-52270

NZE164

内径=24.3

 1
42345-52200

NZE164

内径=22.8

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-12280

NZE164

 1
42345-52190

NZE164

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-52190

NZE164

 1
42345-12280

NZE164

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120

NZE164

内径=74.3

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120

NZE164

内径=74.3

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-12130

NZE164

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-12130

NZE164

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-52010

NZE164

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-52010

NZE164

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90520-19018

NZE164

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90520-19018

NZE164

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-59125

NZE164

 1
42370-59127

NZE164

 1
42370-59126

NZE164

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42370-59126

NZE164

 1
42370-59127

NZE164

 1
42370-59125

NZE164

 1
