NZE164G-AWXEK (2015)
Toyota Corolla Axio/Fielder

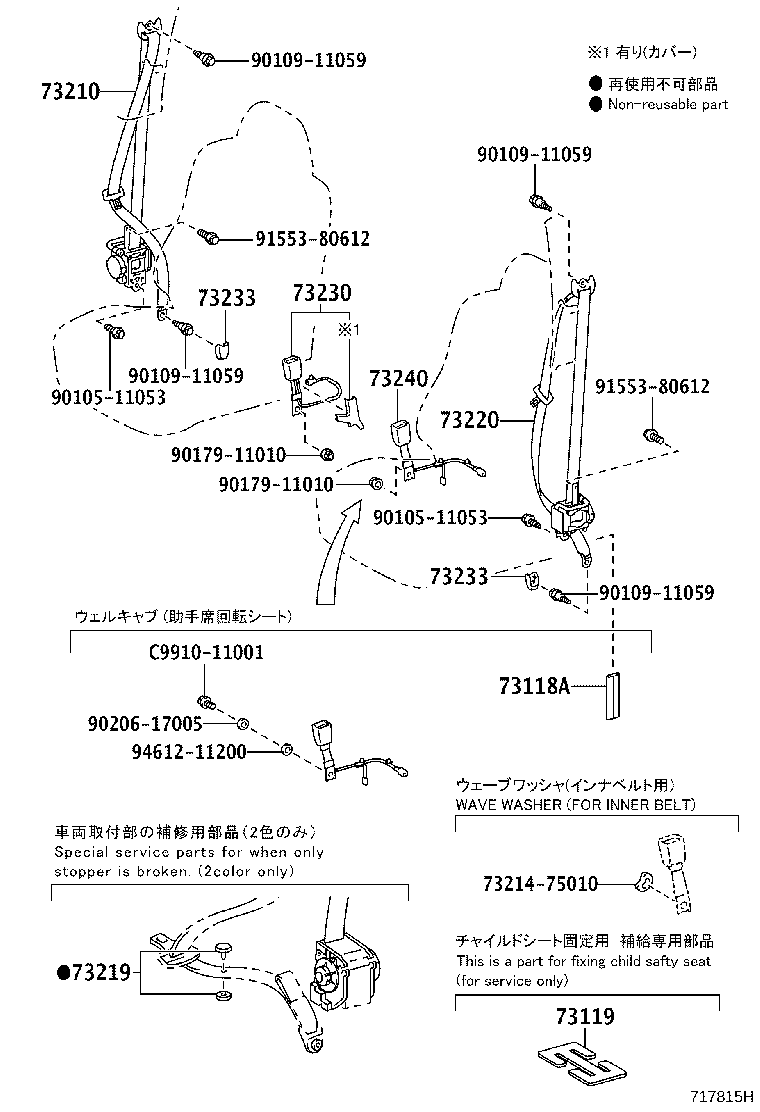

ILLUST NO. 1 OF 2(1204- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73118A - PROTECTOR, SEAT BELT WEBBING, LH | ||||
| 73118-12010 |
NKE165,NRE161,NZE164..G,HBDG,X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ) |
1 | ||
| 73118-12010 |
NKE165,NRE161,NZE164..G,HBDG,X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NKE165,NRE16#,NZE16#,ZRE162 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-12D10B2 |
NRE161,NZE164..5D..G LT.GRAY/BLACK,TRIM22,27 |
1 | ||
| 73210-12D10B2 |
NZE161;NRE16#,NZE164..X LT.GRAY/BLACK,TRIM2# |
1 | ||
| 73210-12D10C0 |
NRE161,NZE164,ZRE162..5D..(G,S) BLACK/BLACK,TRIM23,24,25 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NKE165,NRE16#,NZE16#,ZRE162 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NKE165,NRE16#,NZE16#,ZRE162 ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-12D10B2 |
NZE161;NKE165,NRE16#,NZE164..HBD,X LT.GRAY/BLACK,TRIM2# |
1 | ||
| 73220-12D10B2 |
NKE165,NRE161,NZE164..5D..(G,HBDG) LT.GRAY/BLACK,TRIM22,27 |
1 | ||
| 73220-12D10C0 |
NKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S) BLACK/BLACK,TRIM23,24,25 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12B80C0 |
NKE165,NRE16#,NZE16#,ZRE162 BLACK,TRIM2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
NKE165,NRE16#,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
NKE165,NRE16#,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
NKE165,NRE16#,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
NKE165,NRE16#,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-12340C0 |
NKE165,NRE16#,NZE16#,ZRE162 BLACK,TRIM2# |
1 | ||
| 73230-D1250C1 |
NKE165,NRE161,NZE164..G,HBDG,X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ),BLACK,TRIM2# |
1 | ||
| 73230-D1250C1 |
NKE165,NRE161,NZE164..G,HBDG,X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 91553-80612 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

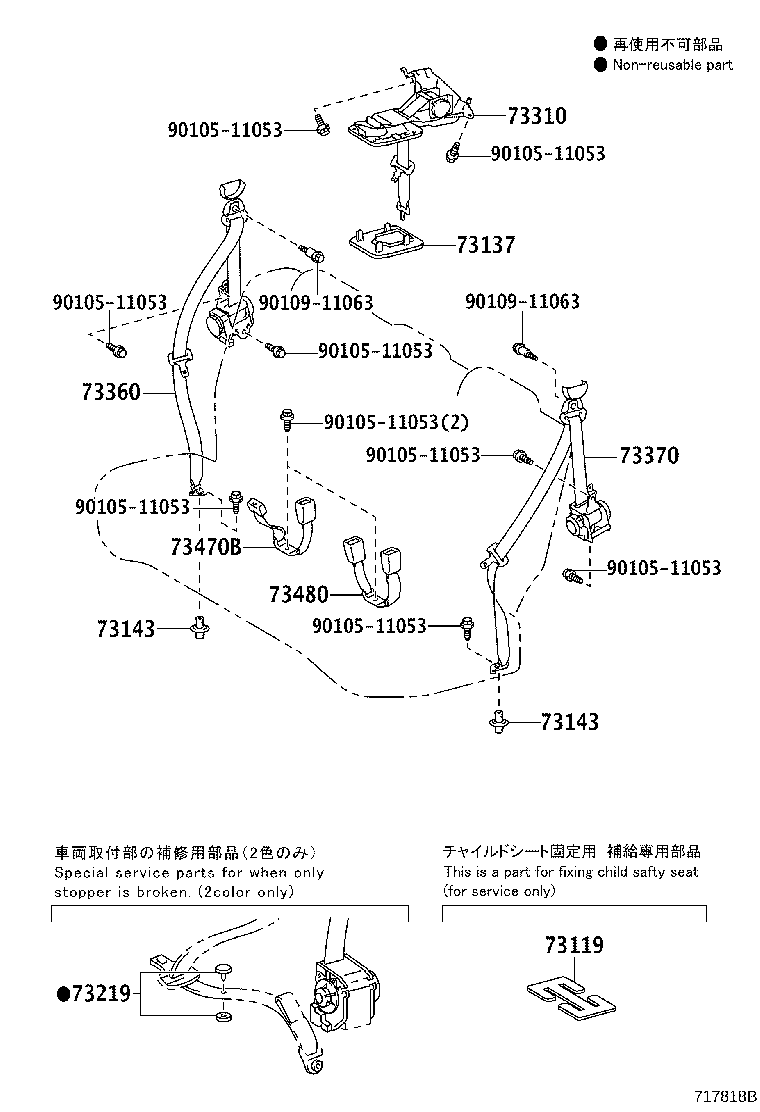

ILLUST NO. 2 OF 2(1204- )5D
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NKE165,NRE16#,NZE16#,ZRE162 |
1 | ||
| 73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73137-13020C0 |
NKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S) BLACK,TRIM23,24,25 |
1 | ||
| 73137-13020B0 |
NRE161,NZE164..5D..X;NKE165,NZE161..5D..(G,HBD,X) LT.GRAY,TRIM2# |
1 | ||
| 73137-13020B0 |
NKE165,NRE161,NZE164..5D..(G,HBDG) LT.GRAY,TRIM22,27 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52011 |
NKE165,NRE16#,NZE16#,ZRE162 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52011 |
NKE165,NRE16#,NZE16#,ZRE162 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NKE165,NRE16#,NZE16#,ZRE162 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NKE165,NRE16#,NZE16#,ZRE162 ﾌﾞﾗｯｸ |
1 | ||
| 73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH | ||||
| 73310-13100C0 |
NKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S) BLACK/BLACK,TRIM23,24,25 |
1 | ||
| 73310-13100B0 |
NRE161,NZE164..5D..X;NKE165,NZE161..5D..(G,HBD,X) LT.GRAY/BLACK,TRIM2# |
1 | ||
| 73310-13100B0 |
NKE165,NRE161,NZE164..5D..(G,HBDG) LT.GRAY/BLACK,TRIM22,27 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-13370B0 |
NRE161,NZE16#..5D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP),LT.GRAY,TRIM2# |
1 | ||
| 73360-13381B0 |
NKE165,NRE161,NZE164..5D..(G,HBDG) LT.GRAY/BLACK,TRIM22,27 |
1 | ||
| 73360-13381C0 |
NKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S) BLACK/BLACK,TRIM23,24,25 |
1 | ||
| 73360-13381B0 |
NRE161,NZE164..5D..X;NKE165,NZE161..5D..(G,HBD,X) LT.GRAY/BLACK,TRIM2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-13300B0 |
NRE161,NZE16#..5D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP),LT.GRAY,TRIM2# |
1 | ||
| 73370-13311C0 |
NKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S) BLACK/BLACK,TRIM23,24,25 |
1 | ||
| 73370-13311B0 |
NRE161,NZE164..5D..X;NKE165,NZE161..5D..(G,HBD,X) LT.GRAY/BLACK,TRIM2# |
1 | ||
| 73370-13311B0 |
NKE165,NRE161,NZE164..5D..(G,HBDG) LT.GRAY/BLACK,TRIM22,27 |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-13150C0 |
NRE161,NZE16#,ZRE162..5D BLACK/BLACK,TRIM2# |
1 | ||
| 73470-13140C0 |
NRE161,NZE16#..5D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP),BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-12400C0 |
NRE16#,NZE16#,ZRE162 BLACK/BLACK,TRIM2# |
1 | ||
| 73480-12380C0 |
NRE16#,NZE16#..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90109-11063 | ||||
