NZE164G-AWXEK (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1204- )NZE164

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-52860

NZE164

 1
04428-52861

NZE164

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12A00

NZE164,ZRE162

 1
04438-12A01

NZE164,ZRE162

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060

NKE165,NZE164,ZRE162

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12120

NZE164,ZRE162

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

NZE164,ZRE162

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-52271

NZE164

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

NKE165,NZE164,ZRE162

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35068

NKE165,NZE164,ZRE162

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52260

NKE165,NRE16#,NZE16#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52250

NKE165,NRE16#,NZE16#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

NZE164,ZRE162

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

NZE164,ZRE162

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-59786

NZE164

 1
43470-59785

NZE164

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12200

NZE164,ZRE162

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NRE161,NZE164,ZRE162

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NRE161,NZE164,ZRE162

 2

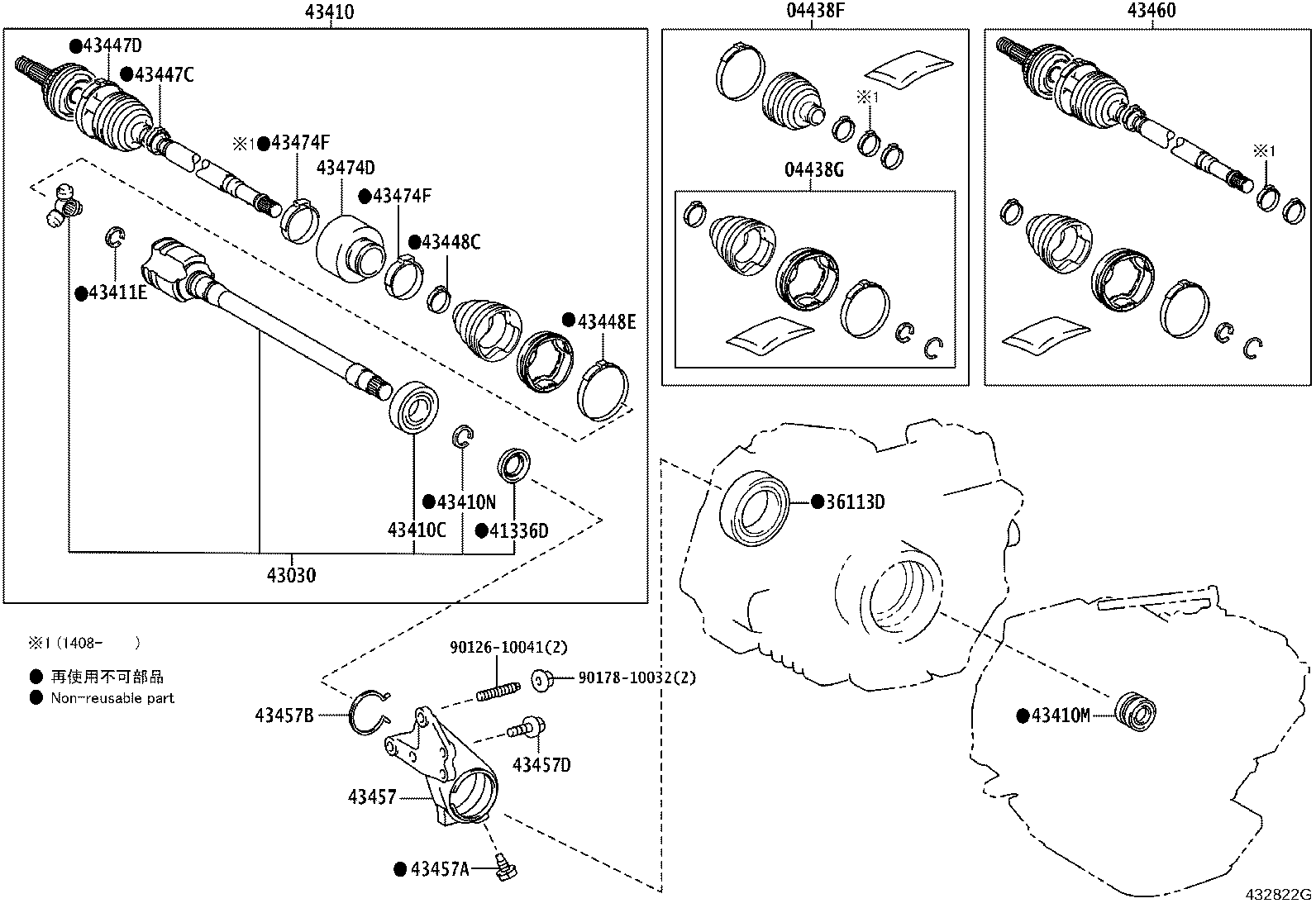

ILLUST NO. 1 OF 2(1204- )NZE164

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F 9012610041 9017810032
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-12751

NZE164

 1
04427-12752

NZE164

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12411

NZE164

 1
04437-12410

NZE164

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

NZE164

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

NZE164

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-12131

NZE164

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-52260

NZE164

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

NZE164

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

NZE164

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

NZE164

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

NZE164,ZRE162

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52260

NKE165,NRE16#,NZE16#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52250

NKE165,NRE16#,NZE16#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

NZE164,ZRE162

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

NZE164,ZRE162

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-52010

NZE164

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

NZE164

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

NZE164

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

NZE164

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-59668

NZE164

 1
43470-59667

NZE164

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-12160

NZE164

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NKE165,NRE160,NZE16#

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NKE165,NRE160,NZE16#

 2
Common parts
90126-10041
90178-10032
