NZE164-AEXNK (2012)
Toyota Corolla Axio/Fielder
Production
Apr 2012
-
Mar 2015
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1204-1503)4D

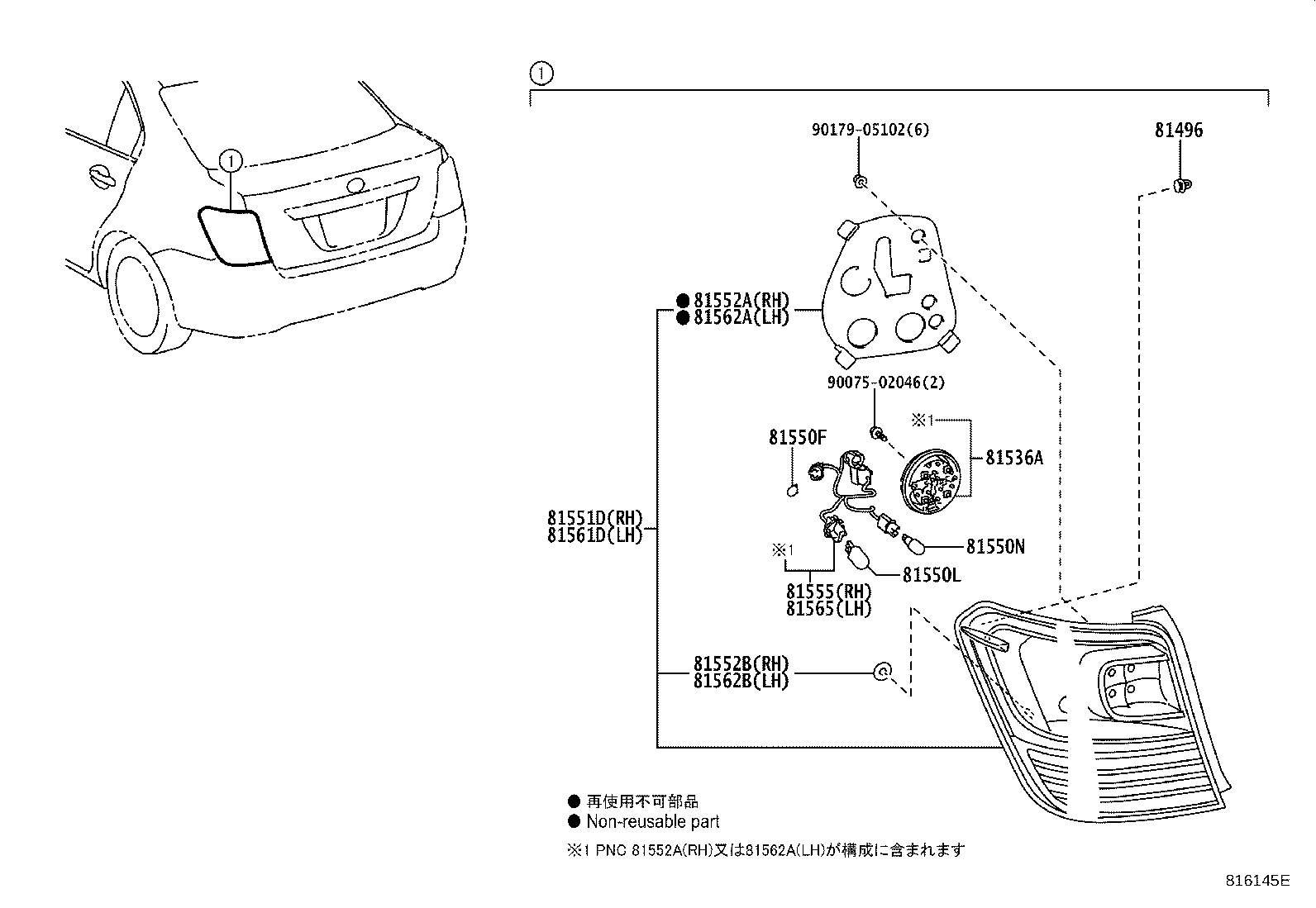

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 81536A - LED, REAR COMBINATION LAMP | ||||
| 81536-12C60 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
NKE165,NRE160,NZE16#,ZRE162 12V 5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NKE165,NRE160,NZE16#,ZRE162 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NKE165,NRE160,NZE16#,ZRE162 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-12C60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-12C60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 81552B - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-12A00 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12C60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-12C60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81552-12C60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 81562B - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-12A00 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-12C60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| Common parts | ||||
| 90075-02046 | ||||
| 90179-05102 | ||||
