NZE164-AEXNK (2012)
Toyota Corolla Axio/Fielder

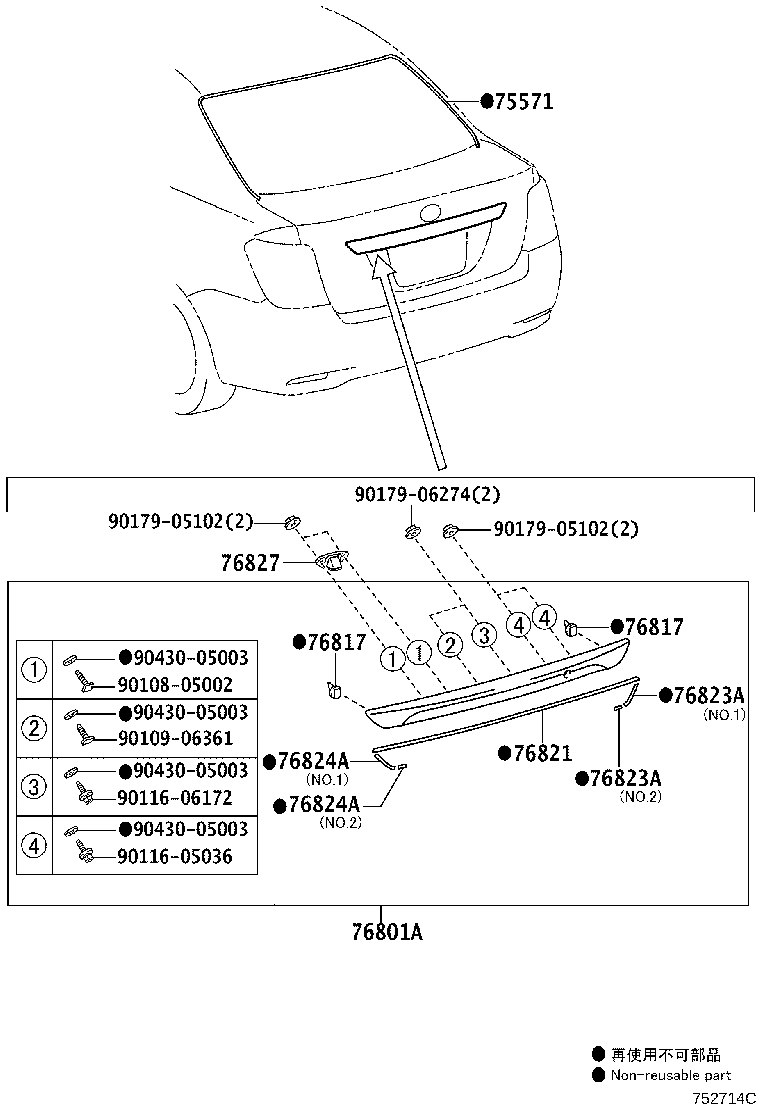

ILLUST NO. 1 OF 2(1204- )4D
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12A60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-12C70 |
NRE160,NZE16#..4D..X 塗装不要,ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ |
1 | ||
| 76801-12C50 |
NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X) ﾒｯｷ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12090 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12090 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-12320 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH | ||||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH | ||||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH | ||||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH | ||||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76827 - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-12070 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| Common parts | ||||
| 90108-05002 | ||||
| 90109-06361 | ||||
| 90116-05036 | ||||
| 90116-06172 | ||||
| 90179-05102 | ||||
| 90179-06274 | ||||
| 90430-05003 | ||||
ILLUST NO. 2 OF 2(1204-1503)
ｼﾞｺｳｼｷﾅﾝﾊﾞｰﾌﾟﾚｰﾄﾀｲｵｳﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75018 - FRAME SUB-ASSY, REAR LICENSE PLATE | ||||
| 75010-48020 |
NKE165,NRE160,NZE16#,ZRE162 ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−有り(字光式対応) |
1 | ||

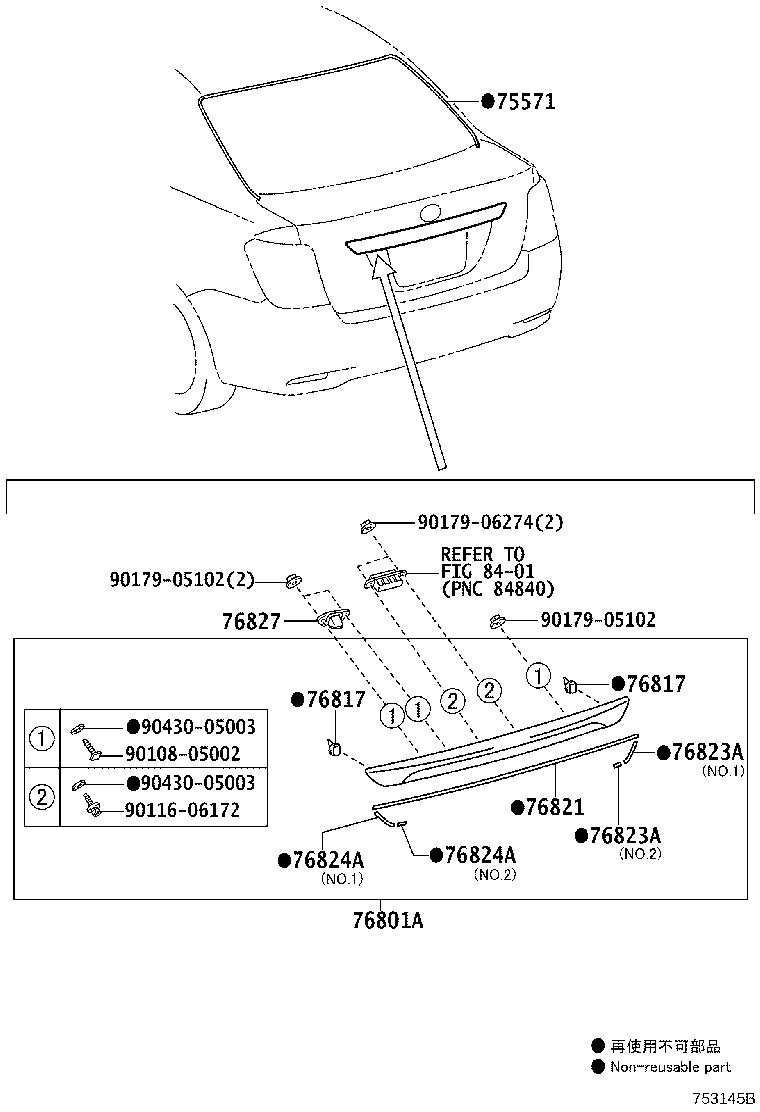

ILLUST NO. 1 OF 2(1204- )SED
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12A60 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-12C70 |
NRE160,NZE16#..4D..X 塗装不要,ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ |
1 | ||
| 76801-12C50 |
NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X) ﾒｯｷ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12090 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12090 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-12320 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH | ||||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH | ||||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH | ||||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH | ||||
| 76823-12050 |
NKE165,NRE160,NZE16#..4D NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 76824-12050 |
NKE165,NRE160,NZE16#..4D NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 76827 - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-12070 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| Common parts | ||||
| 90108-05002 | ||||
| 90116-06172 | ||||
| 90179-05102 | ||||
| 90179-06274 | ||||
| 90430-05003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
