NZE164-AEXNK (2012)
Toyota Corolla Axio/Fielder
(1204- )4D..G,X

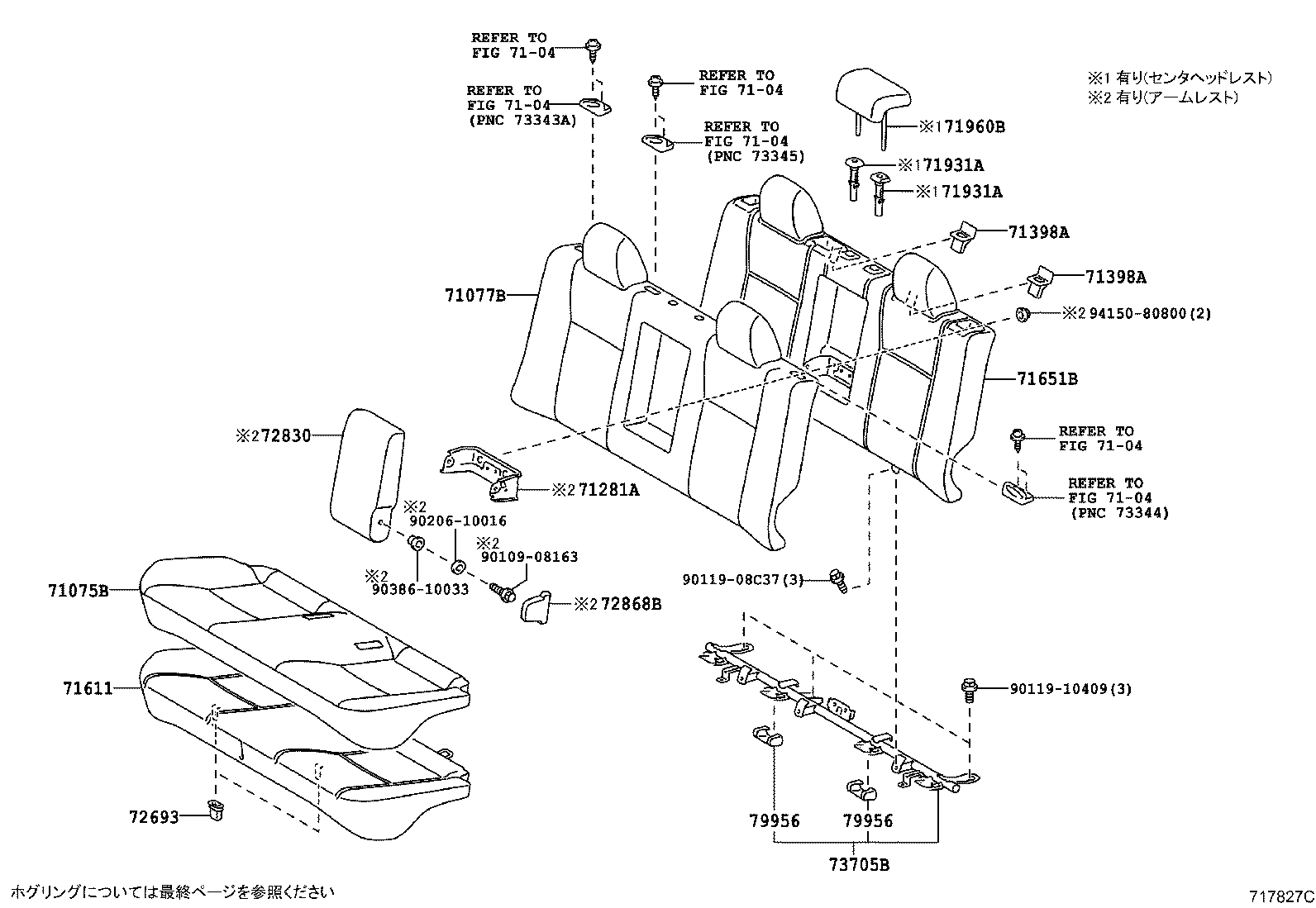

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-12G40A0 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM20 |
1 | ||
| 71075-12G40A0 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71075-12G40A0 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71075-12G40A0 |
NZE164..4D..X IVORY,TRIM20 |
1 | ||
| 71075-12G40B1 |
NZE164..4D..X LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40B1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40A0 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ),IVORY,TRIM20 |
1 | ||
| 71075-12G40B1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40B1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40B1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40A1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS),IVORY,TRIM20 |
1 | ||
| 71075-12G40A1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71075-12G40B2 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40A1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS),IVORY,TRIM20 |
1 | ||
| 71075-12G40B2 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40B2 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40B2 |
NZE164..4D..X LT.GRAY,TRIM21 |
1 | ||
| 71075-12G40A1 |
NZE164..4D..X IVORY,TRIM20 |
1 | ||
| 71075-12G40A1 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71075-12G40B2 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71075-12G41B3 |
NZE164..4D..X LT.GRAY,TRIM21 |
1 | ||
| 71075-12G41A2 |
NZE164..4D..X BEIGE,TRIM20 |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-12Q31B3 |
NRE160,NZE16#..4D..X LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q31A3 |
NRE160,NZE16#..4D..X IVORY,TRIM20 |
1 | ||
| 71077-12Q31B3 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q31A3 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71077-12Q31A3 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71077-12Q91B3 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q31B3 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q91A3 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71077-12Q91B3 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q91A3 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,IVORY,TRIM20 |
1 | ||
| 71077-12Q31A4 |
NRE160,NZE16#..4D..X IVORY,TRIM20 |
1 | ||
| 71077-12Q31A4 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71077-12Q31B4 |
NRE160,NZE16#..4D..X LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q91A4 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71077-12Q91B4 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q31A4 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),IVORY,TRIM20 |
1 | ||
| 71077-12Q91B4 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q91A4 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,IVORY,TRIM20 |
1 | ||
| 71077-12Q91B4 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q31B4 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q91A4 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS),IVORY,TRIM20 |
1 | ||
| 71077-12Q32B6 |
NRE160,NZE16#..4D..X LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q31B4 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q92A6 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BEIGE,TRIM20 |
1 | ||
| 71077-12Q92B6 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS),LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q32A6 |
NRE160,NZE16#..4D..X BEIGE,TRIM20 |
1 | ||
| 71077-12Q92B6 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM21 |
1 | ||
| 71077-12Q92A6 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS),BEIGE,TRIM20 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C0 |
NRE160,NZE16#..4D..(G,X) BLACK,TRIM2# |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C0 |
NRE160,NZE16#..4D..(G,X) BLACK,TRIM2# |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-12290 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 71503-12290 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 71503-12290 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ) |
1 | ||
| 71503-12290 |
NZE164..4D |
1 | ||
| 71503-12290 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS) |
1 | ||
| 71503-12290 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 71503-12290 |
NZE164..4D..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-12331 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 71507-12351 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71507-12331 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 71507-12351 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS) |
1 | ||
| 71507-12331 |
NRE160,NZE16#..4D..X |
1 | ||
| 71507-12351 |
NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020A0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM20 |
3 | ||
| 71930-52030B9 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.CHARCOAL,TRIM21 |
3 | ||
| 71931-42020P0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.CHARCOAL,TRIM21 |
3 | ||
| 71930-52030A0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM20 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020A0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM20 |
3 | ||
| 71930-52030B9 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.CHARCOAL,TRIM21 |
3 | ||
| 71931-42020P0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.CHARCOAL,TRIM21 |
3 | ||
| 71930-52030A0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM20 |
3 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-12850B1 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),MID GRAY,TRIM21 |
1 | ||
| 71960-12850A0 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),BEIGE,TRIM20 |
1 | ||
| 71960-12850B1 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS& ｻｲﾄﾞ=*DRSのみ & *CUSA),MID GRAY,TRIM21 |
1 | ||
| 71960-12850B1 |
NKE165,NRE160,NZE16#..4D..(HBD,X) MID GRAY,TRIM21 |
1 | ||
| 71960-12850A0 |
NKE165,NRE160,NZE16#..4D..(HBD,X) BEIGE,TRIM20 |
1 | ||
| 71960-12850A0 |
NZE16#..4D..CVT..X ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS& *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),BEIGE,TRIM20 |
1 | ||
| 71960-12860B4 |
NKE165,NRE160,NZE16#..4D..(HBD,X) DK.GRAY,TRIM21 |
1 | ||
| 71960-12860A2 |
NKE165,NRE160,NZE16#..4D..(HBD,X) BEIGE,TRIM20 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-13040 |
NZE164..4D..(G,X) |
1 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79957-12010 |
NRE160,NZE16#,ZRE162 |
2 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79957-12010 |
NRE160,NZE16#,ZRE162 |
2 | ||
| Common parts | ||||
| 90109-08163 | ||||
| 90119-08C37 | ||||
| 90119-10409 | ||||
| 90206-10016 | ||||
| 90386-10033 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1204- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
