Toyota Corolla axio/fielder NZE164 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-16070	NKE165,NRE160,NZE16#..4D	04/2012 - 03/2015	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-12D40	NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)	04/2012 - 03/2015	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09116	NKE165,NRE160,NZE16#..4D	04/2012 - 03/2015	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12590	NKE165,NRE160,NZE16#..4D	04/2012 - 03/2015	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-12270	NKE165,NRE160,NZE16#..4D TYPE A:ｲﾗｽﾄ参照	04/2012 - 09/2014	1
64510-12291	NKE165,NRE160,NZE16#..4D TYPE C:ｲﾗｽﾄ参照	10/2014 - 03/2015	1
64510-12280	NKE165,NRE160,NZE16#..4D TYPE B:ｲﾗｽﾄ参照	04/2012 - 09/2014	1
64510-12281	NKE165,NRE160,NZE16#..4D TYPE B:ｲﾗｽﾄ参照	10/2014 - 03/2015	1
64510-12271	NKE165,NRE160,NZE16#..4D TYPE A:ｲﾗｽﾄ参照	10/2014 - 03/2015	1
64510-12290	NKE165,NRE160,NZE16#..4D TYPE C:ｲﾗｽﾄ参照	04/2012 - 09/2014	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-12280	NKE165,NRE160,NZE16#..4D TYPE B:ｲﾗｽﾄ参照	04/2012 - 09/2014	1
64510-12270	NKE165,NRE160,NZE16#..4D TYPE A:ｲﾗｽﾄ参照	04/2012 - 09/2014	1
64510-12290	NKE165,NRE160,NZE16#..4D TYPE C:ｲﾗｽﾄ参照	04/2012 - 09/2014	1
64510-12271	NKE165,NRE160,NZE16#..4D TYPE A:ｲﾗｽﾄ参照	10/2014 - 03/2015	1
64510-12291	NKE165,NRE160,NZE16#..4D TYPE C:ｲﾗｽﾄ参照	10/2014 - 03/2015	1
64510-12281	NKE165,NRE160,NZE16#..4D TYPE B:ｲﾗｽﾄ参照	10/2014 - 03/2015	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12780	NKE165,NRE160,NZE16#..4D	05/2014 - 03/2015	1
64531-12870	NKE165,NRE160,NZE16#..4D	04/2012 - 04/2014	1
64531-12880	NKE165,NRE160,NZE16#..4D ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−有り(字光式対応)	04/2012 - 03/2015	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12850	NKE165,NRE160,NZE16#..4D	04/2012 - 04/2014	1
64532-12870	NKE165,NRE160,NZE16#..4D	05/2014 - 03/2015	1
64532-12860	NKE165,NRE160,NZE16#..4D ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−有り(字光式対応)	04/2012 - 03/2015	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12A10	NRE160,NZE16#..4D..X ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ﾗｹﾞ−ｼﾞﾄﾞｱｵｰﾌﾟﾅｽｲｯﾁ−無し	04/2012 - 03/2015	1
64607-12A10	NKE165,NRE160,NZE16#..4D	04/2012 - 03/2015	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12451	NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)	11/2012 - 12/2013	1
64610-12450	NRE160,NZE16#..4D..(G,X)	04/2012 - 10/2012	1
64610-12452	NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)	01/2014 - 03/2015	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12451	NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)	11/2012 - 12/2013	1
64610-12450	NRE160,NZE16#..4D..(G,X)	04/2012 - 10/2012	1
64610-12452	NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)	01/2014 - 03/2015	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33030	NKE165,NRE160,NZE16#..4D	04/2012 - 03/2015	1
75129B - CUSHION, REAR LICENCE PLATE
75129-13020	NRE160,NZE16#..4D	04/2012 - 03/2013	2
75129-30010	NKE165,NRE160,NZE16#..4D	04/2013 - 03/2015	2
Common parts
90105-06120
90105-06168
90119-06939
90148-80066
90469-06005

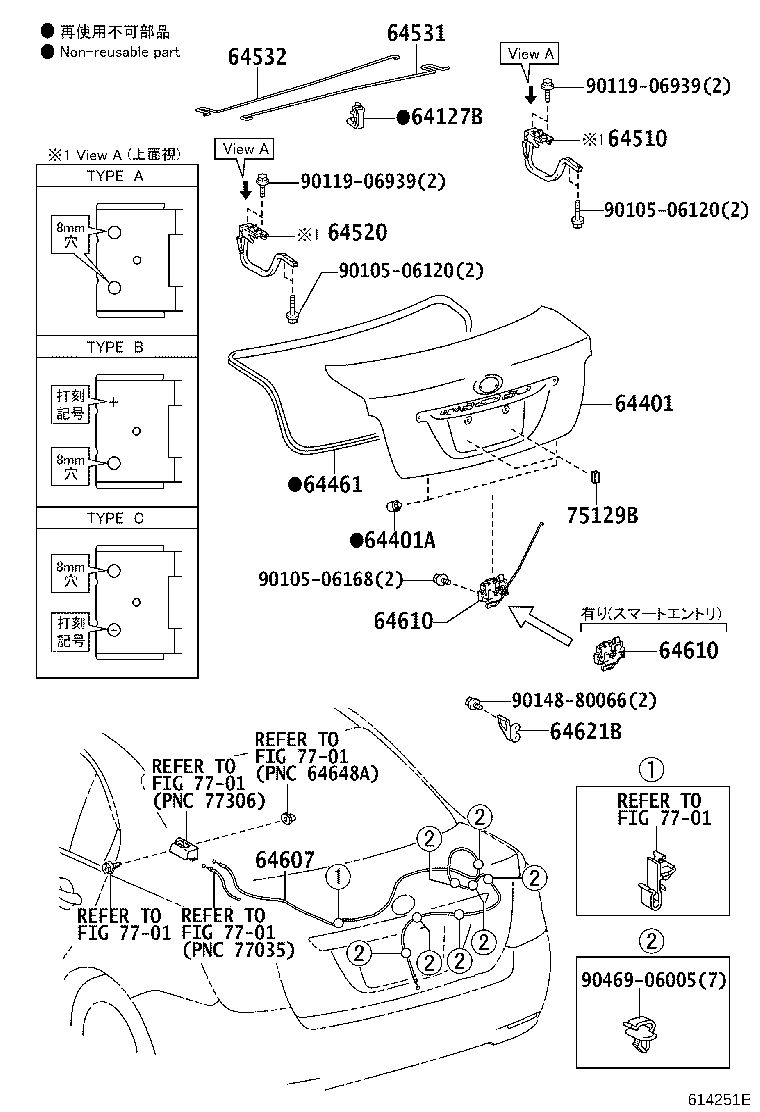

Linked diagrams
7701

NZE164-AEXNK (2012)

(1204- )4D
