NZE164-AEXNK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )4D

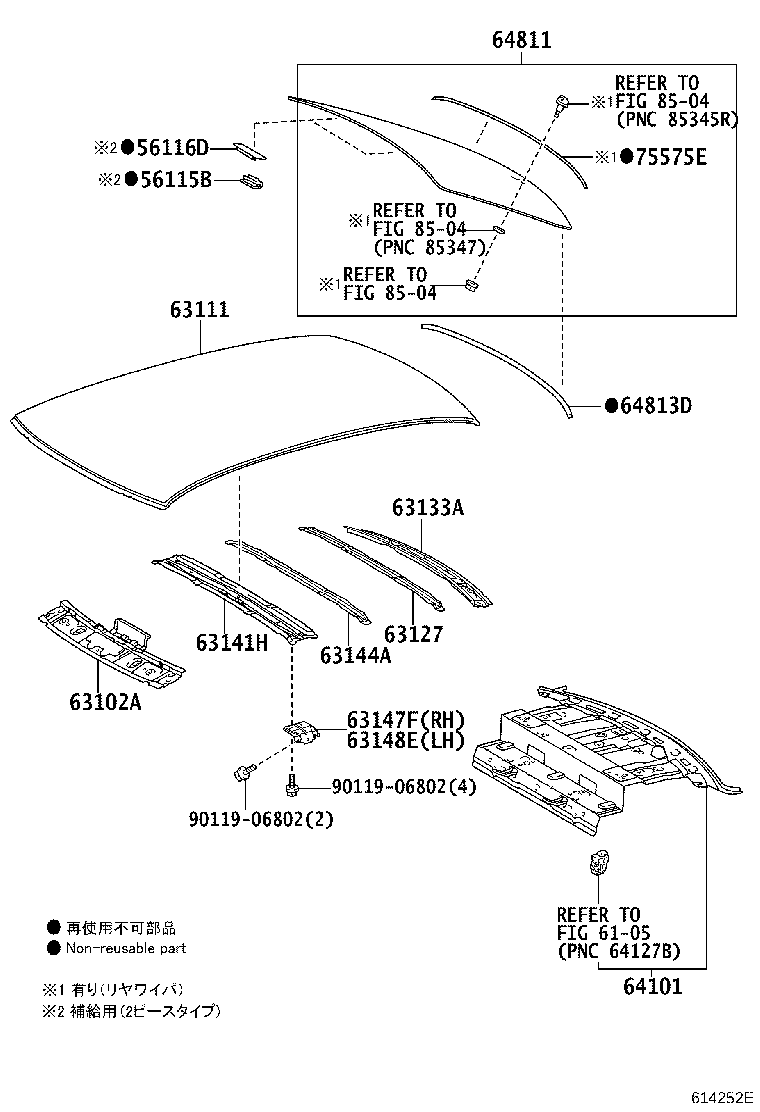

Click highlighted areas on diagram

diagram 56115B 56116D 6105 63102A 63111 63127 63133A 63141H 63144A 63147F 63148E 64101 64811 64813D 75575E 8504 8504 8504 9011906802 9011906802
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100

NKE165,NRE160,NZE16#..4D

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

NKE165,NRE160,NZE16#..4D

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12290

NKE165,NRE160,NZE16#,ZRE162

 1
63111 - PANEL, ROOF
63111-12A10

NKE165,NRE160,NZE16#..4D

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-12030

NKE165,NRE160,NZE16#..4D

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12340

NKE165,NRE160,NZE16#..4D

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-12320

NKE165,NRE160,NZE16#,ZRE162

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12130

NKE165,NRE160,NZE16#..4D

 1
63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH
63147-12050

NKE165,NRE160,NZE16#,ZRE162

 1
63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH
63147-12050

NKE165,NRE160,NZE16#,ZRE162

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12880

NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)

 1
64101-12890

NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り(間欠ﾘﾔﾜｲﾊﾟ)

 1
64811 - GLASS, BACK WINDOW
64811-12B20

NRE160,NZE16#..4D..(G,X)

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り(間欠ﾘﾔﾜｲﾊﾟ)

 1
64811-12B10

NRE160,NZE16#..4D..(G,X)

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

NKE165,NRE160,NZE16#..4D

 1
75575E - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12460

NKE165,NRE160,NZE16#..4D

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り(間欠ﾘﾔﾜｲﾊﾟ)

 1
Common parts
90119-06802
Linked diagrams
6105
8504
