NZE161G-AWMEK (2017)

Toyota Corolla Axio/Fielder

Production Oct 2017 - Aug 2019
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

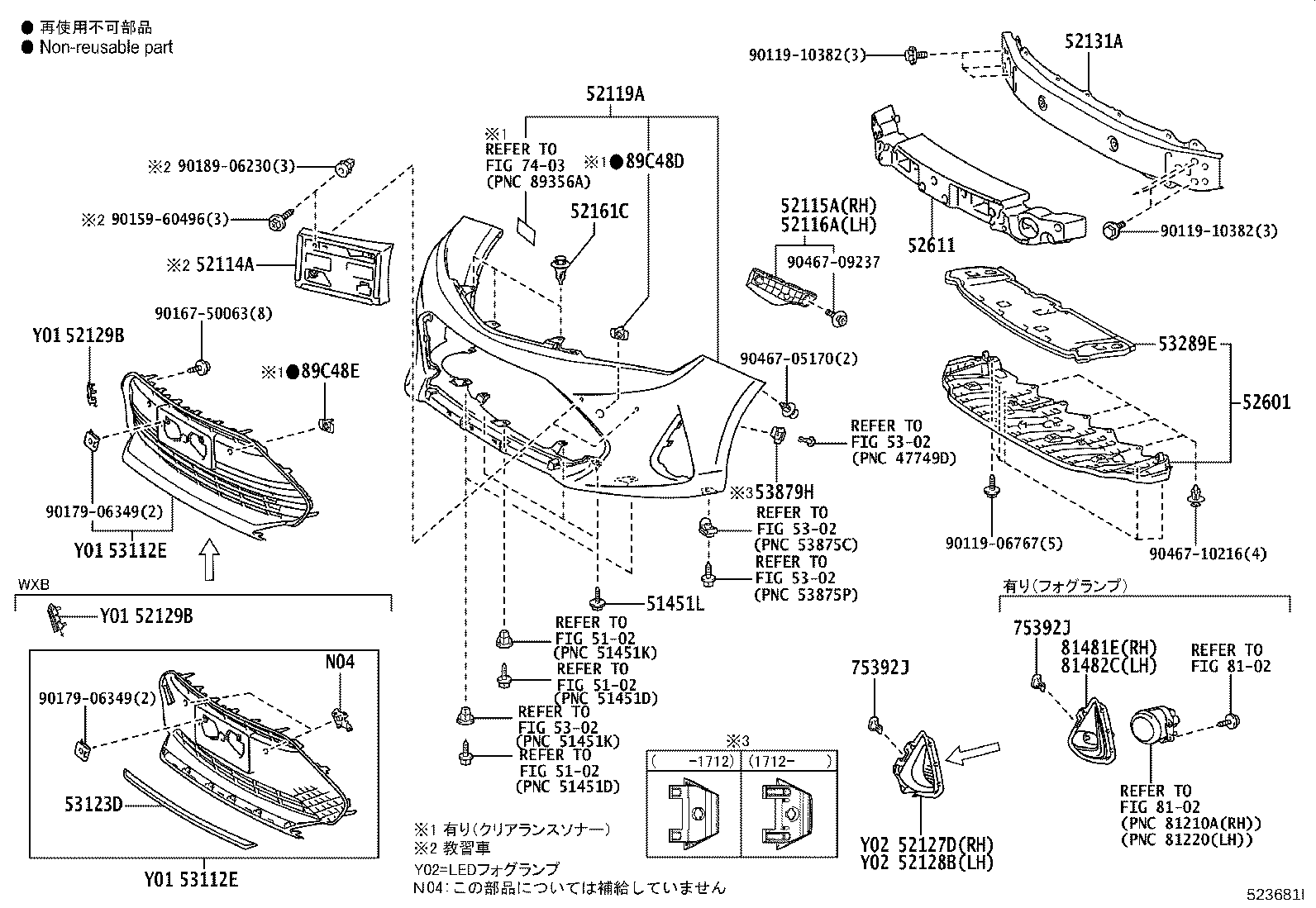

Click highlighted areas on diagram

diagram 5102 5102 5102 51451L 52114A 52115A 52116A 52119A 52127D 52128B 52129B 52129B 52131A 52161C 52601 52611 5302 5302 5302 5302 53112E 53112E 53123D 53289E 53879H 7403 75392J 75392J 8102 8102 81481E 81482C 89C48D 89C48E 9011906767 9011910382 9011910382 9015960496 9016750063 9017906349 9017906349 9018906230 9046705170 9046709237 9046710216
Part # Description Qty Price
51451L - BOLT, NO.1
90119-06767

NKE165,NRE16#,NZE16#,ZRE162

 3
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12510

NKE165,NRE16#,NZE16#,ZRE162

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12460

NKE165,NRE16#,NZE16#,ZRE162

 1
52119A - COVER, FRONT BUMPER
52119-12G40A1

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

WHITE PEARL CS.,070

 1
52119-12G40C0

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

BLACK MC.,209

 1
52119-12G40D1

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

COOL BORDEAUX GF.,3T9

 1
52119-12G40B0

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

SILVER ME.,1F7

 1
52119-12G40A0

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

SUPER WHITE 2,040

 1
52119-12G40J0

NKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)

BLUE ME.,8T7

 1
52119-12G40E0

NKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)

ORANGE ME.,4R8

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12410

NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12410

NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-12160

NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-12160

NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250

NRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NKE165,NRE16#,NZE16#,ZRE162

 3
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-12320

NRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12430

NKE165,NRE16#,NZE16#,ZRE162

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-12500

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-12500

NZE161,ZRE162..G,S;NKE165,NRE161,NZE164..5D..(G,HBDG)

 1
53289E - COVER, RADIATOR SUPPORT OPENING
53289-12070

NRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X

 1
53879H - RETAINER, FRONT FENDER LINER
53879-30060

NKE165,NRE16#,NZE16#,ZRE162

 2
53879-30050

NKE165,NRE16#,NZE16#,ZRE162

 2
75392J - RETAINER, OUTSIDE MOULDING
75392-35200

NKE165,NRE16#,NZE16#,ZRE162

 2
75392J - RETAINER, OUTSIDE MOULDING
75392-35200

NKE165,NRE16#,NZE16#,ZRE162

 2
81481E - COVER, FOG LAMP, RH
52127-12440

NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81482C - COVER, FOG LAMP, LH
52128-12440

NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
Common parts
90119-06767
90119-10382
90159-60496
90167-50063
90179-06349
90189-06230
90467-05170
90467-09237
90467-10216
Linked diagrams
5102
5302
7403
8102
