NZE161G-AWMEK (2017)

Toyota Corolla Axio/Fielder

Production Oct 2017 - Aug 2019
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )1NZFE..NZE161

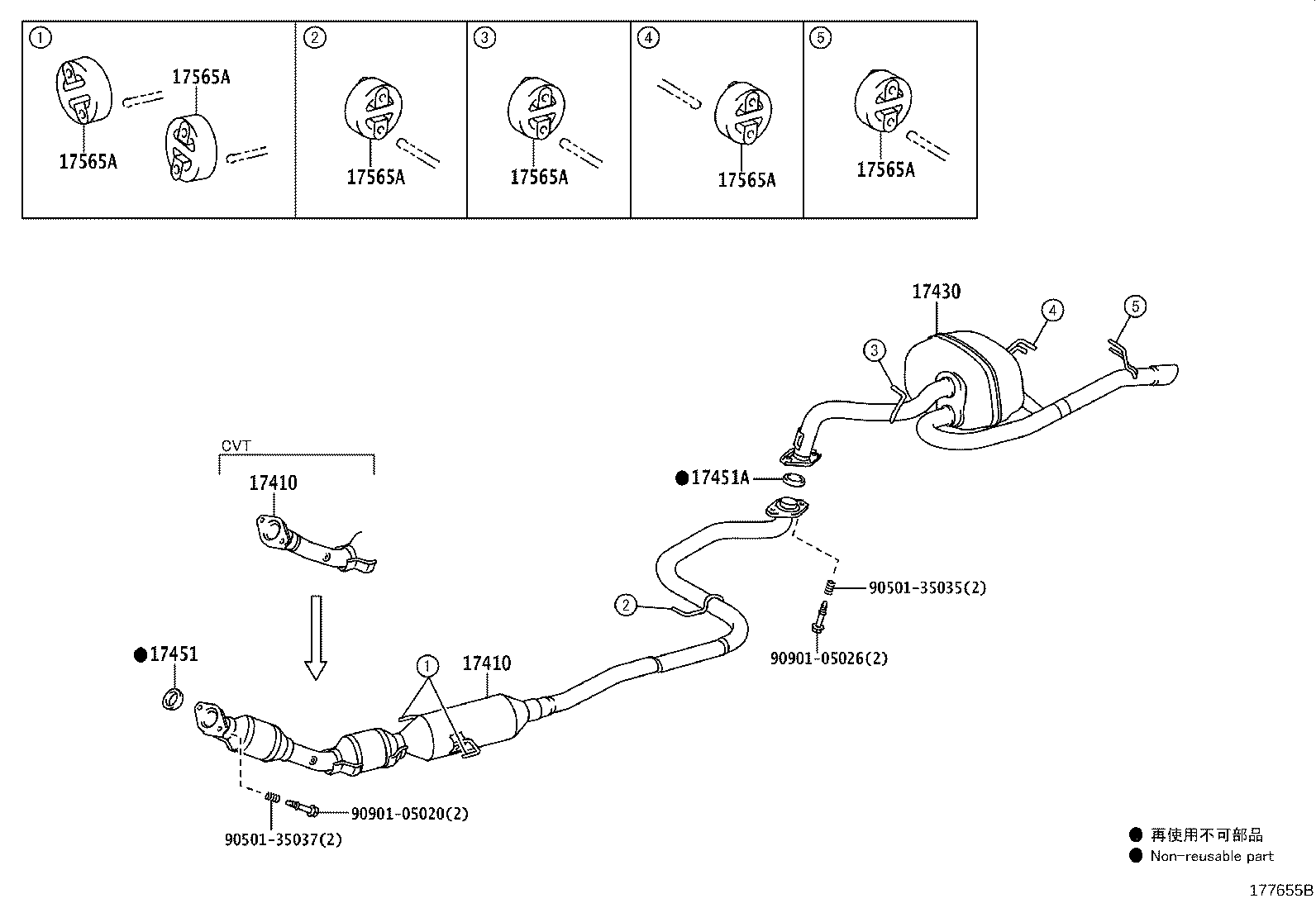

Click highlighted areas on diagram

diagram 17410 17410 17430 17451 17451A 17565A 17565A 17565A 17565A 17565A 17565A 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21A00

1NZFE,2NRFKE..NRE161,NZE161..G

 1
17451 - GASKET, EXHAUST PIPE
17451-21070

1NZFE,2NRFKE..NRE161,NZE16#..G;1NZFXE,1NRFE..NKE165,NRE160..HBDG,X

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZ#,2NRFKE,2ZRFAE..NKE165,NRE161,NZE161,ZRE162..G,HBDG,S

 6
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
