NZE161G-AWMEK (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )5F

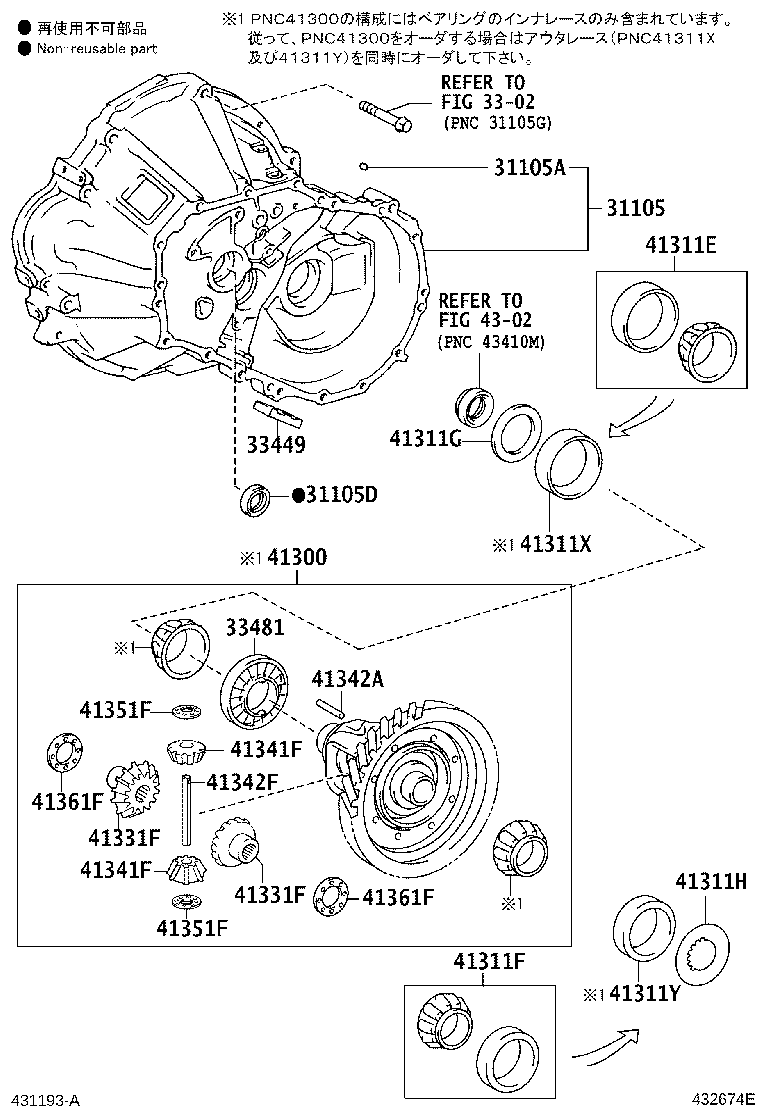

Click highlighted areas on diagram

C51

diagram 31105 31105A 31105D 3302 33449 33481 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-52060

NZE161

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NZE161

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028

NZE161

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NZE161

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-12040

NZE161

歯数=35,ﾏｰｸ 35X29−31

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-52150

NZE161

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

NZE161

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

NZE161

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NZE161

厚さ=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41015

NZE161

厚さ=2.15,ﾏｰｸ BB

 1
90564-41017

NZE161

厚さ=2.25,ﾏｰｸ DD

 1
90564-41020

NZE161

厚さ=2.40,ﾏｰｸ GG

 1
90564-41021

NZE161

厚さ=2.45,ﾏｰｸ HH

 1
90564-41019

NZE161

厚さ=2.35,ﾏｰｸ FF

 1
90564-41016

NZE161

厚さ=2.20,ﾏｰｸ CC

 1
90564-41023

NZE161

厚さ=2.55,ﾏｰｸ KK

 1
90564-41024

NZE161

厚さ=2.60,ﾏｰｸ LL

 1
90564-41018

NZE161

厚さ=2.30,ﾏｰｸ EE

 1
90564-41022

NZE161

厚さ=2.50,ﾏｰｸ JJ

 1
90564-41025

NZE161

厚さ=2.65,ﾏｰｸ MM

 1
90564-41027

NZE161

厚さ=2.75,ﾏｰｸ PP

 1
90564-41014

NZE161

厚さ=2.10,ﾏｰｸ AA

 1
90564-41029

NZE161

厚さ=2.85,ﾏｰｸ RR

 1
90564-41028

NZE161

厚さ=2.80,ﾏｰｸ QQ

 1
90564-41031

NZE161

厚さ=2.95,ﾏｰｸ TT

 1
90564-41030

NZE161

厚さ=2.90,ﾏｰｸ SS

 1
90564-41032

NZE161

厚さ=3.00,ﾏｰｸ UU

 1
90564-41026

NZE161

厚さ=2.70,ﾏｰｸ NN

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-38005

NZE161

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90368-38011

NZE161

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NZE161

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NZE161

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NZE161

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NZE161

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NZE161

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

NZE161

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NZE161

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NZE161

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NZE161

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

NZE161

厚さ=0.95,ﾏｰｸ 14

 2
41361-22020

NZE161

厚さ=1.00,ﾏｰｸ 02

 2
41361-22030

NZE161

厚さ=1.10,ﾏｰｸ 03

 2
41361-22160

NZE161

厚さ=1.15,ﾏｰｸ 16

 2
41361-22150

NZE161

厚さ=1.05,ﾏｰｸ 15

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NZE161

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

NZE161

厚さ=0.95,ﾏｰｸ 14

 2
41361-22020

NZE161

厚さ=1.00,ﾏｰｸ 02

 2
41361-22030

NZE161

厚さ=1.10,ﾏｰｸ 03

 2
41361-22160

NZE161

厚さ=1.15,ﾏｰｸ 16

 2
41361-22150

NZE161

厚さ=1.05,ﾏｰｸ 15

 2
Linked diagrams
3302
4302
