NZE161-AEXGK (2012)

Toyota Corolla Axio/Fielder

Production Jun 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1503)4D

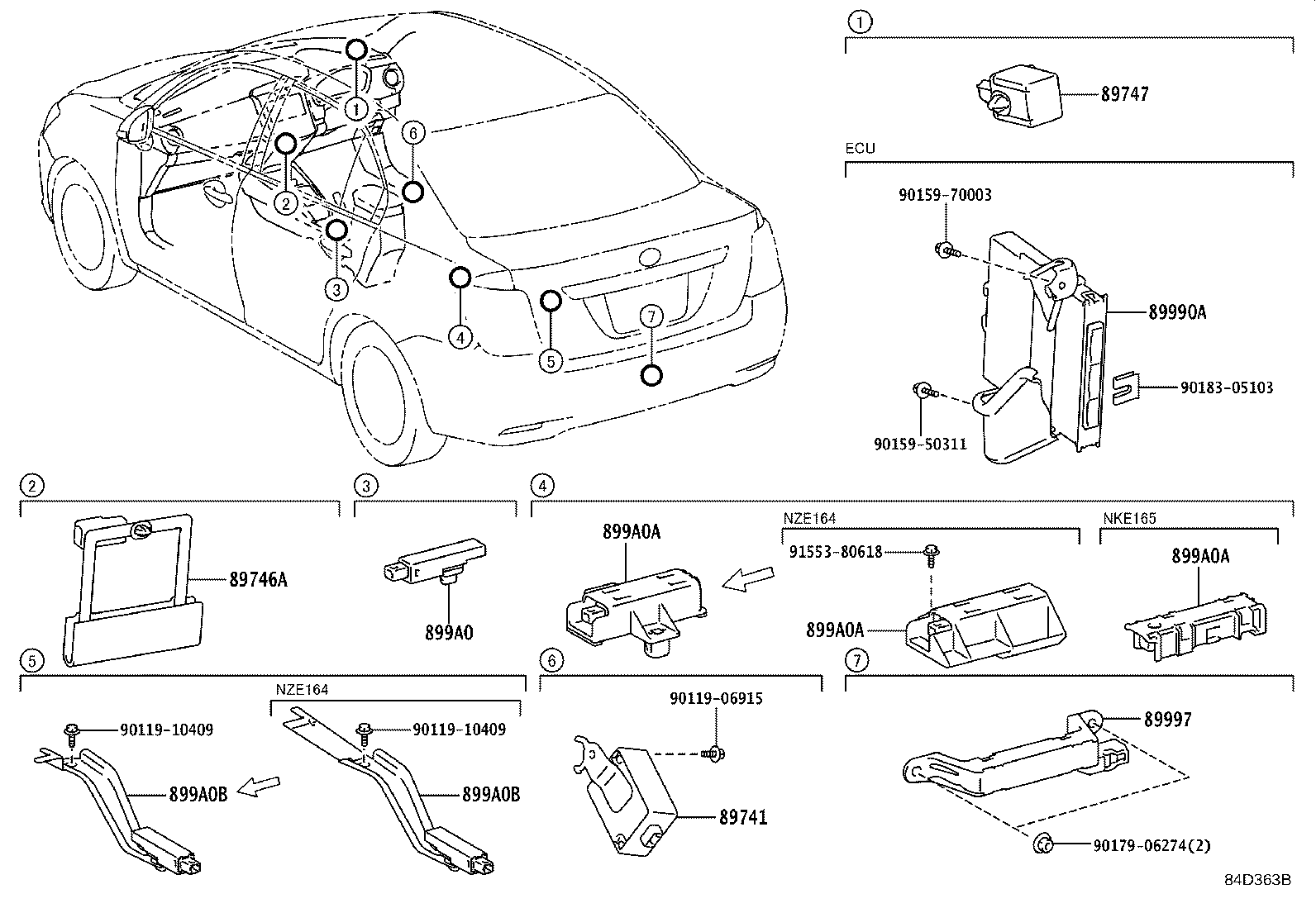

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 89741 89746A 89747 89990A 89997 899A0 899A0A 899A0A 899A0A 899A0B 899A0B 9011906915 9011910409 9011910409 9015950311 9015970003 9017906274 9018305103 9155380618
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-12290

NZE16#..LXL

 1
89740-12290

NKE165,NZE16#..4D..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
89741-12620

NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-12070

NKE165,NZE16#..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
89746-12070

NZE16#,ZRE162..LXL,S

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

NKE165,NZE16#..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
89747-30040

NZE16#,ZRE162..LXL,S

 1
89990A - COMPUTER ASSY, SMART KEY
89990-12160

NRE160;NZE16#..4D..CVT..G

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
89990-12160

NZE16#..LXL

 1
89990-12161

NZE16#..LXL

 1
89990-12161

NRE160;NZE16#..4D..CVT..G

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30070

NKE165,NZE16#..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
89997-30070

NZE16#,ZRE162..LXL,S

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

NZE16#,ZRE162..LXL,S

 1
899A0-47010

NKE165,NZE16#..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-52020

NZE161..CVT..G

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
899A0-52020

NZE161,ZRE162..LXL,S

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-52020

NZE161..CVT..G

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
899A0-52020

NZE161,ZRE162..LXL,S

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-52020

NZE161..CVT..G

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
899A0-52020

NZE161,ZRE162..LXL,S

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-12040

NZE161..LXL

 1
899A0-12040

NKE165,NZE161..4D..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-12040

NZE161..LXL

 1
899A0-12040

NKE165,NZE161..4D..CVT..(G,HBDG)

ｽﾏｰﾄｴﾝﾄﾘ−有り

 1
Common parts
90119-06915
90119-10409
90159-50311
90159-70003
90179-06274
90183-05103
91553-80618
