NZE161-AEXGK (2012)

Toyota Corolla Axio/Fielder

Production Jun 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1206- )1NZFE..NZE161..CVT

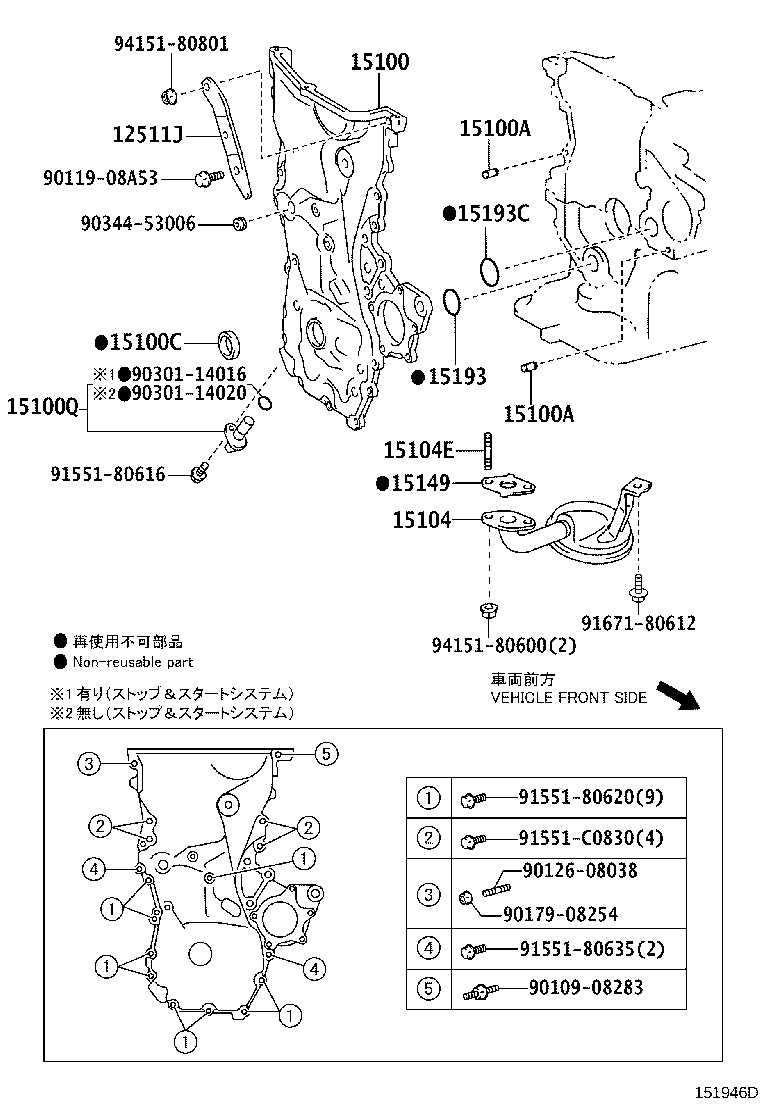

Click highlighted areas on diagram

diagram 12511J 15100 15100A 15100A 15100C 15100Q 15104 15104E 15149 15193 15193C 9010908283 9011908A53 9012608038 9017908254 9030114016 9030114020 9034453006 9155180616 9155180620 9155180635 91551C0830 9167180612 9415180600 9415180801
Part # Description Qty Price
12511J - BRACKET, ALTERNATOR
12511-21010

1NZFE..NZE161..CVT

 1
15100 - PUMP ASSY, OIL
15100-21080

1NZFE..NZE161..CVT

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFE..NZE16#

 2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFE..NZE16#

 2
15100C - SEAL(FOR OIL PUMP)
90311-25032

1NZ#..NKE165,NZE16#

 1
90311-25033

1NZ#..NKE165,NZE16#

 1
15100Q - SENSOR, CRANK POSITION
90919-05081

1NZFE..NZE16#

 1
90919-05087

1NZ#..NKE165,NZE16#

 1
90919-05083

1NZFE..NZE161..CVT

有り(ｽﾄｯﾌﾟ & ｽﾀｰﾄｼｽﾃﾑ)

 1
15104 - STRAINER SUB-ASSY, OIL
15104-21022

1NZ#..NKE165,NZE16#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021

1NZ#..NKE165,NZE16#

 2
15149 - GASKET, OIL STRAINER FLANGE
16258-21030

1NZ#..NKE165,NZE16#

 1
15193 - GASKET, OIL PUMP
12151-21010

1NZ#..NKE165,NZE16#

 1
15193C - GASKET, OIL PUMP NO.2
11497-21010

1NZ#..NKE165,NZE16#

 1
Common parts
90109-08283
90119-08A53
90126-08038
90179-08254
90301-14016
90301-14020
90344-53006
91551-80616
91551-80620
91551-80635
91551-C0830
91671-80612
94151-80600
94151-80801
