NZE161-AEXEK (2012)

Toyota Corolla Axio/Fielder

Production Jun 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1206-1503)1NZFE..NZE161..CVT

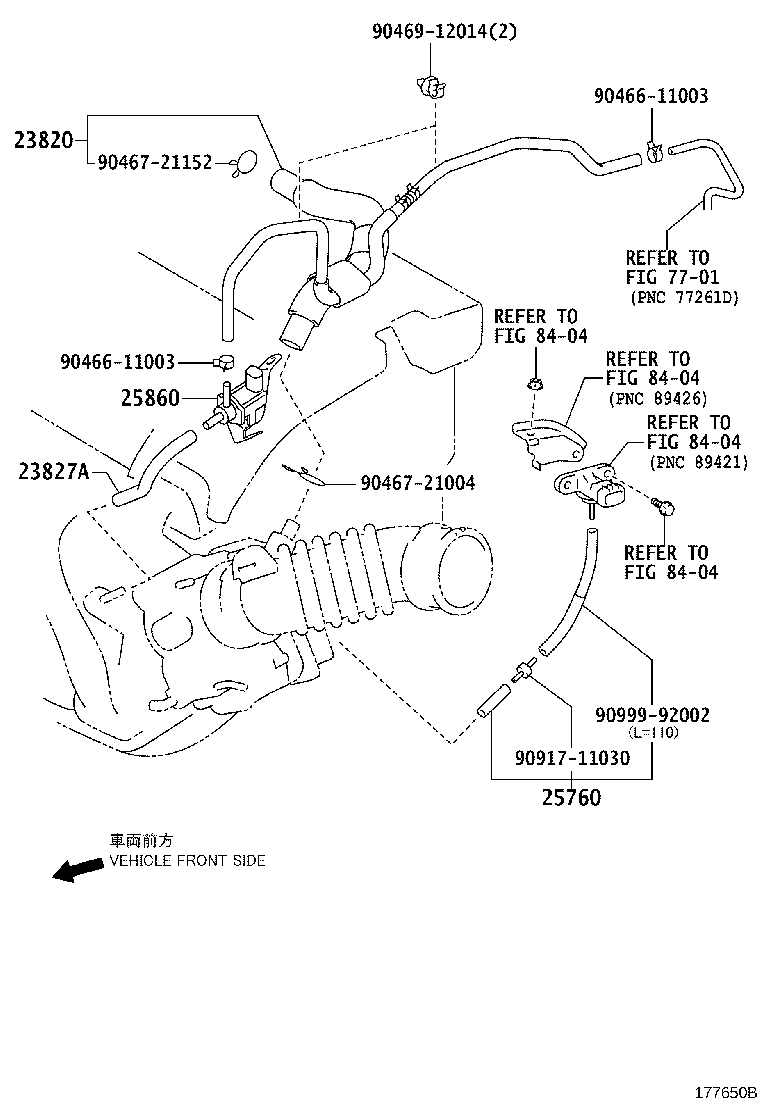

Click highlighted areas on diagram

diagram 23820 23827A 25760 25860 7701 8404 8404 8404 8404 9046611003 9046611003 9046721004 9046721152 9046912014 9091711030 9099992002
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21190

1NZFE..NZE161..CVT

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21150

1NZFE..NZE16#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-21030

1NZFE..NZE161..CVT

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-21070

1NZFE..NZE16#

 1
Common parts
90466-11003
90467-21004
90467-21152
90469-12014
90917-11030
90999-92002
