NZE161-AEMEK (2012)
Toyota Corolla Axio/Fielder
ILLUST NO. 1 OF11(1204- )NRE16#,NZE16#,ZRE162
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1HL02 |
NZE161..5F..G |
1 | ||
| 82111-1HL22 |
NZE161..5F..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
1 | ||
| 82111-1HL22 |
NZE161..4D..5F..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52C00 |
NRE160,NZE16#,ZRE162 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-52A20 |
NRE160,NZE16#,ZRE162 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 3 OF11(1204- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1TJ00 |
NZE161..G |
1 | ||
| 82141-1TJ10 |
NZE161..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
1 | ||
| 82141-1TL00 |
NZE161..G |
1 | ||
| 82141-1TL11 |
NZE16#..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
1 | ||
| 82141-1TR50 |
NZE16#..4D..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-12A60 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 82140-52030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52150 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52160 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-52170 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-52010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 90159-60613 | ||||
ILLUST NO. 4 OF11(1204- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12Z10 |
NKE165,NZE16#..G,HBDG |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12X30 |
NKE165,NZE16#..G,HBDG |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12B30 |
NKE165,NZE16#..G,HBDG |
1 | ||
| 82153-12B60 |
NZE16#,ZRE162..LXL,S |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12B10 |
NZE16#,ZRE162..LXL,S |
1 | ||
| 82154-12A80 |
NKE165,NZE16#..G,HBDG |
1 | ||
ILLUST NO. 5 OF11(1204- )4D
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-1AA90 |
NRE160,NZE161..4D..(G,X) |
1 | ||
| 82161-1AB70 |
NRE160,NZE161..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-1AB70 |
NRE160,NZE161..4D..(G,X) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12R40 |
NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
1 | ||
| 82171-12R40 |
NZE16#,ZRE162..LXL,S |
1 | ||
| 82171-12R10 |
NKE165,NRE160,NZE16#..G,HBD,HBDG,X |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-12030 |
NZE161..4D..G;NKE165,NZE161..5D;NKE165,NRE160..4D..(HBDG,X) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
1 | ||
| 82183-12050 |
NZE161,ZRE162..LXL,S |
1 | ||
| 82183-12030 |
NKE165..5D;NKE165,NZE161..4D..(G,HBDG) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12160 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52710 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52710 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52710 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-52710 |
NZE164;NZE161,ZRE162..LXL,S |
2 | ||
| 82817-52710 |
NKE165..5D;NKE165,NZE161..4D..(G,HBDG) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82817-52710 |
NZE161..4D..G;NKE165,NZE161..5D;NKE165,NRE160..4D..(HBDG,X) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-52710 |
NZE164;NZE161,ZRE162..LXL,S |
2 | ||
| 82817-52710 |
NKE165..5D;NKE165,NZE161..4D..(G,HBDG) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82817-52710 |
NZE161..4D..G;NKE165,NZE161..5D;NKE165,NRE160..4D..(HBDG,X) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
2 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-52A60 |
NZE161..4D..G;NKE165,NZE161..5D;NKE165,NRE160..4D..(HBDG,X) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(*AHB) |
1 | ||
| 82817-52A60 |
NKE165..5D;NKE165,NZE161..4D..(G,HBDG) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817-52A60 |
NZE164;NZE161,ZRE162..LXL,S |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| 90980-12373 | ||||
| 90980-12697 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

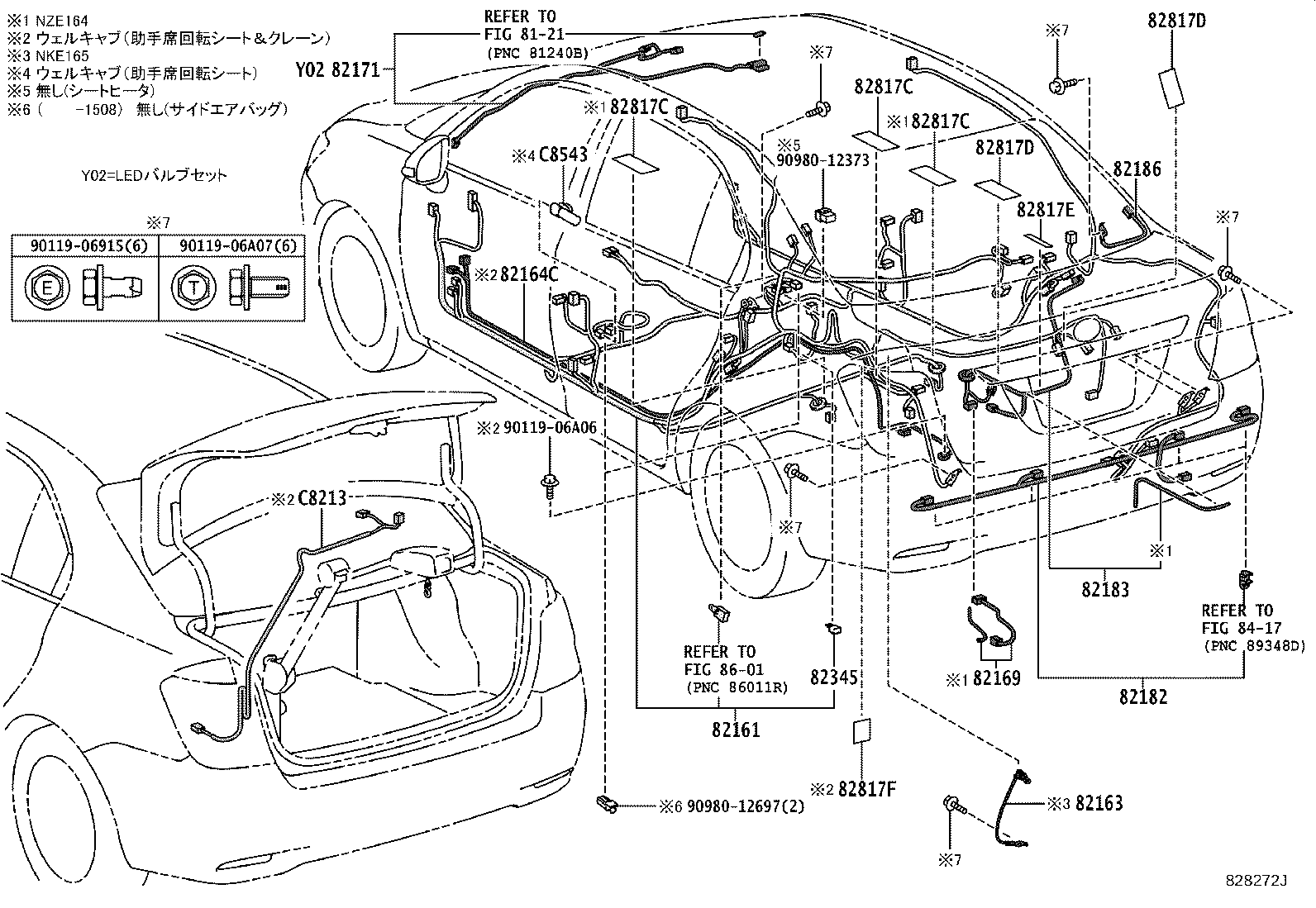

ILLUST NO. 6 OF11(1204- )
ｼｰﾄ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 8 OF11(1204- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12B60 | ||||
| 82715-12N70 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P80 | ||||
| 82715-12R80 | ||||
| 82715-28L90 | ||||
| 82715-52A20 | ||||
| 82715-52D50 | ||||
| 82715-52E10 | ||||
| 82715-52E20 | ||||
| 82715-52E30 | ||||
| 82715-52L30 | ||||
| 82715-52L50 | ||||
| 82715-52M60 | ||||
| 82715-52R60 | ||||
| 82715-52T90 | ||||
| 82715-52U10 | ||||
| 82715-52U40 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C160 | ||||
| 82715-5C170 | ||||
| 82715-5C671 | ||||
| 82715-6A460 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 9 OF11(1204- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52J80 | ||||
| 82715-52M30 | ||||
| 82715-52T10 | ||||
| 82715-52T40 | ||||
| 82715-52U50 | ||||
| 82715-52W90 | ||||
| 82715-52X00 | ||||
| 82715-52Y60 | ||||
| 82715-52Z10 | ||||
| 82715-52Z70 | ||||
| 82715-52Z80 | ||||
| 82715-52Z90 | ||||
| 82715-5C250 | ||||
| 82715-5C260 | ||||
| 82715-5C480 | ||||
| 82715-5C490 | ||||
| 82715-5C590 | ||||
| 82715-75190 | ||||
| 90105-06331 | ||||
| 90116-06166 | ||||
| 90119-06915 | ||||
| 90179-06178 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 5804 | ||||
ILLUST NO.10 OF11(1204- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10891 | ||||
| 90980-10897 | ||||
| 90980-11003 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-11717 | ||||
| 90980-12936 | ||||
ILLUST NO. 2 OF11(1204- )NZE16#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12Q20 |
NZE161..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52380 |
NZE161..5F |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NZE16# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-52050 |
NZE16# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-52120 |
NRE160,NZE16#,ZRE162 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-52850 |
NRE160,NZE16#,ZRE162 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-52610 |
NZE16# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NRE160,NZE16#,ZRE162 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91673-80614 | ||||
