NZE161-AEMEK (2012)
Toyota Corolla Axio/Fielder
ILLUST NO. 1 OF 2(1204- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-12D10B0 |
NRE160,NZE16#..4D LT.GRAY/IVORY,TRIM20 |
1 | ||
| 73210-12D10B1 |
NRE160,NZE16#..4D LT.GRAY/GRAY,TRIM21 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NKE165,NRE160,NZE16#,ZRE162 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NKE165,NRE160,NZE16#,ZRE162 ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-12D10B0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) LT.GRAY/IVORY,TRIM20 |
1 | ||
| 73220-12D10B1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) LT.GRAY/GRAY,TRIM21 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12B80A0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) IVORY,TRIM20 |
1 | ||
| 73230-12B80B0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) GRAY,TRIM21 |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010C0 |
NKE165,NRE160,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
NKE165,NRE160,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010C0 |
NKE165,NRE160,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
NKE165,NRE160,NZE16#,ZRE162 BLACK,TRIM2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-12340B0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) GRAY,TRIM21 |
1 | ||
| 73240-12340A0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) IVORY,TRIM20 |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 91553-80612 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

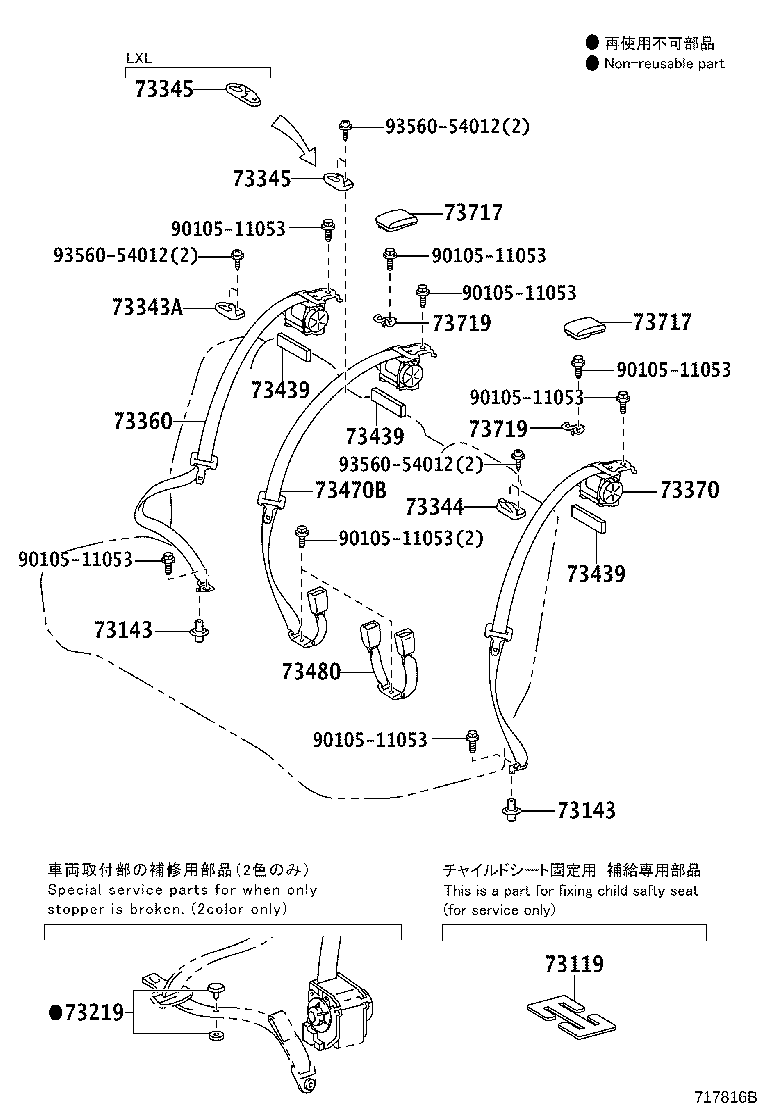

ILLUST NO. 2 OF 2(1204- )4D
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52011 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52011 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NKE165,NRE160,NZE16#,ZRE162 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NKE165,NRE160,NZE16#,ZRE162 ﾌﾞﾗｯｸ |
1 | ||
| 73343A - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) IVORY,TRIM20 |
1 | ||
| 73343-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73344-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) IVORY,TRIM20 |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73343-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) IVORY,TRIM20 |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73343-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) IVORY,TRIM20 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-12A60A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73360-12A80A0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73360-12A60B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73360-12A80B0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73360-12A80B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73360-12A80A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-12590B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73370-12610B0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73370-12590A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73370-12610A0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73370-12610B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73370-12610A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
3 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-12270A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73470-12270B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73470-12290A0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73470-12290B0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73470-12290A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73470-12290B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-12400A0 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73480-12380A0 |
NRE160,NZE16#..4D IVORY,TRIM20 |
1 | ||
| 73480-12380B0 |
NRE160,NZE16#..4D GRAY,TRIM21 |
1 | ||
| 73480-12400B0 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73480-12400B0 |
NRE160,NZE16#..4D GRAY,TRIM21 |
1 | ||
| 73480-12400A0 |
NRE160,NZE16#..4D IVORY,TRIM20 |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 64332-52050C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 64332-52050C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 93560-54012 | ||||

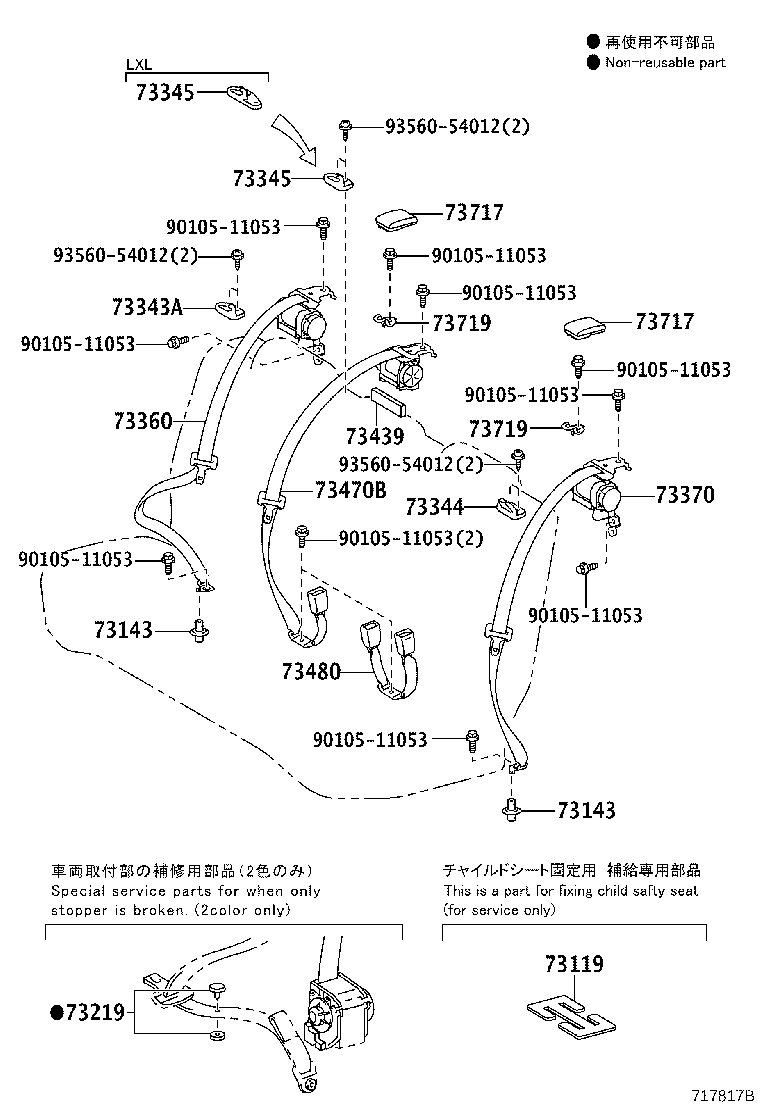

ILLUST NO. 2 OF 2(1204- )SED
ﾘﾔ,ｱﾘ(*CUSA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52011 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52011 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NKE165,NRE160,NZE16#,ZRE162 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NKE165,NRE160,NZE16#,ZRE162 ﾌﾞﾗｯｸ |
1 | ||
| 73343A - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) IVORY,TRIM20 |
1 | ||
| 73343-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73344-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,LXL,X) IVORY,TRIM20 |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73343-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) IVORY,TRIM20 |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33020B2 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) DK.CHARCOAL,TRIM21 |
1 | ||
| 73343-33020A1 |
NKE165,NRE160,NZE16#..4D..(G,HBD,X) IVORY,TRIM20 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-12A60A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73360-12A80A0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73360-12A60B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73360-12A80B0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73360-12A80B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73360-12A80A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-12590B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73370-12610B0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73370-12590A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73370-12610A0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73370-12610B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73370-12610A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-52030 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
1 | ||
| 73439-52030 |
NRE160,NZE16#..4D |
3 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-12270A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73470-12270B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73470-12290A0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73470-12290B0 |
NRE160,NZE16#..4D..(G,X) SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73470-12290A0 |
NRE160,NZE16#..4D..(G,X) IVORY,TRIM20 |
1 | ||
| 73470-12290B0 |
NRE160,NZE16#..4D..(G,X) GRAY,TRIM21 |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-12400A0 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),IVORY,TRIM20 |
1 | ||
| 73480-12380A0 |
NRE160,NZE16#..4D IVORY,TRIM20 |
1 | ||
| 73480-12380B0 |
NRE160,NZE16#..4D GRAY,TRIM21 |
1 | ||
| 73480-12400B0 |
NRE160,NZE16#..4D SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM21 |
1 | ||
| 73480-12400B0 |
NRE160,NZE16#..4D GRAY,TRIM21 |
1 | ||
| 73480-12400A0 |
NRE160,NZE16#..4D IVORY,TRIM20 |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 64332-52050C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 64332-52050C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 93560-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
