NZE161-AEMEK (2012)
Toyota Corolla Axio/Fielder
(1204- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-12100C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C0 |
NKE165,NRE160,NZE16#..4D BLACK |
2 | ||
| 58676C - PAD, REAR FLOOR SILENCER | ||||
| 58579-12010 |
NRE160,NZE16#..4D 225 X 64 X 27 |
2 | ||
| 58579-12011 |
NKE165,NRE160,NZE16#..4D 225 X 40 X 27 |
2 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64241-12060 |
NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X) |
2 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64241-12060 |
NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X) |
2 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-12C20C1 |
NKE165,NRE160,NZE16#..4D ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り(間欠ﾘﾔﾜｲﾊﾟ),BLACK,TRIM2# |
1 | ||
| 64330-12A30C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
5 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
5 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
5 | ||
| 64334A - PAD, PACKAGE TRAY TRIM | ||||
| 64334-12380 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 64374A - SUPPORT, PACKAGE TRAY TRIM | ||||
| 64374-12040 |
NKE165,NRE160,NZE16#..4D |
3 | ||
| 64374A - SUPPORT, PACKAGE TRAY TRIM | ||||
| 64374-12040 |
NKE165,NRE160,NZE16#..4D |
3 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-12011C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64712-12010C0 |
NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X) BLACK |
1 | ||
| 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64713-12010C0 |
NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64713-12011C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-12140C0 |
NRE160,NZE16#..4D..(G,X) BLACK,TRIM2# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-12181C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64719-12180C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
NKE165,NRE160,NZE16#..4D BLACK |
11 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
NKE165,NRE160,NZE16#..4D BLACK |
10 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
NKE165,NRE160,NZE16#..4D BLACK |
10 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-26010C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-26010C1 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
2 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-12050 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-12051 |
NKE165,NRE160,NZE161..4D |
1 | ||
| 64727-12050 |
NRE160,NZE161..4D |
1 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64771-12310C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64771-12310C0 |
NKE165,NRE160,NZE16#..4D BLACK,TRIM2# |
1 | ||
| 64771H - CLIP(FOR SPARE WHEEL COVER) | ||||
| 58707-50060 |
NKE165,NRE160,NZE16#..4D |
1 | ||
| 64772C - PAD, SPARE WHEEL COVER | ||||
| 64761-12040 |
NKE165,NRE160,NZE161..4D ｽﾍﾟｱﾀｲﾔ−T125/70D16 |
3 | ||
| 64772C - PAD, SPARE WHEEL COVER | ||||
| 64761-12040 |
NKE165,NRE160,NZE161..4D ｽﾍﾟｱﾀｲﾔ−T125/70D16 |
3 | ||
| 64772C - PAD, SPARE WHEEL COVER | ||||
| 64761-12040 |
NKE165,NRE160,NZE161..4D ｽﾍﾟｱﾀｲﾔ−T125/70D16 |
3 | ||
| 64776A - SPACER, TOOL BAG CASE | ||||
| 64765-12050 |
NKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X) |
1 | ||
| 64777G - CUSHION, SPARE WHEEL | ||||
| 64777-12130 |
NKE165,NRE160,NZE161..4D |
1 | ||
| 64777-52040 |
NKE165,NRE160,NZE16#..4D ｽﾍﾟｱﾀｲﾔ−T125/70D16 |
1 | ||
| 64777G - CUSHION, SPARE WHEEL | ||||
| 64777-12130 |
NKE165,NRE160,NZE161..4D |
1 | ||
| 64777-52040 |
NKE165,NRE160,NZE16#..4D ｽﾍﾟｱﾀｲﾔ−T125/70D16 |
1 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-52020 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-52020 |
NKE165,NRE160,NZE16#..4D |
2 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 90119-08C59 | ||||

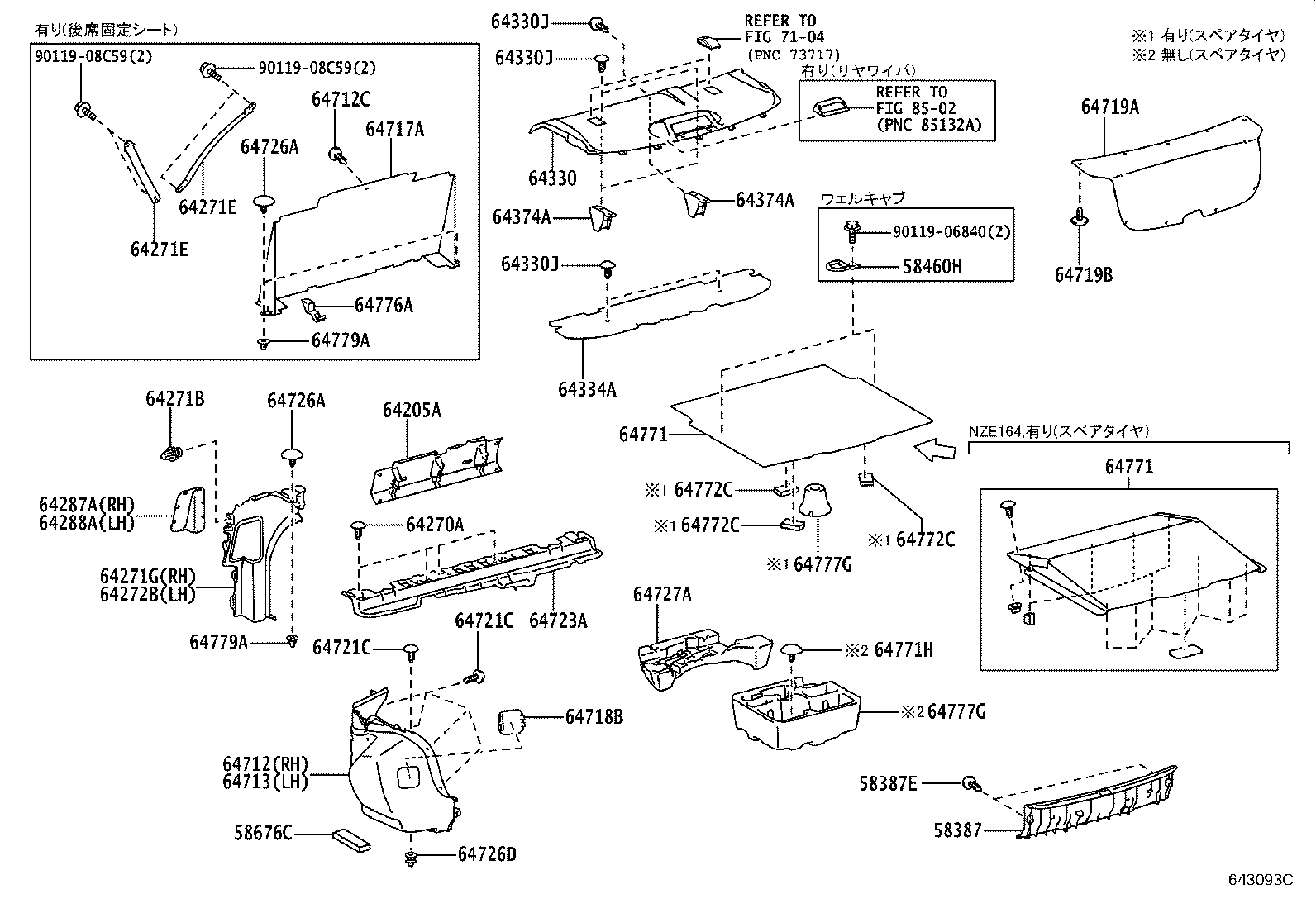

| Linked diagrams | ||||
| 7104 | ||||
| 8502 | ||||
