Toyota Corolla axio/fielder NZE161 CLUTCH PEDAL & FLEXIBLE HOSE

NZE161-AEMEK (2012)

Toyota Corolla Axio/Fielder

Production Apr 2012 - Mar 2015

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

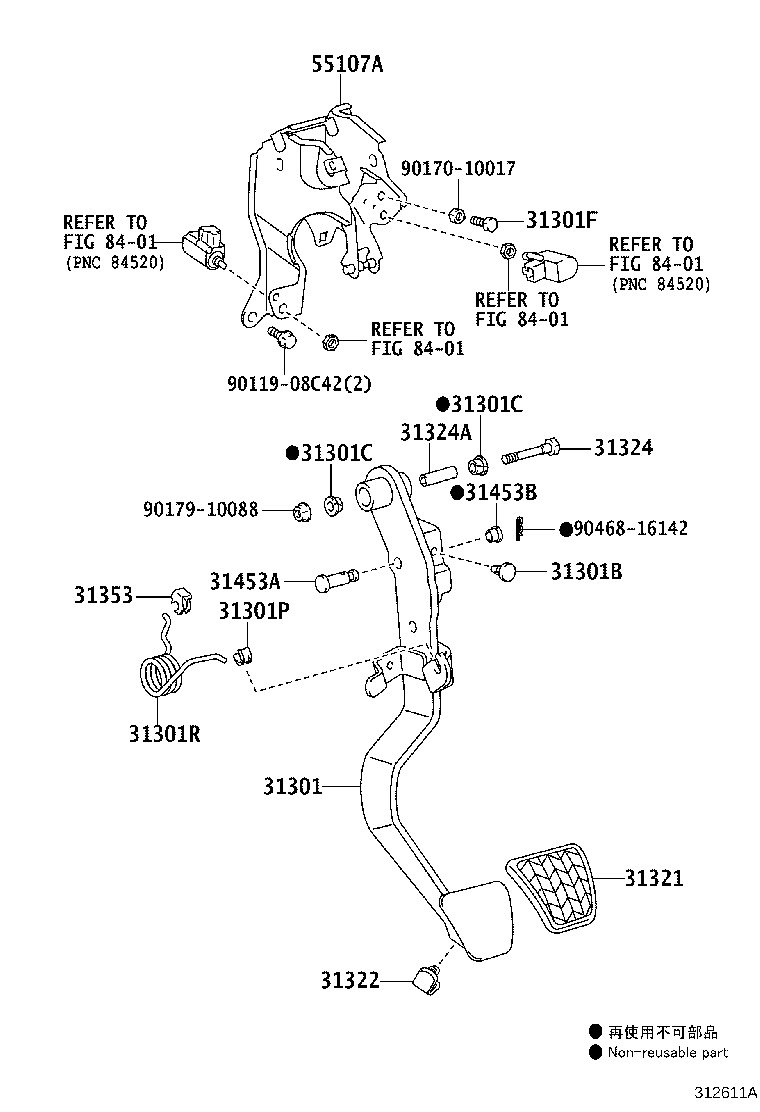

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-52141	NZE161..5F	04/2012 - 04/2014	1
31301-52160	NZE161..5F	04/2014 - 03/2015	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	NZE161..5F	04/2012 - 03/2015	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NZE161..5F	04/2012 - 03/2015	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NZE161..5F	04/2012 - 03/2015	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91112-61025	NZE161..5F	04/2012 - 03/2015	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	NZE161..5F	04/2012 - 04/2014	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
31395-12020	NZE161..5F	04/2012 - 04/2014	1
31321 - PAD, CLUTCH PEDAL
31321-52010	NZE161..5F	04/2012 - 01/2015	1
31321-52020	NZE161..5F	02/2015 - 03/2015	1
31322 - STOPPER, CLUTCH PEDAL
31322-52010	NZE161..5F	04/2012 - 03/2015	1
31324 - SHAFT, CLUTCH PEDAL
90105-10444	NZE161..5F	04/2012 - 03/2015	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	NZE161..5F	04/2012 - 03/2015	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010	NZE161..5F	04/2012 - 04/2014	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051	NZE161..5F 長さ=31.5	04/2012 - 03/2015	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	NZE161..5F	04/2012 - 03/2015	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12350	NZE161..5F	04/2012 - 04/2014	1
55107-52240	NZE161..5F	04/2014 - 03/2015	1
Common parts
90119-08C42
90170-10017
90179-10088
90468-16142
Linked diagrams
8401

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02E09	NZE161..5F	04/2012 - 03/2015	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-52120	NZE161..5F	04/2012 - 11/2013	1
31481-52140	NZE161..5F	12/2013 - 03/2015	1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D17	NZE161..5F	04/2012 - 03/2015	2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D17	NZE161..5F	04/2012 - 03/2015	2
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52070	NZE161..5F	04/2012 - 03/2015	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-13040	NZE161..5F	04/2012 - 03/2015	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150	NZE161..5F	04/2012 - 03/2015	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52050	NZE161..5F	04/2012 - 03/2015	1
Common parts
90119-10550
90461-08652
90468-08035
90468-08040
91671-80616
91671-80816
Linked diagrams
3103
3105
4708

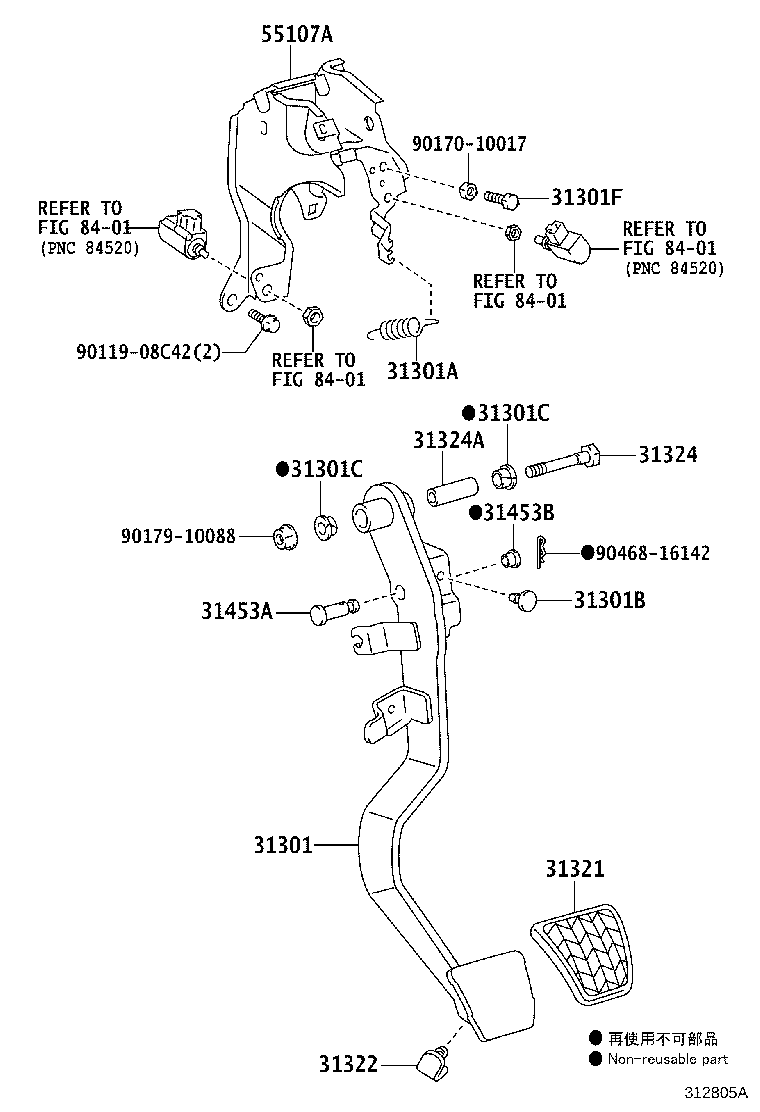

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-52141	NZE161..5F	04/2012 - 04/2014	1
31301-52160	NZE161..5F	04/2014 - 03/2015	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14055	NZE161..5F	04/2014 - 03/2015	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	NZE161..5F	04/2012 - 03/2015	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NZE161..5F	04/2012 - 03/2015	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NZE161..5F	04/2012 - 03/2015	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91112-61025	NZE161..5F	04/2012 - 03/2015	1
31321 - PAD, CLUTCH PEDAL
31321-52010	NZE161..5F	04/2012 - 01/2015	1
31321-52020	NZE161..5F	02/2015 - 03/2015	1
31322 - STOPPER, CLUTCH PEDAL
31322-52010	NZE161..5F	04/2012 - 03/2015	1
31324 - SHAFT, CLUTCH PEDAL
90105-10444	NZE161..5F	04/2012 - 03/2015	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	NZE161..5F	04/2012 - 03/2015	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051	NZE161..5F 長さ=31.5	04/2012 - 03/2015	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	NZE161..5F	04/2012 - 03/2015	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12350	NZE161..5F	04/2012 - 04/2014	1
55107-52240	NZE161..5F	04/2014 - 03/2015	1
Common parts
90119-08C42
90170-10017
90179-10088
90468-16142
Linked diagrams
8401
