NZE144G-AWXNK (2006)
Toyota Corolla Axio/Fielder
ILLUST NO. 2 OF 2(0609- )
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12740 |
NZE14#,ZRE14# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12520 |
NZE14#,ZRE14# |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
NZE14#,ZRE14# |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-68020 |
NZE14#,ZRE14# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
NZE14#,ZRE14# |
4 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
NZE14#,ZRE14# |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

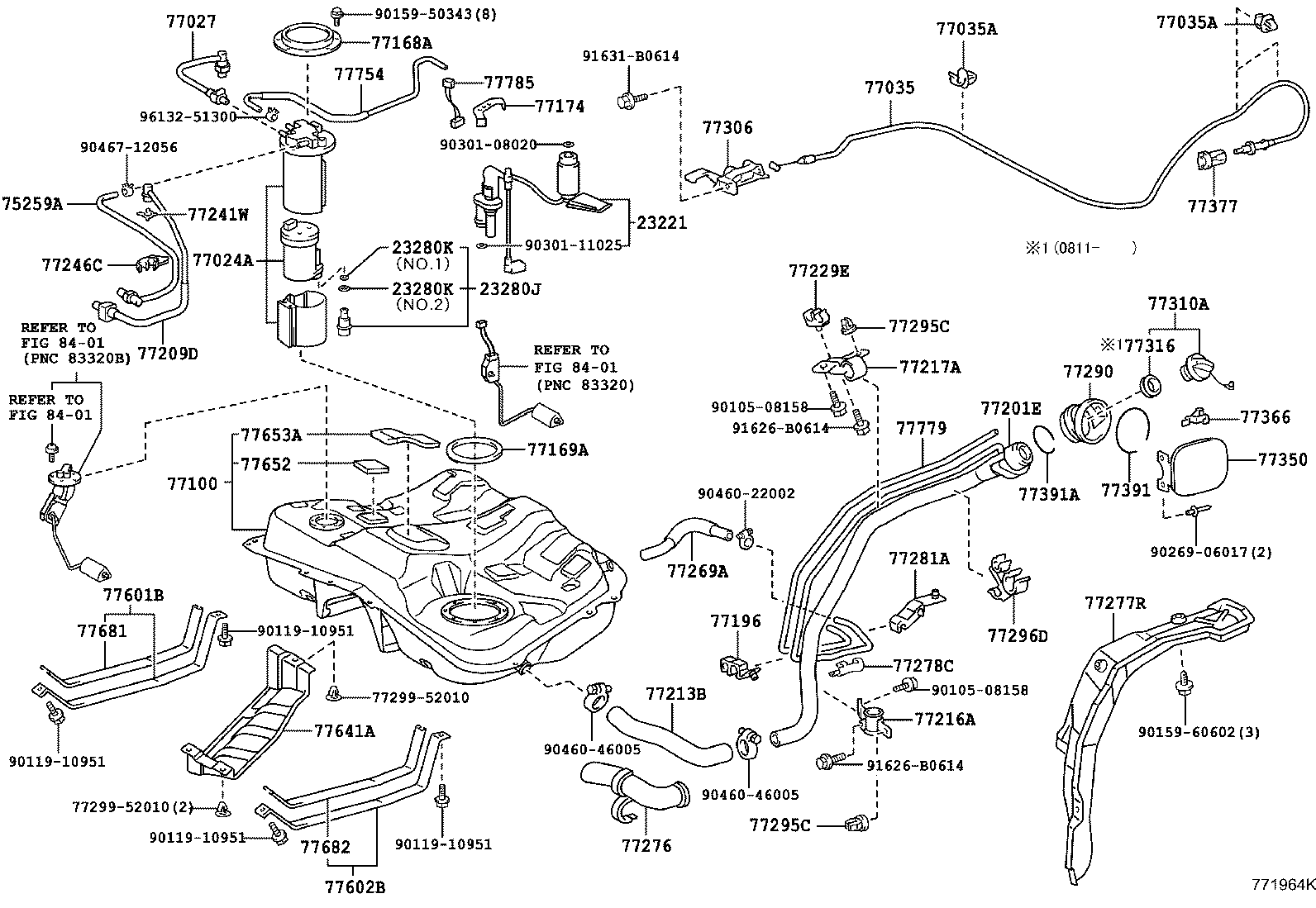

ILLUST NO. 1 OF 2(0609- )NZE144,ZRE144
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-21180 |
1NZFE..NZE144 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFE,2ZRFE..NZE144,ZRE14# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFE,2ZRFE..NZE14#,ZRE142 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90301-15024 |
1NZFE,2ZRFE..NZE14#,ZRE142 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFE,2ZRFE..NZE14#,ZRE142 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90301-15024 |
1NZFE,2ZRFE..NZE14#,ZRE142 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 75259A - HOSE, FUEL | ||||
| 77259-12320 |
NZE144,ZRE144 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12061 |
NZE144,ZRE144 |
1 | ||
| 77024-12060 |
NZE144,ZRE144 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12080 |
NZE144,ZRE144 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-13130 |
NZE14#,ZRE14#..WG |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NZE144,ZRE144 |
3 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NZE144,ZRE144 |
3 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12A80 |
NZE144,ZRE144 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
NZE14#,ZRE14# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
NZE14#,ZRE14# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-12020 |
NZE14#,ZRE14# |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12060 |
NZE14#,ZRE14# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-12700 |
NZE14#,ZRE14# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12230 |
NZE144,ZRE144 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12290 |
NZE144,ZRE144 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
NZE14#,ZRE14# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-12110 |
NZE14#,ZRE14# |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-12100 |
NZE14#,ZRE14# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
NZE14#,ZRE14# |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-21010 |
NZE144,ZRE144 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-12100 |
NZE144,ZRE144 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12080 |
NZE144,ZRE144 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12210 |
NZE14#,ZRE14# |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-12060 |
NZE144,ZRE144 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12120 |
NZE144,ZRE144 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12200 |
NZE14#,ZRE14# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
NZE14#,ZRE14# |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
NZE14#,ZRE14# |
2 | ||
| 77296D - PLATE, FUEL TUBE SUPPORT | ||||
| 77296-12070 |
NZE14#,ZRE14# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
NZE14#,ZRE14#..WG |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NZE14#,ZRE14# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13100 |
NZE14#,ZRE14#..WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
NZE14#,ZRE14# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
NZE14#,ZRE14# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
NZE14#,ZRE14# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NZE14#,ZRE14# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12340 |
NZE144,ZRE144 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77601-12340 |
NZE144,ZRE144 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12220 |
NZE144,ZRE144 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
NZE144,ZRE144 |
5 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
NZE144,ZRE144 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12070 |
NZE144,ZRE144 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-12070 |
NZE14#,ZRE14# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12190 |
NZE144,ZRE144 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-12030 |
NZE144,ZRE144 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12020 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 77299-52010 | ||||
| 90105-08158 | ||||
| 90119-10951 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
| 90301-08020 | ||||
| 90301-11025 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-12056 | ||||
| 91626-B0614 | ||||
| 91631-B0614 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
