NZE144G-AWXNK (2006)

Toyota Corolla Axio/Fielder

Production Sep 2006 - Oct 2008
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0609- )NZE144,ZRE144

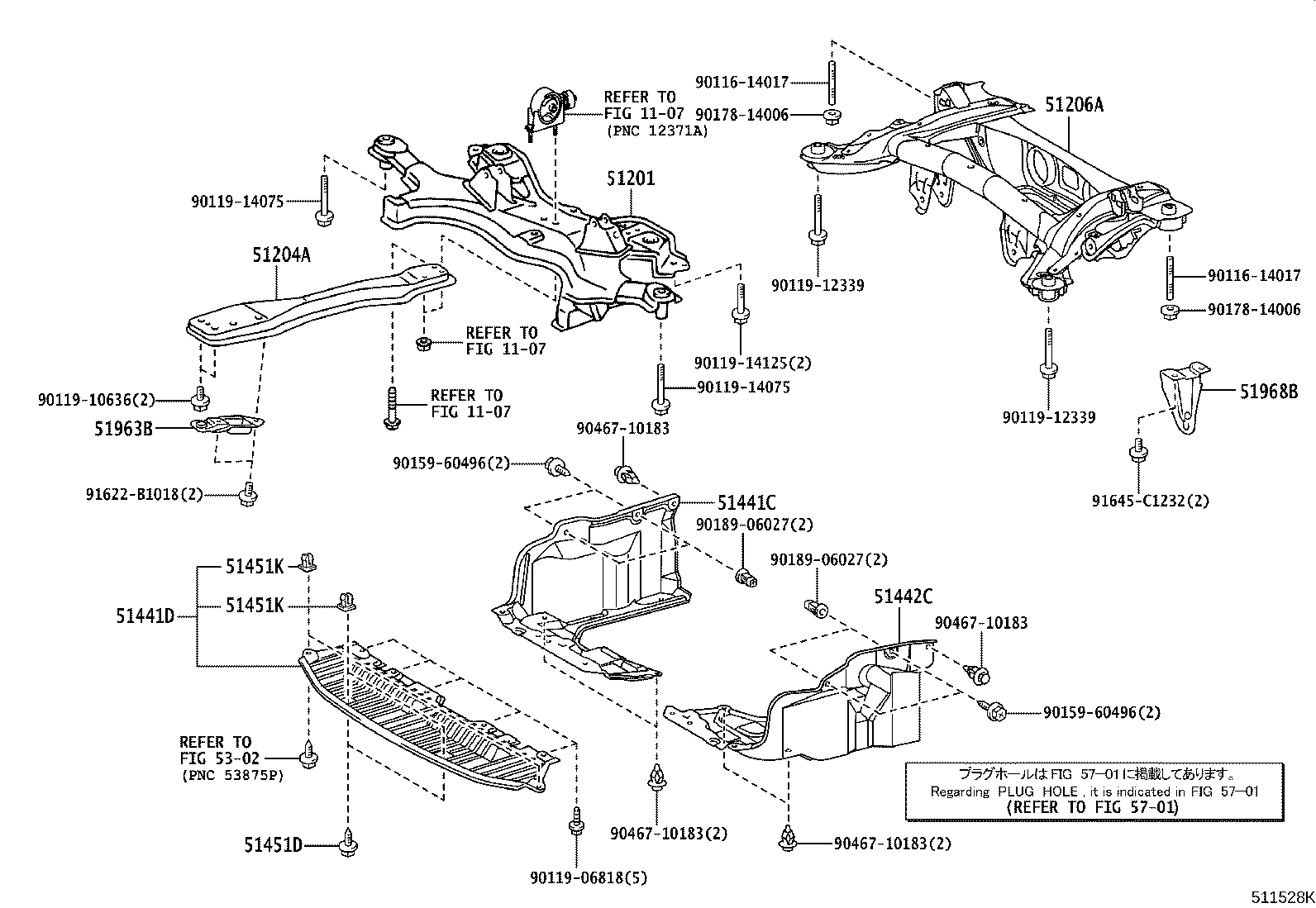

Click highlighted areas on diagram

diagram 1107 1107 1107 51201 51204A 51206A 51441C 51441D 51442C 51451D 51451K 51451K 51963B 51968B 5302 5701 9011614017 9011614017 9011906818 9011910636 9011912339 9011912339 9011914075 9011914075 9011914125 9015960496 9015960496 9017814006 9017814006 9018906027 9018906027 9046710183 9046710183 9046710183 9046710183 91622B1018 91645C1232
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12421

NZE144,ZRE144

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12120

NZE144,ZRE144

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12100

NZE144,ZRE144

 1
51441C - COVER, ENGINE UNDER, RH
51441-12240

NZE14#,ZRE14#

 1
51441D - COVER, ENGINE UNDER
51451-12071

NZE14#,ZRE14#

 1
51442C - COVER, ENGINE UNDER, LH
51442-12230

NZE14#,ZRE14#..CVFC

 1
51451D - SCREW, NO.1
90159-60488

NZE14#,ZRE14#

 2
51451K - GROMMET, SCREW, NO.1
90189-06193

NZE14#,ZRE14#

 4
51451K - GROMMET, SCREW, NO.1
90189-06193

NZE14#,ZRE14#

 4
51963B - HOOK, TRANSPORT, FRONT RH
51963-12240

NZE14#,ZRE14#

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-12170

NZE14#,ZRE14#

寒冷地仕様

 1
Common parts
90116-14017
90119-06818
90119-10636
90119-12339
90119-14075
90119-14125
90159-60496
90178-14006
90189-06027
90467-10183
91622-B1018
91645-C1232
Linked diagrams
1107
5302
5701
