NZE144G-AWXNK (2006)

Toyota Corolla Axio/Fielder

Production Sep 2006 - Oct 2008
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0609- )NZE144,ZRE144

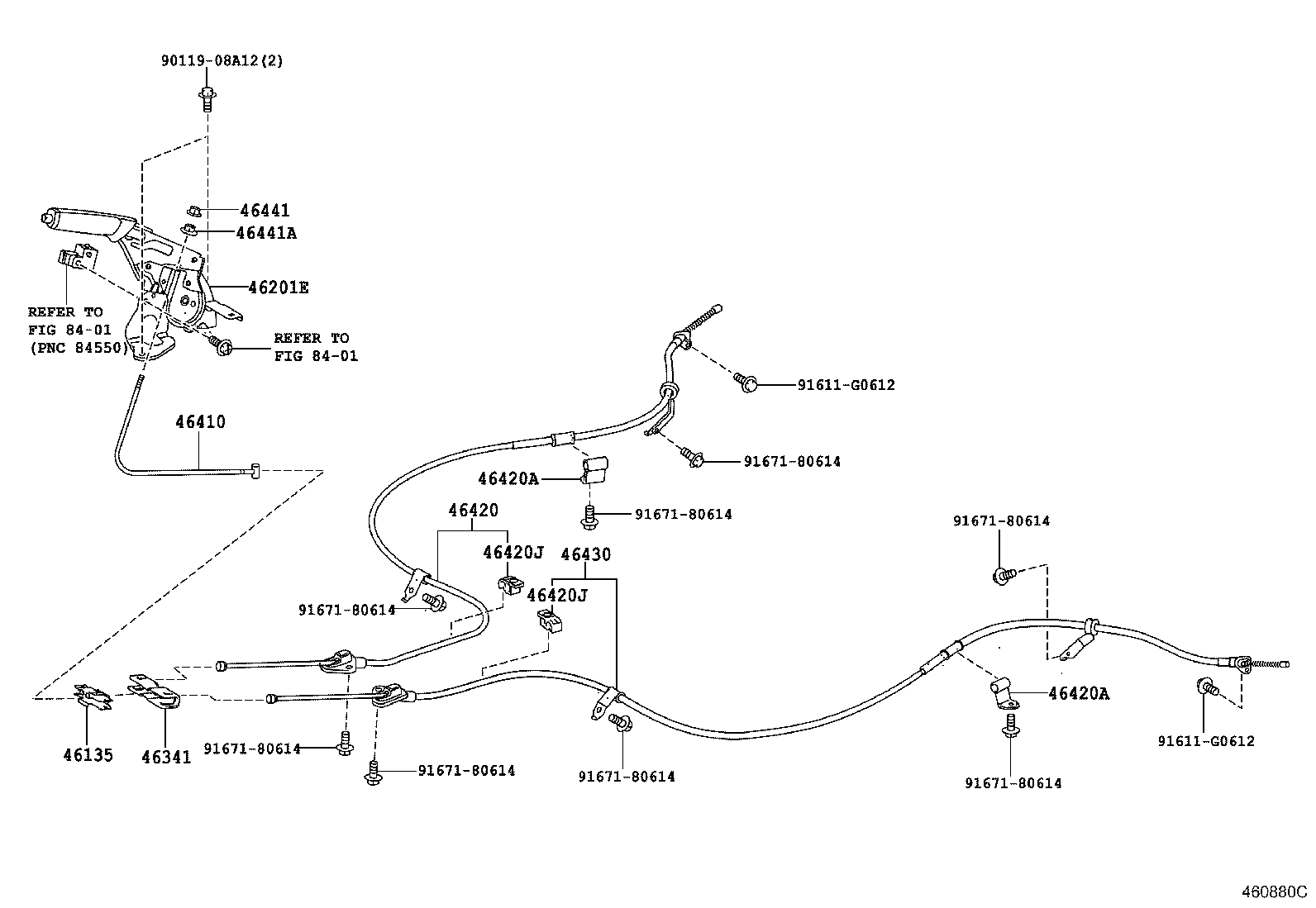

Click highlighted areas on diagram

diagram 46135 46201E 46341 46410 46420 46420A 46420A 46420J 46420J 46430 46441 46441A 8401 8401 9011908A12 91611G0612 91611G0612 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010

NZE14#,ZRE14#

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12420B0

NZE144,ZRE144..G,LXL,S

DK.GRAY,TRIM1#

 1
46201-12410B0

NZE144..X

DK.GRAY,TRIM12,13

 1
46201-12410E0

NZE144..X

ASH BROWN,TRIM4#

 1
46201-12420B0

NZE144..WG

ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM12,13

 1
46201-12420B0

NZE144..WG

G EDITION,DK.GRAY,TRIM12,13

 1
46201-12420E0

NZE144..X

X“Special Edition” *(K),ASH BROWN,TRIM4#

 1
46201-12420E0

NZE144..WG

ｴｱﾛﾂｱﾗｰ,ASH BROWN,TRIM4#

 1
46201-12420E0

NZE144,ZRE144..G,LXL

ASH BROWN,TRIM4#

 1
46201-12420E0

NZE144..WG

G EDITION,ASH BROWN,TRIM4#

 1
46201-12420B0

NZE144..WG

X“Special Edition” *(K),DK.GRAY,TRIM12,13

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12040

NZE14#,ZRE14#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12310

NZE144,ZRE144

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12640

NZE144,ZRE144

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01C31

NZE144,ZRE144

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01C31

NZE144,ZRE144

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-12020

NZE14#,ZRE14#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-12020

NZE14#,ZRE14#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12530

NZE144,ZRE144

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

NZE14#,ZRE14#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010

NZE14#,ZRE14#

 1
Common parts
90119-08A12
91611-G0612
91671-80614
Linked diagrams
8401
