NZE144-AEXEK (2006)
Toyota Corolla Axio/Fielder
Production
Sep 2006
-
Oct 2008
Engine
1NZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0609- )CVFC

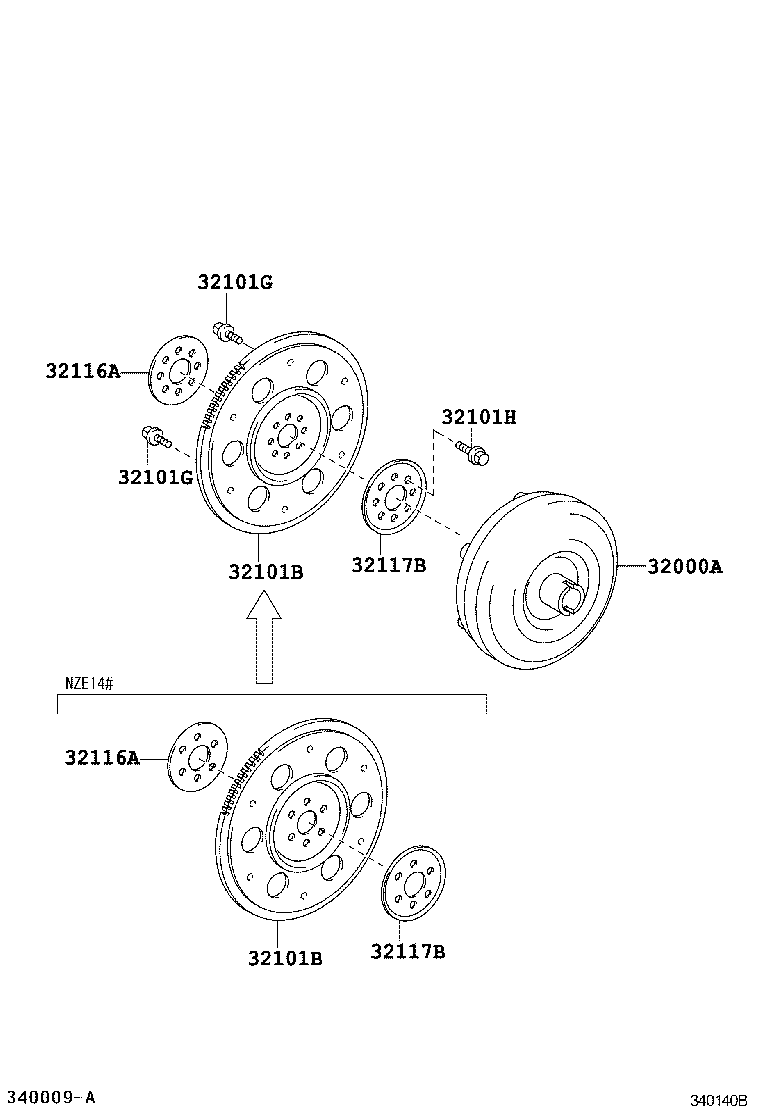

Click highlighted areas on diagram
K310,K311,K310F,K311F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000A - CONVERTER ASSY, TORQUE | ||||
| 32000-12410 |
NZE14#..CVFC |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-52021 |
NZE14#..CVFC |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-52021 |
NZE14#..CVFC |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08269 |
NZE14#,ZRE14#..CVFC *8−1.25PX12−8,ｲｴﾛ− OR ﾌﾞﾗｯｸ |
5 | ||
| 90109-08107 |
NZE14#,ZRE14#..CVFC *8−1.25PX12−8.4,ｸﾞﾘ−ﾝ OR ﾌﾞﾗｯｸ |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08269 |
NZE14#,ZRE14#..CVFC *8−1.25PX12−8,ｲｴﾛ− OR ﾌﾞﾗｯｸ |
5 | ||
| 90109-08107 |
NZE14#,ZRE14#..CVFC *8−1.25PX12−8.4,ｸﾞﾘ−ﾝ OR ﾌﾞﾗｯｸ |
1 | ||
| 32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
NZE14#..CVFC |
6 | ||
| 32116A - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-52030 |
NZE14#..CVFC |
1 | ||
| 32116A - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-52030 |
NZE14#..CVFC |
1 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-52030 |
NZE14#..CVFC |
1 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-52030 |
NZE14#..CVFC |
1 | ||
