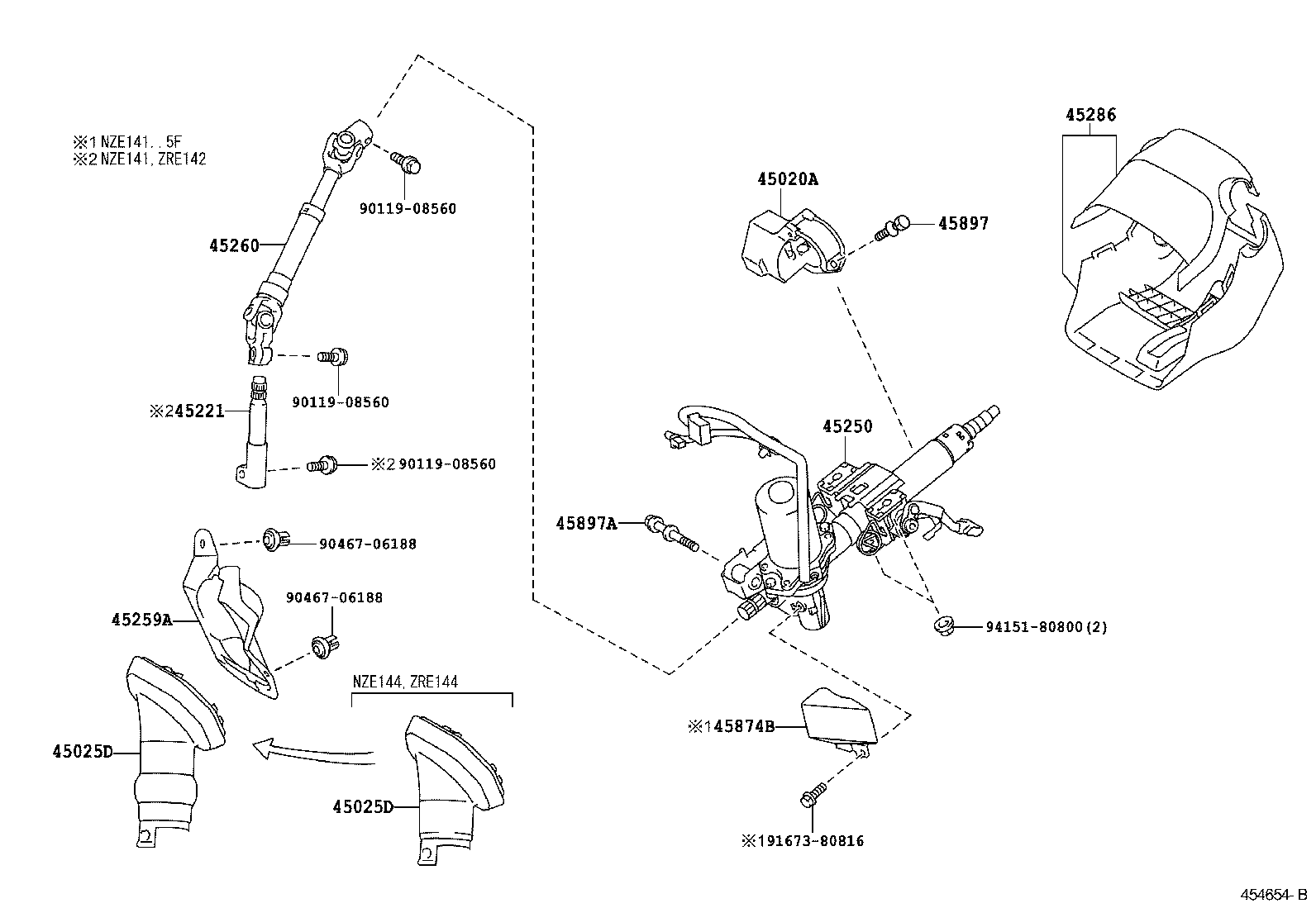

NZE141G-AWMNK (2006)
Toyota Corolla Axio/Fielder
(0609- )X ; (0810- )G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12310 |
NZE141,ZRE142 |
1 | ||
| 45025-12311 |
NZE141,ZRE142 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12310 |
NZE141,ZRE142 |
1 | ||
| 45025-12311 |
NZE141,ZRE142 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12350 |
NZE141,ZRE142 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-12B30 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車 |
1 | ||
| 45250-12D10 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45250-12B31 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車 |
1 | ||
| 45250-12B30 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 45250-12D21 |
NZE14#..X |
1 | ||
| 45250-12B32 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 45250-12B32 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車 |
1 | ||
| 45250-12B30 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45250-12D11 |
NZE14#..WG G EDITION |
1 | ||
| 45250-12B30 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45250-12D10 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45250-12D11 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45250-12D11 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45250-12B32 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45250-12B31 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45250-12D20 |
NZE14#..X |
1 | ||
| 45250-12B31 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45250-12D12 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45250-12B31 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 45250-12B32 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45250-12D22 |
NZE14#..X |
1 | ||
| 45250-12D10 |
NZE14#..WG G EDITION |
1 | ||
| 45250-12D12 |
NZE14#..WG G EDITION |
1 | ||
| 45250-12D12 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-12080 |
NZE141,ZRE142 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12590 |
NZE141,ZRE142 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-42140 |
NZE141..5F..X |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12983E0 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ,ASH BROWN,TRIM4# |
1 | ||
| 45286-12983B0 |
NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1# |
1 | ||
| 45286-12983B0 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 45286-12982E0 |
NZE14#..X ASH BROWN,TRIM4# |
1 | ||
| 45286-12983E0 |
NZE14#..WG G EDITION,ASH BROWN,TRIM4# |
1 | ||
| 45286-12982B0 |
NZE14#..X DK.GRAY,TRIM1# |
1 | ||
| 45286-12983E0 |
NZE14#,ZRE14#..G,LXL,S ASH BROWN,TRIM4# |
1 | ||
| 45286-12983B0 |
NZE14#..WG G EDITION,DK.GRAY,TRIM1# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-12100 |
NZE141..5F |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NZE14#,ZRE14# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0609- )CVFC ; (0609- )5F..G ; (0609- )WG..5F
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-42150 |
NZE14#..WG G EDITION |
1 | ||
| 45020-42150 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45020-42150 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45020-42150 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45020-42150 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12310 |
NZE141,ZRE142 |
1 | ||
| 45025-12311 |
NZE141,ZRE142 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12310 |
NZE141,ZRE142 |
1 | ||
| 45025-12311 |
NZE141,ZRE142 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12350 |
NZE141,ZRE142 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-12B30 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車 |
1 | ||
| 45250-12D10 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45250-12B31 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車 |
1 | ||
| 45250-12B30 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 45250-12D21 |
NZE14#..X |
1 | ||
| 45250-12B32 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 45250-12B32 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車 |
1 | ||
| 45250-12B30 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45250-12D11 |
NZE14#..WG G EDITION |
1 | ||
| 45250-12B30 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45250-12D10 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45250-12D11 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45250-12D11 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45250-12B32 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45250-12B31 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45250-12D20 |
NZE14#..X |
1 | ||
| 45250-12B31 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION |
1 | ||
| 45250-12D12 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 45250-12B31 |
NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 45250-12B32 |
NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION |
1 | ||
| 45250-12D22 |
NZE14#..X |
1 | ||
| 45250-12D10 |
NZE14#..WG G EDITION |
1 | ||
| 45250-12D12 |
NZE14#..WG G EDITION |
1 | ||
| 45250-12D12 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-12080 |
NZE141,ZRE142 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12590 |
NZE141,ZRE142 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12983E0 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ,ASH BROWN,TRIM4# |
1 | ||
| 45286-12983B0 |
NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1# |
1 | ||
| 45286-12983B0 |
NZE14#..WG ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1# |
1 | ||
| 45286-12982E0 |
NZE14#..X ASH BROWN,TRIM4# |
1 | ||
| 45286-12983E0 |
NZE14#..WG G EDITION,ASH BROWN,TRIM4# |
1 | ||
| 45286-12982B0 |
NZE14#..X DK.GRAY,TRIM1# |
1 | ||
| 45286-12983E0 |
NZE14#,ZRE14#..G,LXL,S ASH BROWN,TRIM4# |
1 | ||
| 45286-12983B0 |
NZE14#..WG G EDITION,DK.GRAY,TRIM1# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-12100 |
NZE141..5F |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NZE14#,ZRE14# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 94151-80800 | ||||
