NZE141G-AWMNK (2008)
Toyota Corolla Axio/Fielder

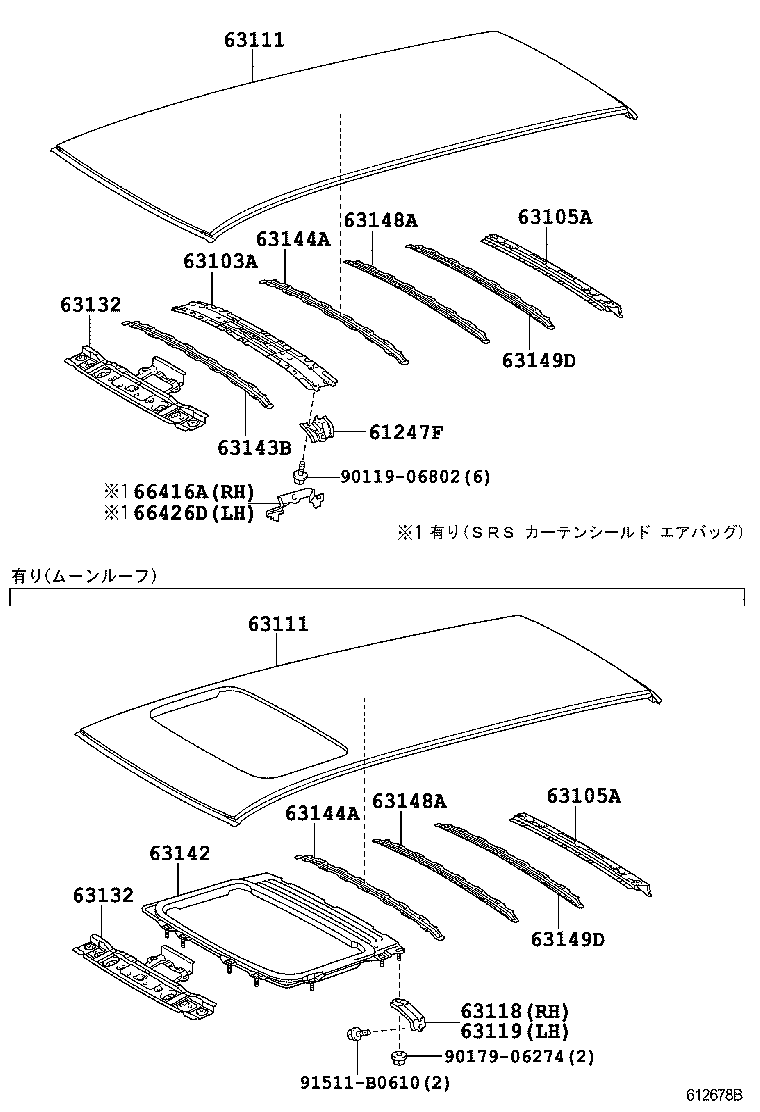

ILLUST NO. 1 OF 3(0609- )WG
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-12060 |
NZE14#,ZRE14# |
2 | ||
| 61247-12060 |
NZE14#,ZRE14# |
2 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-12110 |
NZE14#,ZRE14# |
1 | ||
| 63103-12110 |
NZE14#,ZRE14# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13220 |
NZE14#,ZRE14#..WG |
1 | ||
| 63105-13220 |
NZE14#,ZRE14#..WG |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13220 |
NZE14#,ZRE14#..WG |
1 | ||
| 63105-13220 |
NZE14#,ZRE14#..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13490 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111-13460 |
NZE14#,ZRE14#..WG |
1 | ||
| 63111-13460 |
NZE14#,ZRE14#..WG |
1 | ||
| 63111-13470 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63111-13480 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111-13470 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13490 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111-13460 |
NZE14#,ZRE14#..WG |
1 | ||
| 63111-13460 |
NZE14#,ZRE14#..WG |
1 | ||
| 63111-13470 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63111-13480 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111-13470 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-13030 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-13030 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-12270 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63102-12260 |
ZRE14#;NZE14#..WG |
1 | ||
| 63102-12270 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63102-12260 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-12270 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63102-12260 |
ZRE14#;NZE14#..WG |
1 | ||
| 63102-12270 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63102-12260 |
NZE14#..WG;NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-13110 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63142-13110 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12140 |
NZE14#,ZRE14# |
1 | ||
| 63143-12140 |
NZE14#,ZRE14# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-13050 |
NZE14#,ZRE14#..WG |
1 | ||
| 63144-13050 |
NZE14#,ZRE14#..WG |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-13050 |
NZE14#,ZRE14#..WG |
1 | ||
| 63144-13050 |
NZE14#,ZRE14#..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-13060 |
NZE14#,ZRE14#..WG |
1 | ||
| 63148-13060 |
NZE14#,ZRE14#..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-13060 |
NZE14#,ZRE14#..WG |
1 | ||
| 63148-13060 |
NZE14#,ZRE14#..WG |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-13040 |
NZE14#,ZRE14#..WG |
1 | ||
| 63149-13040 |
NZE14#,ZRE14#..WG |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-13040 |
NZE14#,ZRE14#..WG |
1 | ||
| 63149-13040 |
NZE14#,ZRE14#..WG |
1 | ||
| 66416A - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-12010 |
NZE14#,ZRE14# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 66416-12010 |
NZE14#,ZRE14# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 66426D - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-12010 |
NZE14#,ZRE14# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 66426-12010 |
NZE14#,ZRE14# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||

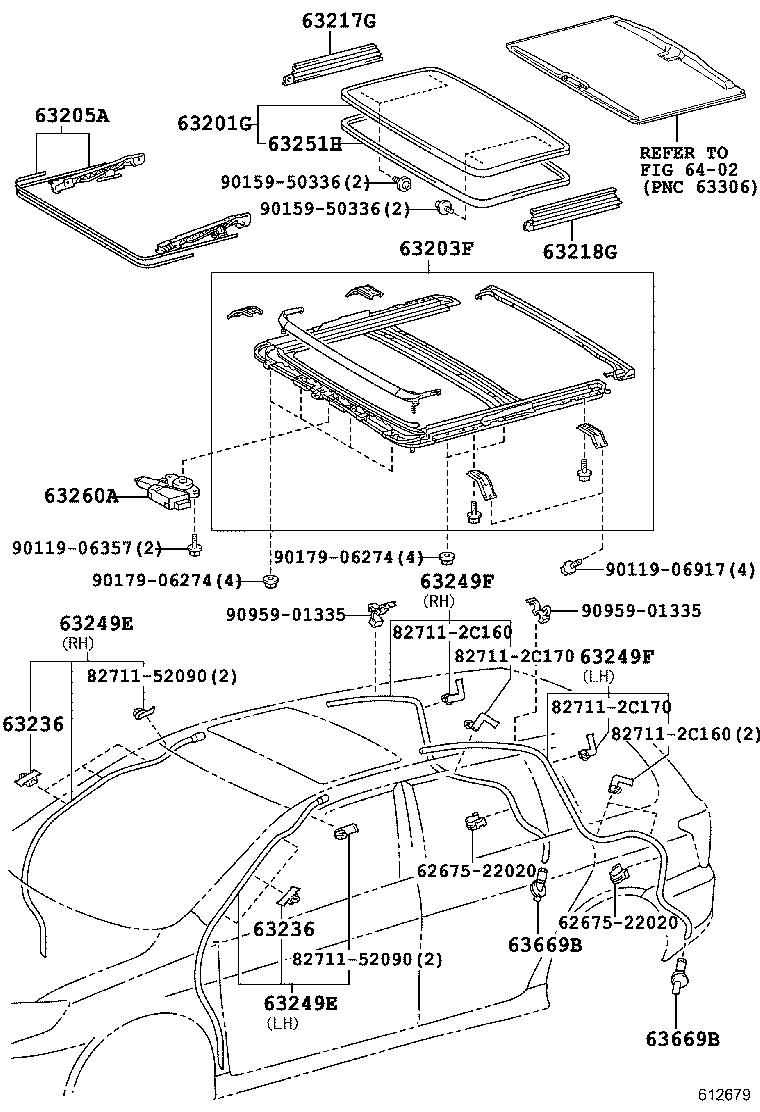

ILLUST NO. 2 OF 3(0609- )WG
ﾑｰﾝﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-13050 |
NZE14#,ZRE14#..WG *TEM,厚さ=4.0,ﾀﾞｰｸ ｸﾞﾚｰ,有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-13050 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-48010 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48030 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-12010 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
6 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-12010 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
6 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13160 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),左側 |
1 | ||
| 63249-13140 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),右側 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13160 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),左側 |
1 | ||
| 63249-13140 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),右側 |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13170 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),左側 |
1 | ||
| 63249-13150 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),右側 |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13170 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),左側 |
1 | ||
| 63249-13150 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ),右側 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-63010 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-13060 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26026 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26026 |
NZE14#,ZRE14#..WG 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
2 | ||
| Common parts | ||||
| 62675-22020 | ||||
| 82711-2C160 | ||||
| 82711-2C170 | ||||
| 82711-52090 | ||||
| 90119-06357 | ||||
| 90119-06917 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90959-01335 | ||||
| Linked diagrams | ||||
| 6402 | ||||

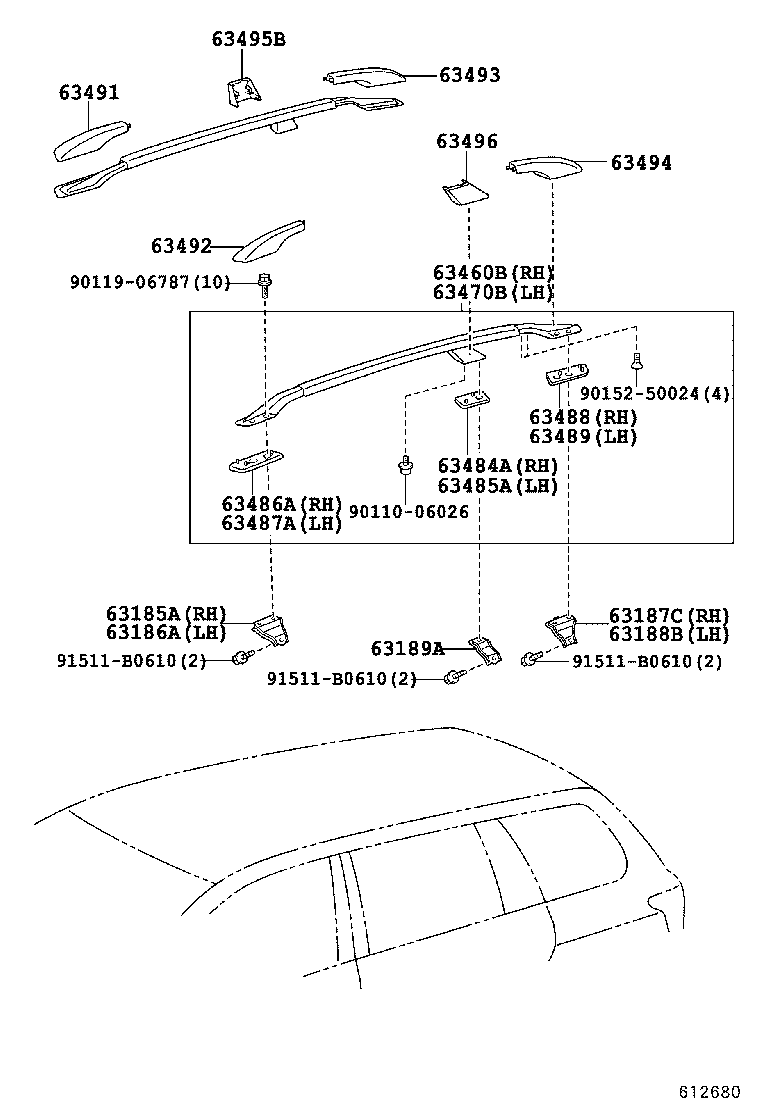

ILLUST NO. 3 OF 3(0609- )WG
ﾙｰﾌﾚｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13090 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63185-13090 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63185-13090 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13100 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63186-13100 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63186-13100 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-13040 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63187-13040 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63187-13040 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-13030 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63188-13030 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63188-13030 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
2 | ||
| 63189-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り&有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
2 | ||
| 63189-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
2 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-13140C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63460-13140B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63460-13140B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63460-13140C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-13140B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63470-13140B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63470-13140C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63470-13140C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63484-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63485-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63486-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63487-13070 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63488-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63489-13080 |
NZE14#,ZRE14#..WG ﾙｰﾌﾚｰﾙ−有り |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63491-13110C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63491-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63491-13110C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13110C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63492-13110C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63492-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63492-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13120B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63493-13120C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63493-13120C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63493-13120B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13120C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63494-13120B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63494-13120B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63494-13120C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63495-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| 63495-13110C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63495-13110C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-13110C1 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,BLACK,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,4Q2 ,4T4 ,6U6 ,8S6 ,8S7 |
1 | ||
| 63496-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 ,209 ,3R3 ,4T4 ,8S6 ,8S7 |
1 | ||
| 63496-13110C1 |
NZE141..WG..5F;ZRE14#..S..HTWC ﾙｰﾌﾚｰﾙ−有り,BLACK,209 ,3R3 ,4T3 ,5A5 ,8T7 |
1 | ||
| 63496-13110B0 |
NZE14#..WG ﾙｰﾌﾚｰﾙ−有り,SILVER ME.,040 ,070 ,1F7 |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90119-06787 | ||||
| 90152-50024 | ||||
| 91511-B0610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
