NZE141G-AWMNK (2008)
Toyota Corolla Axio/Fielder
Production
Oct 2008
-
Apr 2012
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0609- )NZE14#

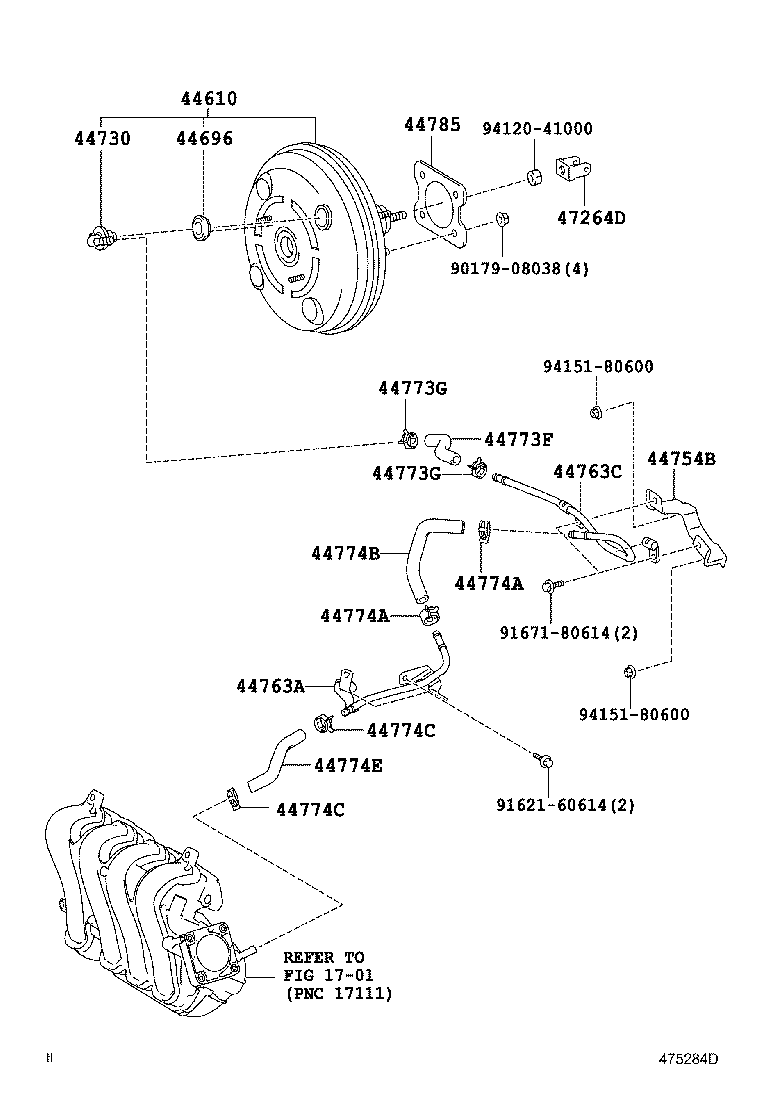

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12A30 |
NZE141..G;NZE141..WG;NZE144,ZRE14# |
1 | ||
| 44610-12A31 |
NZE141..WG;NZE144,ZRE14#..HTWC |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NZE14#,ZRE14#..HTWC |
1 | ||
| 90480-24439 |
NZE14#,ZRE14# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
NZE14#,ZRE14#..HTWC |
1 | ||
| 44730-12070 |
NZE14#,ZRE14# |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-12040 |
NZE14#,ZRE14# |
1 | ||
| 44754-12040 |
NZE14#,ZRE14# |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-52030 |
NZE14# |
1 | ||
| 44763-52030 |
NZE14# |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-12460 |
NZE14#,ZRE14# |
1 | ||
| 44763-12460 |
NZE14#,ZRE14# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12820 |
NZE14#,ZRE14# |
1 | ||
| 44773-12820 |
NZE14#,ZRE14# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 96133-41500 |
NZE14#,ZRE14# |
2 | ||
| 44774B - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12640 |
NZE14# |
1 | ||
| 44774-12640 |
NZE14# |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZE14# |
2 | ||
| 96133-41500 |
NZE14#;ZRE14#..HTWVM |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZE14# |
2 | ||
| 96133-41500 |
NZE14#;ZRE14#..HTWVM |
2 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52070 |
NZE14# |
1 | ||
| 44774-52070 |
NZE14# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
NZE14#,ZRE14# |
1 | ||
| 44785-12040 |
NZE14#,ZRE14# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63020 |
NZE14#,ZRE14# |
1 | ||
| 47264-63020 |
NZE14#,ZRE14# |
1 | ||
| 47264-68010 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91621-60614 | ||||
| 91671-80614 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
