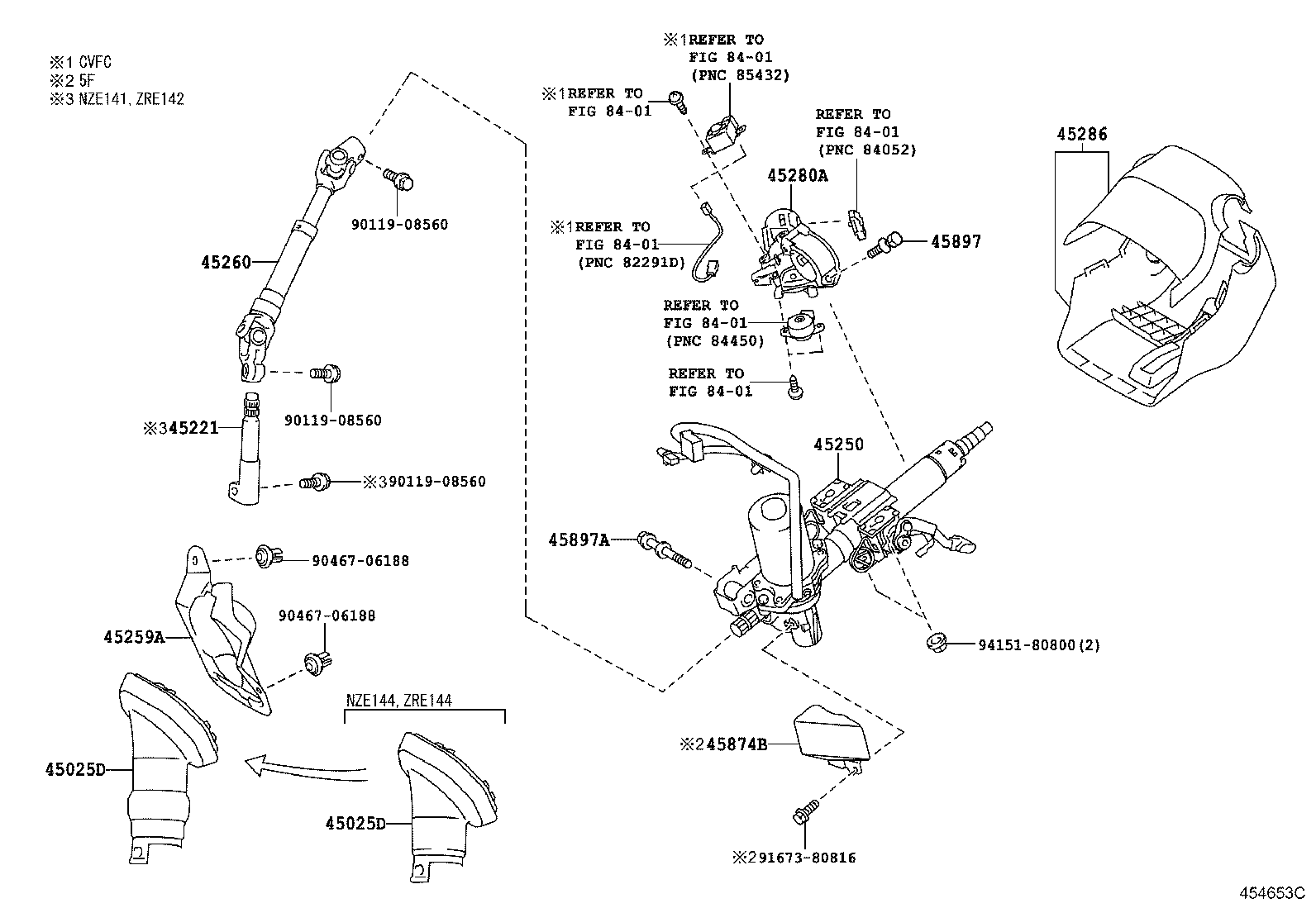

Toyota Corolla axio/fielder NZE141 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12311	NZE141,ZRE142	10/2008 - 04/2012	1
45025-12310	NZE141,ZRE142	09/2006 - 02/2008	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12311	NZE141,ZRE142	10/2008 - 04/2012	1
45025-12310	NZE141,ZRE142	09/2006 - 02/2008	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12350	NZE141,ZRE142	09/2006 - 10/2008	1
45221-12350	NZE141,ZRE142	10/2008 - 04/2012	1
45250 - COLUMN ASSY, STEERING
45250-12B30	NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車	09/2006 - 07/2007	1
45250-12D10	NZE14#,ZRE14#..G,LXL,S	09/2006 - 07/2007	1
45250-12B30	NZE14#..G ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ	09/2006 - 07/2007	1
45250-12B30	NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&G EDITION	09/2006 - 07/2007	1
45250-12B30	NZE14#..WG ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&G EDITION	09/2006 - 07/2007	1
45250-12D10	NZE14#..WG ｴｱﾛﾂｱﾗｰ	09/2006 - 07/2007	1
45250-12D20	NZE14#..X	09/2006 - 07/2007	1
45250-12B42	NZE14#..G;NZE14#..WG ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	03/2009 - 04/2012	1
45250-12D22	NZE14#	10/2008 - 02/2009	1
45250-12D10	NZE14#..WG G EDITION	09/2006 - 07/2007	1
45250-12B52	NZE14#	03/2009 - 04/2012	1
45250-12D12	NZE14#..G;NZE14#..WG ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	10/2008 - 02/2009	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12080	NZE141,ZRE142	09/2006 - 10/2008	1
45259-12080	NZE141,ZRE142	10/2008 - 04/2012	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12590	NZE141,ZRE142	10/2008 - 04/2012	1
45260-12590	NZE141,ZRE142	09/2006 - 10/2008	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-42140	NZE141..5F..X	09/2006 - 10/2008	1
45280-42140	NZE141..5F	10/2008 - 04/2012	1
45286 - COVER, STEERING COLUMN
45286-12983E0	NZE14#..WG ｴｱﾛﾂｱﾗｰ,ASH BROWN,TRIM4#	09/2006 - 10/2008	1
45286-12983B0	NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1#	09/2006 - 10/2008	1
45286-12983B0	NZE14#..WG ｴｱﾛﾂｱﾗｰ,DK.GRAY,TRIM1#	09/2006 - 10/2008	1
45286-12983B0	NZE14#..G;NZE14#..WG ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),DK.GRAY,TRIM1#	10/2008 - 04/2012	1
45286-12982E0	NZE14#..X ASH BROWN,TRIM4#	09/2006 - 10/2008	1
45286-12982B0	NZE14# DK.GRAY,TRIM1#	10/2008 - 04/2012	1
45286-12983E0	NZE14#..WG G EDITION,ASH BROWN,TRIM4#	09/2006 - 10/2008	1
45286-12982B0	NZE14#..X DK.GRAY,TRIM1#	09/2006 - 10/2008	1
45286-12983E0	NZE14#..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),ASH BROWN,TRIM4#	10/2008 - 04/2012	1
45286-12983E0	NZE14#,ZRE14#..G,LXL,S ASH BROWN,TRIM4#	09/2006 - 10/2008	1
45286-12983B0	NZE14#..WG G EDITION,DK.GRAY,TRIM1#	09/2006 - 10/2008	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-12100	NZE141..5F	09/2006 - 10/2008	1
45874-12100	NZE141..5F	10/2008 - 04/2012	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NZE14#,ZRE14#	09/2006 - 10/2008	1
45897-12020	NZE14#,ZRE14#	10/2008 - 04/2012	1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010	NZE14#,ZRE14#	10/2008 - 04/2012	1
45897-42010	NZE14#,ZRE14#	09/2006 - 10/2008	1
Common parts
90119-08560
90467-06188
91673-80816
94151-80800
Linked diagrams
8401

NZE141G-AWMNK (2008)

(0609- )X ; (0810- )G
