NZE141-AEXNK (2006)
Toyota Corolla Axio/Fielder
ILLUST NO. 1 OF 2(0609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-12130B0 |
NZE14#..X DK.GRAY,TRIM12,13 |
1 | ||
| 55302-12131E0 |
NZE14#,ZRE14#..G,LXL,X ASH BROWN,TRIM4# |
1 | ||
| 55302-12130E0 |
NZE14#,ZRE14#..G,LXL,X ASH BROWN,TRIM4# |
1 | ||
| 55302-12130B0 |
NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1# |
1 | ||
| 55302-12131B0 |
NZE14#,ZRE14# DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-12360B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55303-12360B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55303-12360E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12370 |
NZE14#,ZRE14# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12320 |
NZE14#,ZRE14# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-12100B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55317-12100B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55317-12100E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-12090B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55318-12090E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55318-12090B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12750 |
NZE14#,ZRE14# |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-12070 |
NZE14#,ZRE14# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-12110 |
NZE14#,ZRE14# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-12150 |
NZE141..SED..X HIDｾﾚｸｼｮﾝ&DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55356-12150 |
NZE141..SED..X DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55356-12150 |
NZE141..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 55356-12150 |
NZE144;NZE141,ZRE14#..G,LXL,S |
1 | ||
| 55356-12150 |
NZE141..SED..X HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 55356-12150 |
NZE141..X X“Special Edition” *(K) |
1 | ||
| 55356-12150 |
NZE141..SED..X X“Special Edition” *(K)&DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-12090 |
NZE144;NZE141,ZRE14#..G,LXL,S |
1 | ||
| 55357-12090 |
NZE141..SED..X HIDｾﾚｸｼｮﾝ&DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55357-12090 |
NZE141..SED..X HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 55357-12090 |
NZE141..SED..X DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55357-12090 |
NZE141..X X“Special Edition” *(K) |
1 | ||
| 55357-12090 |
NZE141..SED..X X“Special Edition” *(K)&DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55357-12090 |
NZE141..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-12080 |
NZE141..SED..X HIDｾﾚｸｼｮﾝ&DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55358-12080 |
NZE141..X X“Special Edition” *(K) |
1 | ||
| 55358-12080 |
NZE141..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 55358-12080 |
NZE141..SED..X DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55358-12080 |
NZE144;NZE141,ZRE14#..G,LXL,S |
1 | ||
| 55358-12080 |
NZE141..SED..X X“Special Edition” *(K)&DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55358-12080 |
NZE141..SED..X HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-12080 |
NZE14#,ZRE14# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12230B0 |
NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1# |
1 | ||
| 55961-12230B0 |
NZE14#..X DK.GRAY,TRIM12,13 |
1 | ||
| 55961-12230B0 |
NZE14#..X DK.GRAY,TRIM1# |
1 | ||
| 55961-12230E0 |
NZE14#,ZRE14#..G,LXL,X ASH BROWN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12200B0 |
NZE14#..X DK.GRAY,TRIM1# |
1 | ||
| 55962-12200B0 |
NZE14#..X DK.GRAY,TRIM12,13 |
1 | ||
| 55962-12200B0 |
NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1# |
1 | ||
| 55962-12200E0 |
NZE14#,ZRE14#..G,LXL,X ASH BROWN,TRIM4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-12170 |
NZE14#..X |
1 | ||
| 55981-12160 |
NZE14#..SED..X X“Special Edition” *(K) |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12120 |
NZE14#,ZRE14# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-1A200 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-60431 | ||||
| 90159-60610 | ||||
| 90159-70004 | ||||
| 90183-05094 | ||||
| 90183-06025 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

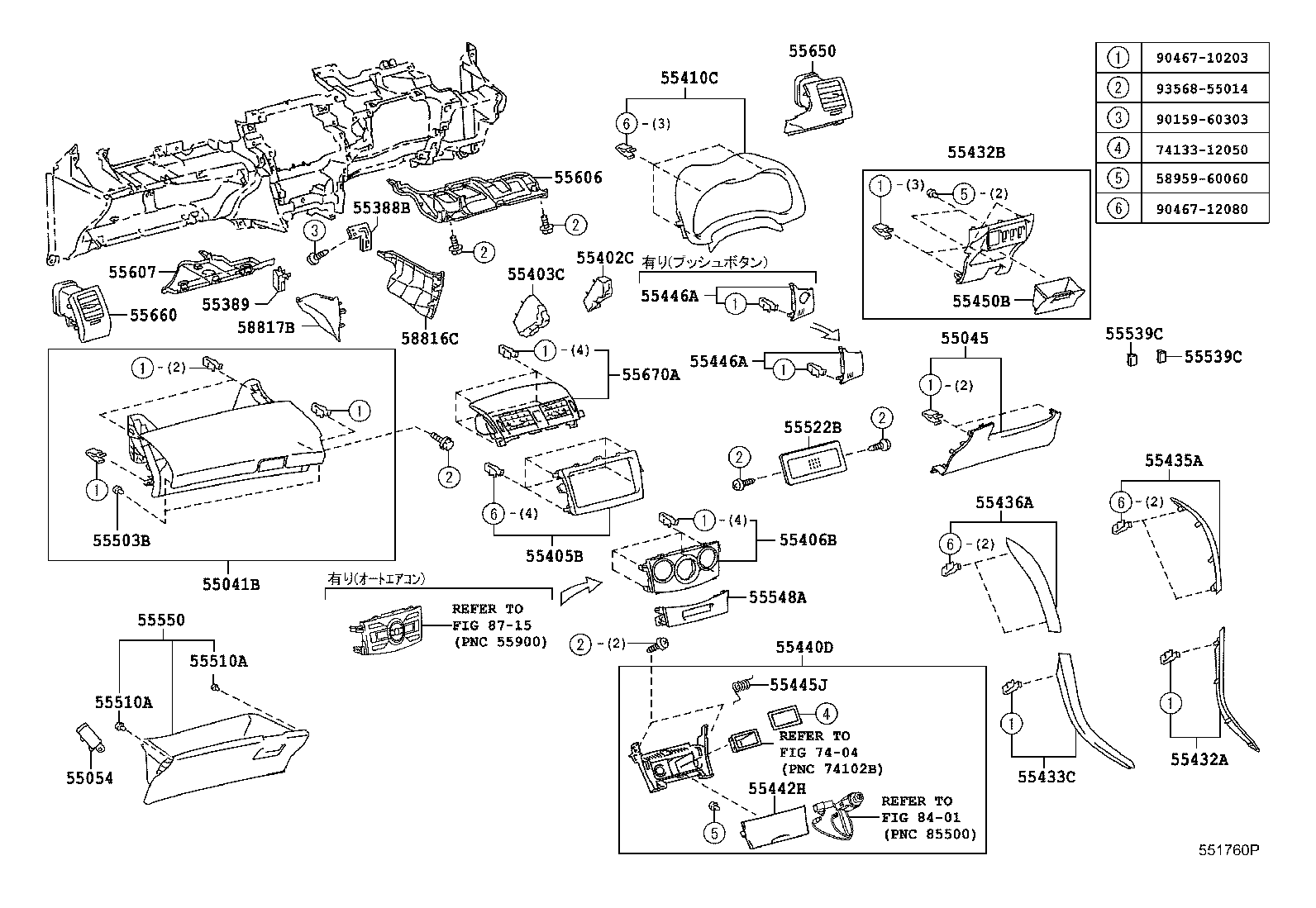

ILLUST NO. 2 OF 2(0609-0810)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-12060B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55041-12060E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55041-12060B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-12370B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55045-12370E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55045-12370B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12030 |
NZE14#,ZRE14# |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55389-42020 |
NZE14#,ZRE14# |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55388-42020 |
NZE14#,ZRE14# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-12020 |
NZE14#,ZRE14# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-12070 |
NZE14#,ZRE14# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12A30 |
NZE14#..SED..X ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 55405-12A31 |
NZE14#..SED DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ |
1 | ||
| 55405-12A31 |
NZE14#..SED ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 55405-12A31 |
NZE14#..SED..X ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-12440 |
NZE14#..X |
1 | ||
| 55406-12440 |
NZE14#..X ｵｰﾄｴｱｺﾝ |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12A30B0 |
NZE14#..X DK.GRAY,TRIM12,13 |
1 | ||
| 55410-12A30E0 |
NZE14#,ZRE14#..G,LXL,X ASH BROWN,TRIM4# |
1 | ||
| 55410-12A30B0 |
NZE14#,ZRE14#..G,LXL,S DK.GRAY,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-12480 |
NZE14#,ZRE14# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-12020B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55480-12020B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55480-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-12220 |
NZE14#,ZRE14# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-12120 |
NZE14#,ZRE14# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12090 |
NZE14#,ZRE14# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-12130E1 |
NZE14#..SED..X X“Special Edition” *(K),LT.BROWN,TRIM4# |
1 | ||
| 55440-12110 |
NZE14# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12110E1 |
NZE14#..SED..X X“Special Edition” *(K),LT.BROWN,TRIM4# |
1 | ||
| 55442-12100 |
NZE14# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-12100 |
NZE14#,ZRE14# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12150B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55446-12150B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55446-12150E0 |
NZE14#..X GREGE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12150B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55446-12150B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55446-12150E0 |
NZE14#..X GREGE,TRIM4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-12020B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55450-12020E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55450-12020B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NZE14#,ZRE14# |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
NZE14#,ZRE14# |
2 | ||
| 55557-53030 |
NZE14#,ZRE14# |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
NZE14#,ZRE14# |
2 | ||
| 55557-53030 |
NZE14#,ZRE14# |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NZE14#..SED..X ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 55522-52020 |
NZE14#..SED ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NZE14#..X 寒冷地仕様,DK.GRAY,TRIM12 |
1 | ||
| 55539-52060B1 |
NZE14#..X GRAY,TRIM13 |
2 | ||
| 55539-52060B1 |
NZE14#..X 寒冷地仕様,GRAY,TRIM13 |
1 | ||
| 55539-52060B0 |
NZE14#..X DK.GRAY,TRIM12 |
2 | ||
| 55539-52060E0 |
NZE14#,ZRE14#..G,LXL,X 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
NZE14#,ZRE14#..LXL,X GREGE,TRIM4# |
2 | ||
| 55539-52060E0 |
NZE14#..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,GREGE,TRIM4# |
3 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NZE14#..X 寒冷地仕様,DK.GRAY,TRIM12 |
1 | ||
| 55539-52060B1 |
NZE14#..X GRAY,TRIM13 |
2 | ||
| 55539-52060B1 |
NZE14#..X 寒冷地仕様,GRAY,TRIM13 |
1 | ||
| 55539-52060B0 |
NZE14#..X DK.GRAY,TRIM12 |
2 | ||
| 55539-52060E0 |
NZE14#,ZRE14#..G,LXL,X 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
NZE14#,ZRE14#..LXL,X GREGE,TRIM4# |
2 | ||
| 55539-52060E0 |
NZE14#..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,GREGE,TRIM4# |
3 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12110 |
NZE14# |
1 | ||
| 55548-12130E1 |
NZE14#..SED..X X“Special Edition” *(K),LT.BROWN,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12470E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 55550-12470B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55550-12470B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12061 |
NZE14# 寒冷地仕様 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12390E0 |
NZE14#..X GREGE,TRIM4# |
1 | ||
| 55650-12390B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55650-12380E0 |
NZE14#..SED..X X“Special Edition” *(K),GREGE,TRIM4# |
1 | ||
| 55650-12390B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12420B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 55660-12420E0 |
NZE14#..X GREGE,TRIM4# |
1 | ||
| 55660-12410E0 |
NZE14#..SED..X X“Special Edition” *(K),GREGE,TRIM4# |
1 | ||
| 55660-12420B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12390 |
NZE14#,ZRE14#..G,LXL,S |
1 | ||
| 55670-12400 |
NZE14#..X |
1 | ||
| 55670-12390 |
NZE14#..X X“Special Edition” *(K) |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-12060B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 58816-12061B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| 58816-12060B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 58816-12061E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 58816-12060E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-12111E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 58817-12110E0 |
NZE14#,ZRE14#..G,LXL,X GREGE,TRIM4# |
1 | ||
| 58817-12110B0 |
NZE14#..X DK.GRAY,TRIM12 |
1 | ||
| 58817-12110B1 |
NZE14#..X GRAY,TRIM13 |
1 | ||
| 58817-12111B1 |
NZE14#,ZRE14#..SED GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 74133-12050 | ||||
| 90159-60303 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
