NZE141-AEXNK (2006)
Toyota Corolla Axio/Fielder
ILLUST NO. 1 OF 2(0609- )1NZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16057-21010 |
1NZFE..NZE14# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
1NZFE..NZE14# |
1 | ||
| 16361 - FAN | ||||
| 16361-21110 |
1NZFE..NZE14# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22120 |
1NZFE..NZE14# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-21180 |
1NZFE..NZE14# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16417-21280 |
1NZFE..NZE14# NO.2 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16417-21280 |
1NZFE..NZE14# NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NZE14# NO.2 |
1 | ||
| 16418-20290 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NZE14# NO.2 |
1 | ||
| 16418-20290 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1NZFE..NZE14# |
1 | ||
| 16401-20353 |
1NZFE..NZE14# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-21020 |
1NZFE..NZE14# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
1NZFE..NZE14# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-21060 |
1NZFE..NZE14# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21050 |
1NZFE..NZE14# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21030 |
1NZFE..NZE14# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-21050 |
1NZFE..NZE14# |
2 | ||
| 16535-21090 |
1NZFE..NZE14# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1NZFE..NZE14# NO.2 |
1 | ||
| 96136-43901 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1NZFE..NZE14# NO.2 |
1 | ||
| 96136-43901 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-21130 |
1NZFE..NZE14# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21100 |
1NZFE..NZE14# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-43901 |
1NZFE..NZE14# NO.1 |
1 | ||
| 96136-44301 |
1NZFE..NZE14# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-43901 |
1NZFE..NZE14# NO.1 |
1 | ||
| 96136-44301 |
1NZFE..NZE14# NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-21080 |
1NZFE..NZE14# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1NZFE..NZE14# NO.2 |
1 | ||
| 90466-35001 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1NZFE..NZE14# NO.2 |
1 | ||
| 90466-35001 |
1NZFE..NZE14# NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-21140 |
1NZFE..NZE14# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-21010 |
1NZFE..NZE14# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06448 | ||||
| 91511-B0614 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||

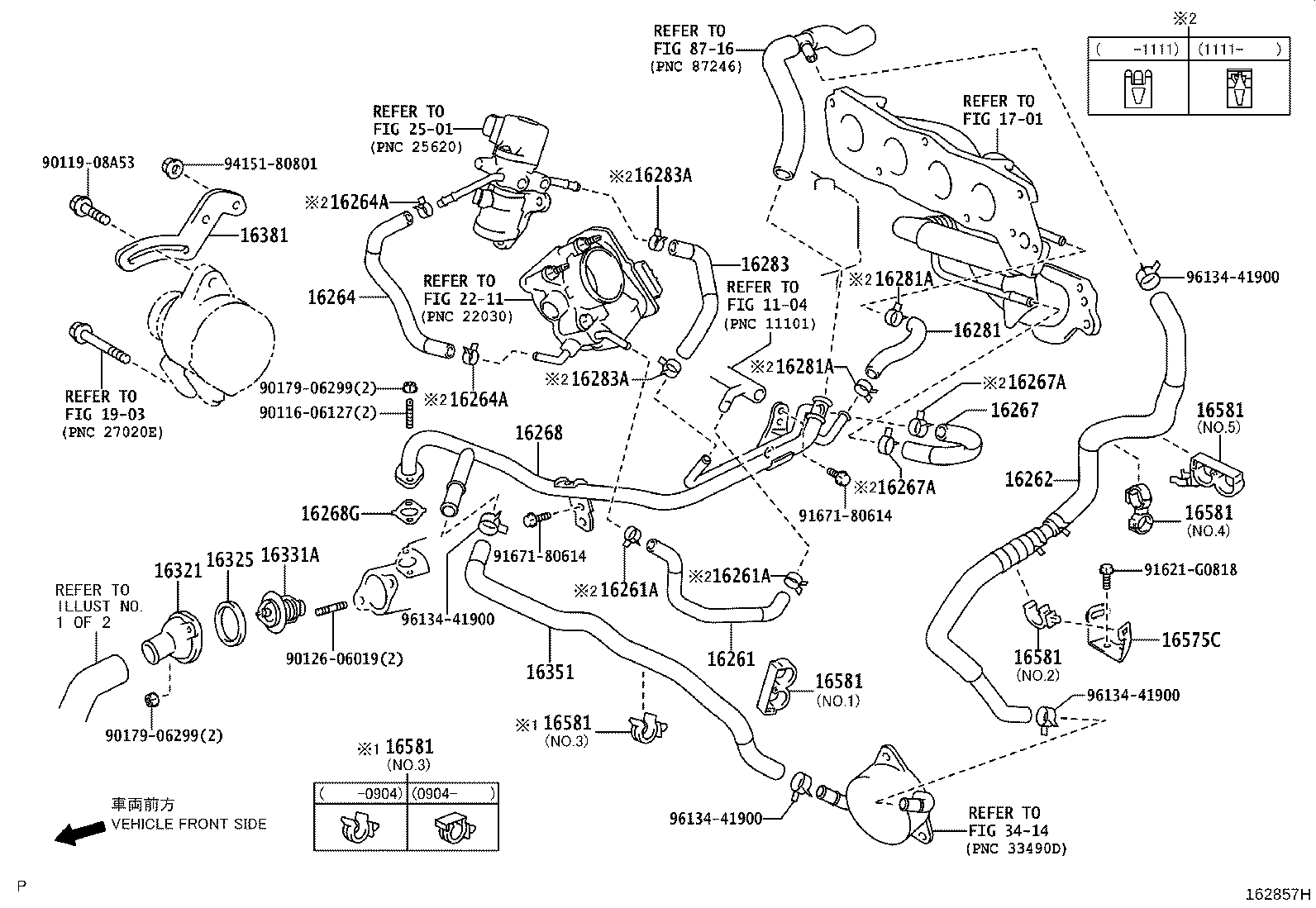

ILLUST NO. 2 OF 2(0609- )1NZFE..CVFC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-21070 |
1NZFE..NZE14# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-21040 |
1NZFE..NZE14#..CVFC |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21060 |
1NZFE..NZE14# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-21020 |
1NZFE..NZE14# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21050 |
1NZFE..NZE14# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21020 |
1NZFE..NZE14# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-21020 |
1NZFE..NZE14# |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-21010 |
1NZFE..NZE14# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13054 |
1NZFE..NZE14# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-21020 |
1NZFE..NZE14# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NZFE..NZE14# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03126 |
1NZFE..NZE14# *WAX 88−100 |
1 | ||
| 90916-03142 |
1NZFE..NZE14# *WAX 88−100 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-21010 |
1NZFE..NZE14#..CVFC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-21040 |
1NZFE..NZE14# |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-21020 |
1NZFE..NZE14#..CVFC |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1NZFE..NZE14#..CVFC NO.4 |
1 | ||
| 16581-21020 |
1NZFE..NZE14#..CVFC NO.1 |
1 | ||
| 16581-21080 |
1NZFE..NZE14#..CVFC NO.5 |
1 | ||
| 16581-21030 |
1NZFE..NZE14#..CVFC NO.2 & NO.3 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1NZFE..NZE14#..CVFC NO.4 |
1 | ||
| 16581-21020 |
1NZFE..NZE14#..CVFC NO.1 |
1 | ||
| 16581-21080 |
1NZFE..NZE14#..CVFC NO.5 |
1 | ||
| 16581-21030 |
1NZFE..NZE14#..CVFC NO.2 & NO.3 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1NZFE..NZE14#..CVFC NO.4 |
1 | ||
| 16581-21020 |
1NZFE..NZE14#..CVFC NO.1 |
1 | ||
| 16581-21080 |
1NZFE..NZE14#..CVFC NO.5 |
1 | ||
| 16581-21030 |
1NZFE..NZE14#..CVFC NO.2 & NO.3 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1NZFE..NZE14#..CVFC NO.4 |
1 | ||
| 16581-21020 |
1NZFE..NZE14#..CVFC NO.1 |
1 | ||
| 16581-21080 |
1NZFE..NZE14#..CVFC NO.5 |
1 | ||
| 16581-21030 |
1NZFE..NZE14#..CVFC NO.2 & NO.3 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1NZFE..NZE14#..CVFC NO.4 |
1 | ||
| 16581-21020 |
1NZFE..NZE14#..CVFC NO.1 |
1 | ||
| 16581-21080 |
1NZFE..NZE14#..CVFC NO.5 |
1 | ||
| 16581-21030 |
1NZFE..NZE14#..CVFC NO.2 & NO.3 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1NZFE..NZE14#..CVFC NO.4 |
1 | ||
| 16581-21020 |
1NZFE..NZE14#..CVFC NO.1 |
1 | ||
| 16581-21080 |
1NZFE..NZE14#..CVFC NO.5 |
1 | ||
| 16581-21030 |
1NZFE..NZE14#..CVFC NO.2 & NO.3 |
2 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06019 | ||||
| 90179-06299 | ||||
| 91621-G0818 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 1903 | ||||
| 2211 | ||||
| 2501 | ||||
| 3414 | ||||
| 8716 | ||||
