NZE141-AEXEK (2006)

Toyota Corolla Axio/Fielder

Production Sep 2006 - Oct 2008
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0609- )SED

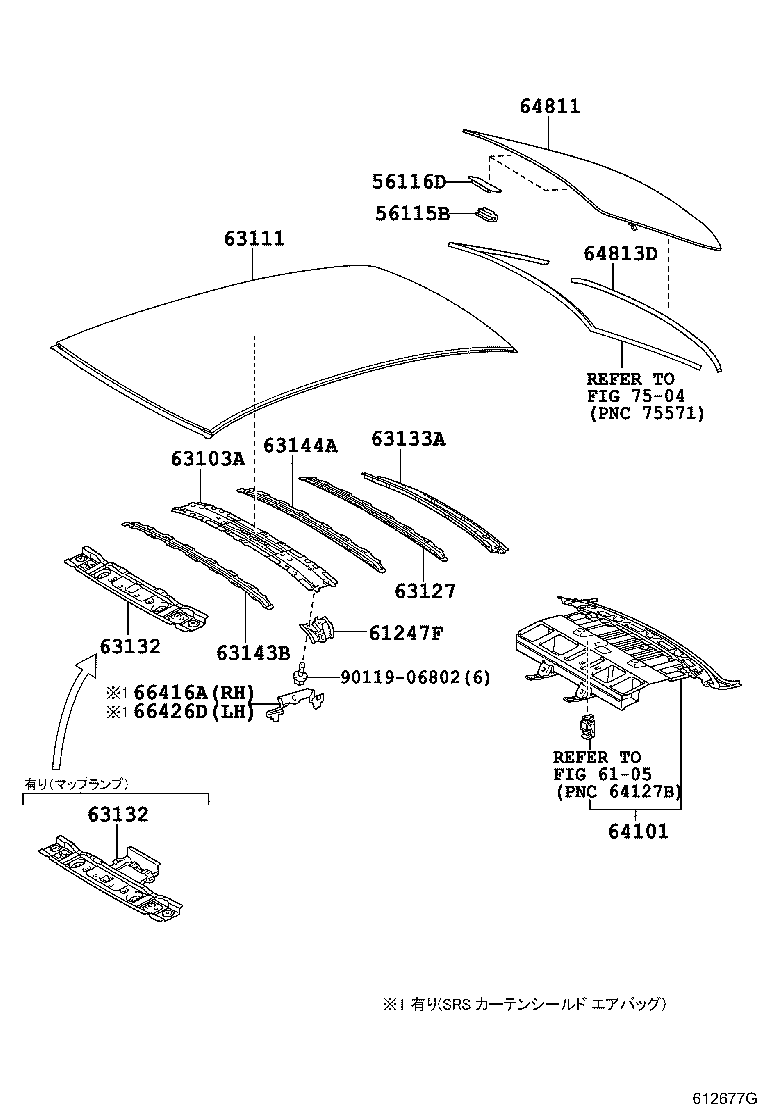

Click highlighted areas on diagram

diagram 56115B 56116D 6105 61247F 63103A 63111 63127 63132 63132 63133A 63143B 63144A 64101 64811 64813D 66416A 66426D 7504 9011906802
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100

NZE14#,ZRE14#..SED

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

NZE14#,ZRE14#..SED

 2
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-12060

NZE14#,ZRE14#

 2
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-12110

NZE14#,ZRE14#

 1
63111 - PANEL, ROOF
63111-12890

NZE14#,ZRE14#..SED

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-12020

NZE14#,ZRE14#..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12260

NZE14#..SED

HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
63132-12350

NZE14#..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12260

NZE14#..SED

HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
63132-12350

NZE14#..SED

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12330

NZE14#,ZRE14#..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12140

NZE14#,ZRE14#

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12120

NZE14#,ZRE14#..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12850

NZE14#..SED

 1
64811 - GLASS, BACK WINDOW
64811-12A50

NZE14#..SED

*UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
64811-12A60

NZE14#..SED

*UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
64811-12A60

NZE14#..SED

*UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ,DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-12190

NZE14#,ZRE14#..SED

 1
66416A - SPACER, SIDE RAIL, REAR NO.3 RH
66416-12010

NZE14#..SED

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
66416-12010

NZE14#,ZRE14#

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
66426D - SPACER, SIDE RAIL, REAR NO.3 LH
66426-12010

NZE14#,ZRE14#

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
66426-12010

NZE14#..SED

SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
Common parts
90119-06802
Linked diagrams
6105
7504
