NZE141-AEMNK (2006)

Toyota Corolla Axio/Fielder

Production Sep 2006 - Oct 2008
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0609- )SED

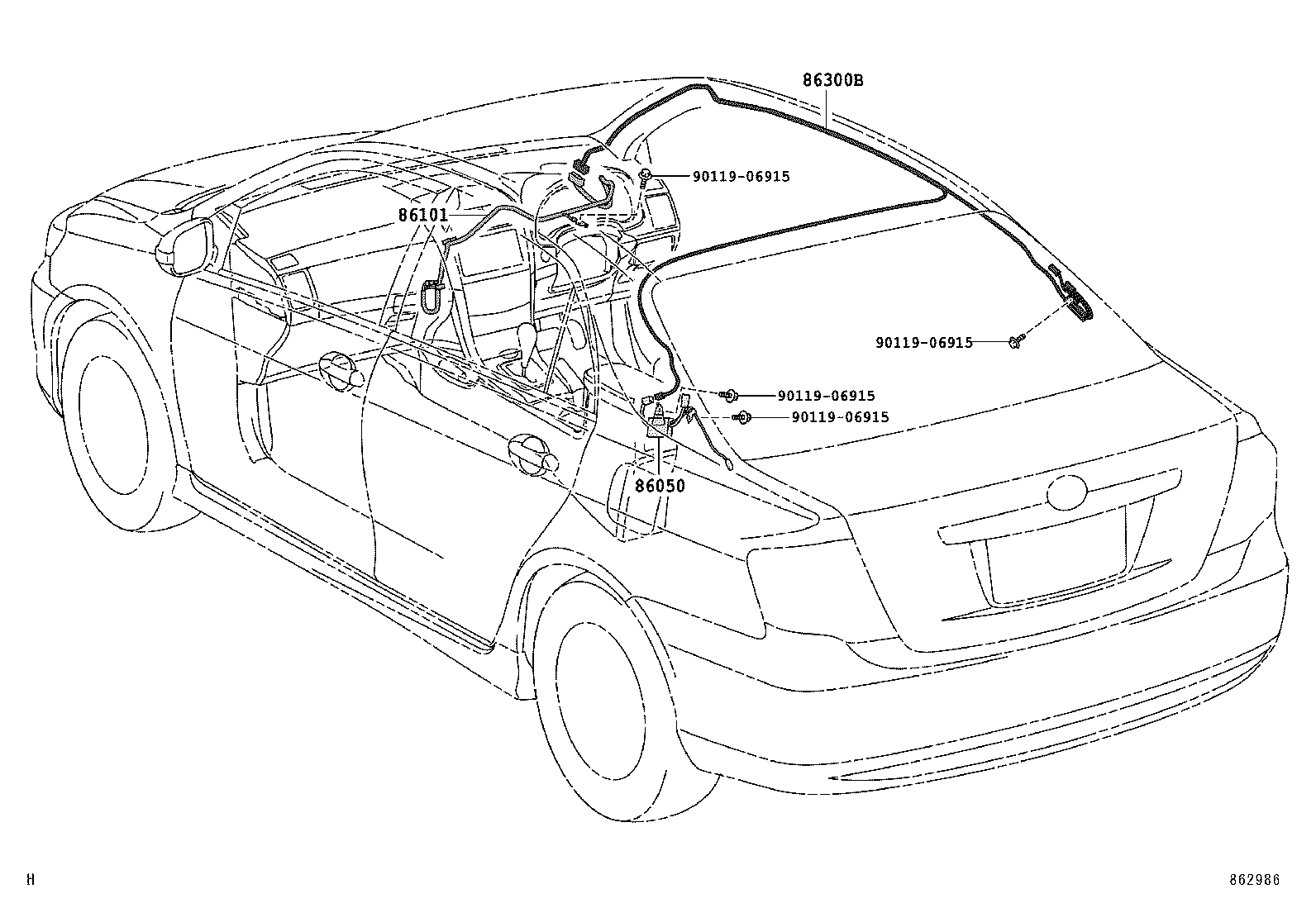

Click highlighted areas on diagram

diagram 86050 86101 86300B 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-12050

NZE14#,ZRE14#..SED

HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
86050-12050

NZE14#..SED

DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-12550

NZE14#,ZRE14#

 1
86101-12600

ZRE14#;NZE14#..SED

HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
86101-12600

NZE14#..SED

DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-12880

NZE14#..SED

DVDﾅﾋﾞｹﾞｰｼｮﾝ CD 4ｽﾋﾟｰｶ

 1
86300-12880

NZE14#,ZRE14#..SED

HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ

 1
86300-12870

NZE14#,ZRE14#..SED

 1
Common parts
90119-06915
