NZE141-AEMNK (2006)
Toyota Corolla Axio/Fielder
ILLUST NO. 1 OF10(0609- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1AT40 |
NZE141..SED..5F..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 82111-1AT50 |
NZE141..SED..5F..X HIDｾﾚｸｼｮﾝ&寒冷地仕様 |
1 | ||
| 82111-1AQ80 |
NZE141..SED..5F 寒冷地仕様 |
1 | ||
| 82111-1AQ90 |
NZE141..SED..5F |
1 | ||
| 82111-1EF80 |
NZE141..SED..5F..X X“Special Edition” *(K) |
1 | ||
| 82111-1EF70 |
NZE141..SED..5F..X X“Special Edition” *(K)&寒冷地仕様 |
1 | ||
| 82111-1AT40 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82111−1AT40 |
1 | ||
| 82111-1AT50 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82111−1AT50 |
1 | ||
| 82111-1AQ90 |
NZE141..SED..5F 品番ﾗﾍﾞﾙ=82111−1AQ90 |
1 | ||
| 82111-1EF80 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82111−1EF80 |
1 | ||
| 82111-1EF70 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82111−1EF70 |
1 | ||
| 82111-1AQ80 |
NZE141..SED..5F 品番ﾗﾍﾞﾙ=82111−1AQ80 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12250 |
NZE14#,ZRE14# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12260 |
NZE14#,ZRE14# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-12330 |
NZE14#,ZRE14# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12D50 |
NZE14#,ZRE14# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12D60 |
NZE14#,ZRE14# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12E90 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(0609- )5F
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12F10 |
NZE141..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12440 |
NZE14#,ZRE14# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-12470 |
NZE141..5F |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NZE14# |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
NZE14#,ZRE14# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12C00 |
NZE14# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12C10 |
NZE141..5F |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12D30 |
NZE14#,ZRE14# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12860 |
NZE14# |
2 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-52380 |
NZE14# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
NZE14#,ZRE14# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
NZE14#,ZRE14# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NZE14#,ZRE14# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 82815-12210 | ||||
| 82815-12220 | ||||
| 82815-12230 | ||||
| 90119-06915 | ||||
| 91552-81014 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF10(0609- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1HR60 |
NZE141..SED..5F..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 82141-1HF70 |
NZE141..SED..5F..X |
1 | ||
| 82141-1HF80 |
NZE141..SED..5F..X HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 82141-1KX60 |
NZE141..SED..5F..X X“Special Edition” *(K) |
1 | ||
| 82141-1HR60 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82141−1HR50 OR −1HR60 |
1 | ||
| 82141-1HF70 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82141−1EQ20 OR −1HF70 |
1 | ||
| 82141-1HF80 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82141−1EQ30 OR −1HF80 |
1 | ||
| 82141-1KX60 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82141−1KX10 OR −1KX60 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12350 |
NZE14#,ZRE14# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
NZE14#,ZRE14# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
NZE14#,ZRE14# |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12430 |
NZE14#,ZRE14# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-12450 |
NZE141,ZRE142 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12310 |
NZE14#,ZRE14# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12E20 |
NZE14#,ZRE14# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12E40 |
NZE14#,ZRE14# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12E60 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60613 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0609- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12L60 |
NZE14#..SED..X HIDｾﾚｸｼｮﾝ&寒冷地仕様 |
1 | ||
| 82151-12L60 |
NZE14#..SED..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 82151-12F90 |
NZE14#..SED..X 寒冷地仕様&HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 82151-12F60 |
NZE14#..SED..X |
1 | ||
| 82151-12F80 |
NZE14#..SED..X 寒冷地仕様 |
1 | ||
| 82151-12F70 |
NZE14#..SED..X HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12L30 |
NZE14#..SED..X HIDｾﾚｸｼｮﾝ |
1 | ||
| 82152-12F30 |
NZE14#..SED..X |
1 | ||
| 82152-12F50 |
NZE14#..SED..X 寒冷地仕様 |
1 | ||
| 82152-12L30 |
NZE14#..SED..X HIDｾﾚｸｼｮﾝ&寒冷地仕様 |
1 | ||
| 82152-12F60 |
NZE14#..SED..X 寒冷地仕様&HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 82152-12F40 |
NZE14#..SED..X HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12630 |
NZE14#..SED..X ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82153-12620 |
NZE14#,ZRE14# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12580 |
NZE14#,ZRE14# |
1 | ||
| 82154-12590 |
NZE14#..SED..X ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 5 OF10(0609- )SED
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

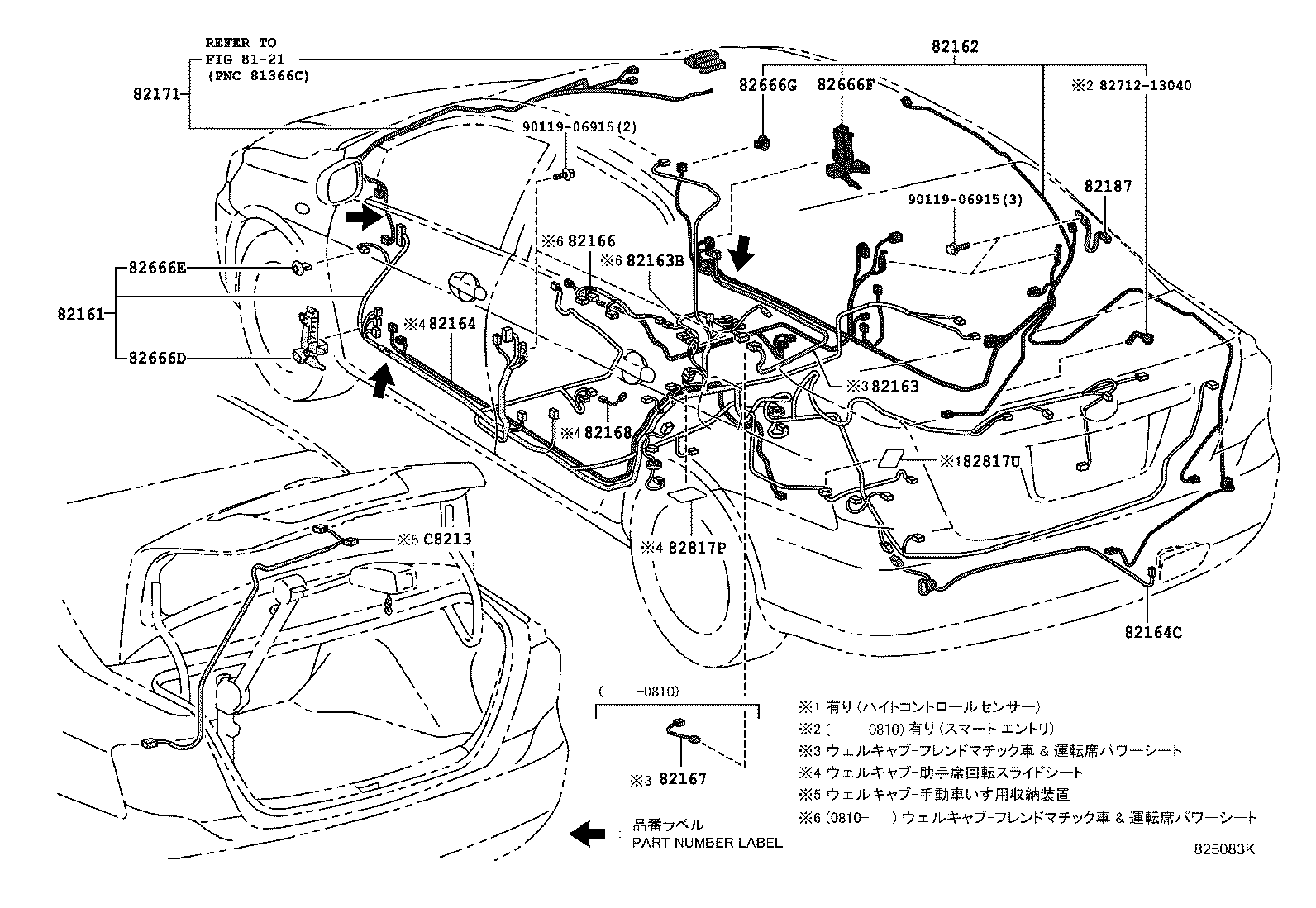

| 82161 - WIRE, FLOOR | ||||
| 82161-12F80 |
NZE141..SED..5F..X ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F60 |
NZE141..SED..5F..X ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F60 |
NZE141..SED..5F..X ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F60 |
NZE141..SED..X ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82161-12F80 |
NZE141..SED..5F..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F50 |
NZE141..SED..X |
1 | ||
| 82161-12F80 |
NZE141..SED SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82161-12F80 |
NZE141..SED..X ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82161-12F60 |
NZE141..SED..5F..X ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F60 |
NZE141..SED..5F..X ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F70 |
NZE141..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-12F70 |
NZE141..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82161-12F90 |
NZE141..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82161-12F90 |
NZE141..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82161-12F80 |
NZE141..SED..5F..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F70 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F90 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F90 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F70 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F80 |
NZE141..SED..5F..X ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82161-12F80 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82161−12F80 |
1 | ||
| 82161-12F60 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82161−12F60 |
1 | ||
| 82161-12F60 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82161−12F60 |
1 | ||
| 82161-12F50 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82161−12F50 |
1 | ||
| 82161-12F80 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82161−12F80 |
1 | ||
| 82161-12F80 |
NZE141..SED 品番ﾗﾍﾞﾙ=82161−12F80 |
1 | ||
| 82161-12F70 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82161−12F70 |
1 | ||
| 82161-12F60 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82161−12F60 |
1 | ||
| 82161-12F80 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82161−12F80 |
1 | ||
| 82161-12F90 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82161−12F90 |
1 | ||
| 82161-12F90 |
NZE141..SED..5F..X 品番ﾗﾍﾞﾙ=82161−12F90 |
1 | ||
| 82161-12F70 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82161−12F70 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12A80 |
NZE141..SED..X |
1 | ||
| 82162-12A90 |
NZE141..SED..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82162-12A80 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82162−12A80 |
1 | ||
| 82162-12A90 |
NZE141..SED..X 品番ﾗﾍﾞﾙ=82162−12A90 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-12030 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-12060 |
NZE14#,ZRE14#..SED 寒冷地仕様&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-12010 |
ZRE144;NZE14#,ZRE142..G,S,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 82168-12010 |
ZRE144;NZE14#,ZRE142..G,S,X ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12G10 |
NZE14#..SED |
1 | ||
| 82171-12G30 |
NZE14#,ZRE14# 品番ﾗﾍﾞﾙ=82171−12G30 |
1 | ||
| 82171-12G30 |
NZE14#,ZRE14# HDDﾅﾋﾞｹﾞｰｼｮﾝ CD 6ｽﾋﾟｰｶ |
1 | ||
| 82171-12G10 |
NZE14#..SED 品番ﾗﾍﾞﾙ=82171−12G10 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12230 |
NZE14#,ZRE14#..SED |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12400 |
NZE14#,ZRE14# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
NZE14#,ZRE14# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-12370 |
NZE14#,ZRE14# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
NZE14#,ZRE14# |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-12400 |
NZE14#,ZRE14#..SED ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-1A640 |
NZE141..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82817-1A640 |
NZE14#..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817-1A640 |
NZE14#..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82817-1A640 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82817-1A640 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82817-1A640 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82817-1A640 |
NZE141..SED..5F..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ 蓋付き |
1 | ||
| 82817-1A640 |
NZE141..SED..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-D1240 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| Common parts | ||||
| 82712-13040 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 7 OF10(0609- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A00 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B11 | ||||
| 82715-12B20 | ||||
| 82715-12B40 | ||||
| 82715-12B50 | ||||
| 82715-12E30 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-12G80 | ||||
| 82715-12K00 | ||||
| 82715-12L50 | ||||
| 82715-28L90 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52A20 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90116-06166 | ||||
| 91621-G0818 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93319-15008 | ||||
| 94151-80600 | ||||
| C8279-12010 | ||||
| Linked diagrams | ||||
| 3401 | ||||
ILLUST NO. 8 OF10(0609- )
ｺﾈｸﾀ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10797 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-11967 | ||||
ILLUST NO. 9 OF10(0609- )
ｺﾈｸﾀ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-12225 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12352 | ||||
| 90980-12490 | ||||
| 90980-12687 | ||||
| 90980-12699 | ||||
ILLUST NO. 6 OF10(0609- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C8217 - WIRE, WELCAB SEAT MAIN | ||||
| C8217-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C8217-D1010 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
ILLUST NO.10 OF10(0609- )
ｺﾈｸﾀ 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12212 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12553 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
