NZE141-AEMEK (2006)
Toyota Corolla Axio/Fielder
ILLUST NO. 2 OF 2(0609- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-12E70E0 |
NZE14#..G GREGE,TRIM4# |
1 | ||
| 67630-12E70B1 |
NZE14#..G GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NZE14#,ZRE14# |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-12E60B1 |
NZE14#..G GRAY,TRIM1# |
1 | ||
| 67640-12E60E0 |
NZE14#..G GREGE,TRIM4# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-12190 |
NZE14#,ZRE14# |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67625-12190 |
NZE14#,ZRE14# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-12320 |
NZE14#,ZRE14# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-12180 |
NZE14#,ZRE14# |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50032 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

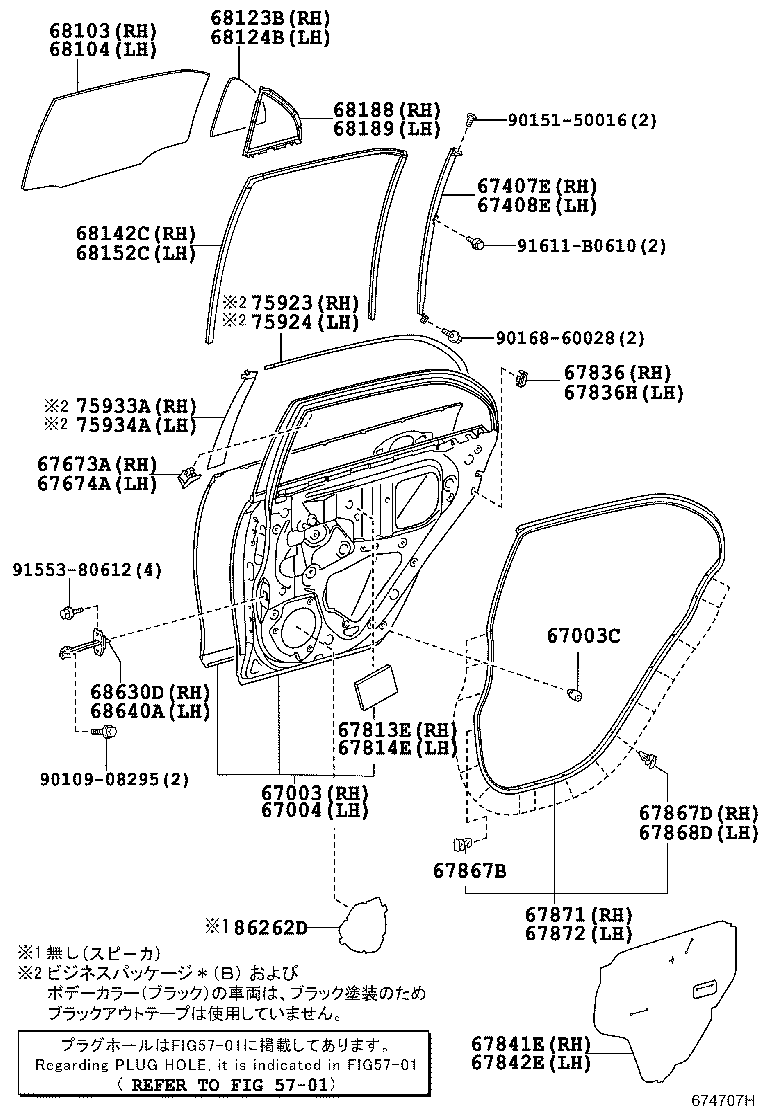

ILLUST NO. 1 OF 2(0609- )SED
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12A30 |
NZE14#,ZRE14#..SED |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
NZE14#,ZRE14# |
2 | ||
| 90541-09143 |
NZE14#,ZRE14# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12A30 |
NZE14#,ZRE14#..SED |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12300 |
NZE14#,ZRE14#..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12300 |
NZE14#,ZRE14#..SED |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
NZE14#,ZRE14# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
NZE14#,ZRE14# |
1 | ||
| 67813E - SHEET, QUARTER PANEL SILENCER, RH | ||||
| 67817-47010 |
NZE14#,ZRE14# |
1 | ||
| 67814E - SHEET, QUARTER PANEL SILENCER, LH | ||||
| 67817-47010 |
NZE14#,ZRE14# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
NZE14#,ZRE14# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
NZE14#,ZRE14# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12370 |
NZE14#,ZRE14# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12180 |
NZE14#,ZRE14# |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-04034 |
NZE14#,ZRE14# |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NZE14#,ZRE14# |
15 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NZE14#,ZRE14# |
15 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12540 |
NZE14#,ZRE14#..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12540 |
NZE14#,ZRE14#..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12780 |
NZE14#..SED *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12780 |
NZE14#..SED *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12810 |
NZE14#..SED *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12810 |
NZE14#..SED *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-12300 |
NZE14#,ZRE14#..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-12210 |
NZE14#,ZRE14#..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12340 |
NZE14#,ZRE14#..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12340 |
NZE14#,ZRE14#..SED |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-12140 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 68630-12140 |
NZE14#,ZRE14# |
1 | ||
| 68630-12140 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-12140 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 68630-12140 |
NZE14#,ZRE14# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 68630-12140 |
NZE14#,ZRE14# |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-12071 |
NZE14#,ZRE14#..SED 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-12071 |
NZE14#,ZRE14#..SED 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75933A - TAPE, BLACK OUT, NO.5 RH | ||||
| 75935-12020 |
NZE14#,ZRE14#..SED 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75934A - TAPE, BLACK OUT, NO.5 LH | ||||
| 75936-12020 |
NZE14#,ZRE14#..SED 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90168-60028 | ||||
| 91553-80612 | ||||
| 91611-B0610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
