NRE161G-AWXEB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1710)NRE161,NZE161..CVT

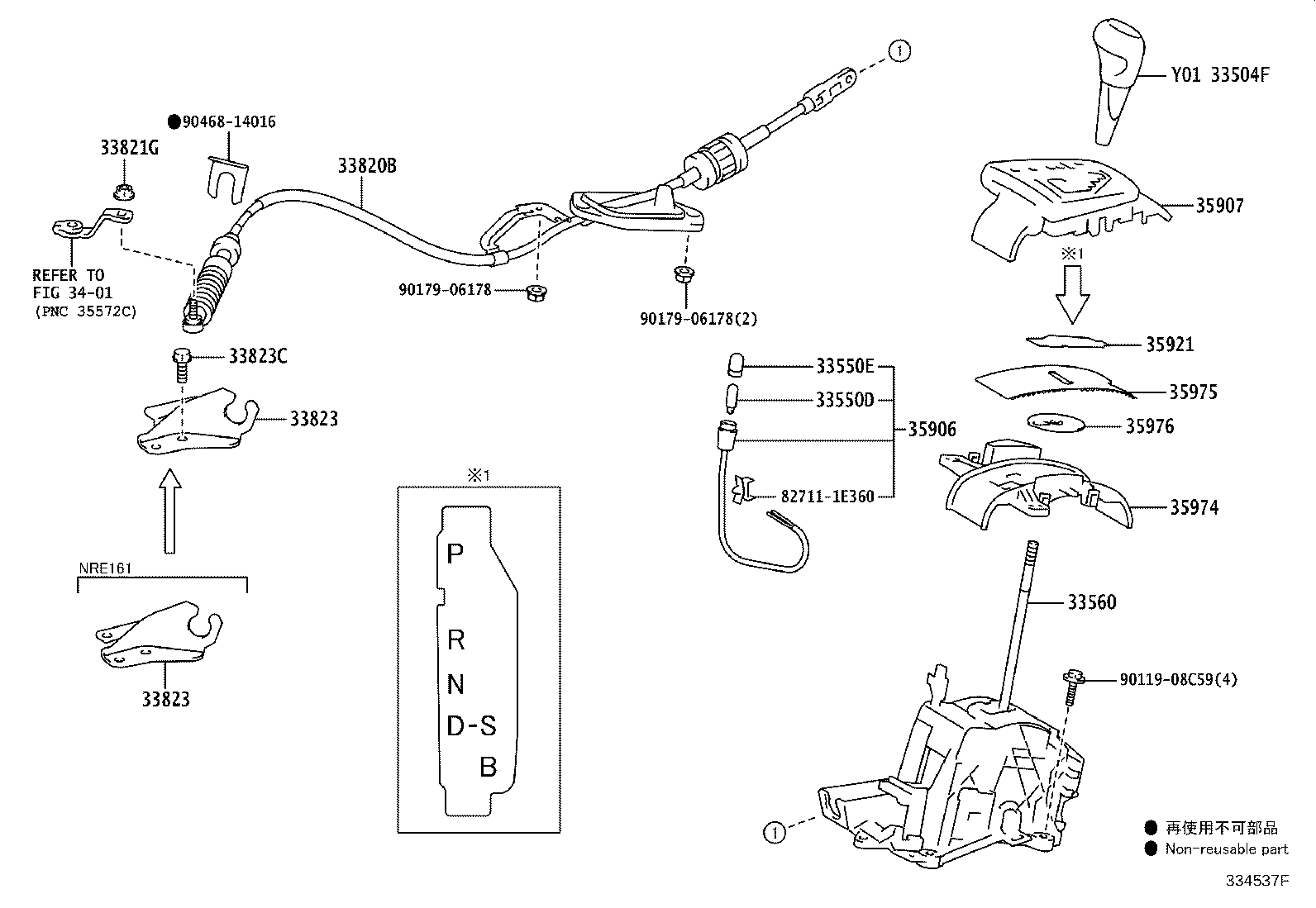

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33820B 33821G 33823 33823 33823C 3401 35906 35907 35921 35974 35975 35976 827111E360 9011908C59 9017906178 9017906178 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12540C0

NRE161,NZE164..5D;NKE165,NRE160..HBD,X;NRE161,NZE164..4D..X

BLACK,TRIM2#

 1
33504-13080

NRE161,NZE164..5D..G

1.5G”AEROTOURER･WxB”*(X)

 1
33504-13080

NKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)

ﾓﾃﾞﾘｽﾀ CROSS FIELDER

 1
33504-13080

NKE165,NRE161,NZE164..5D..(G,HBDG)

G“+Red”*(R)

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010

NKE165,NRE16#,NZE164,ZRE162

12V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-52020

NKE165,NRE16#,NZE164,ZRE162

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12560

NRE16#,NZE164

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12G20

NRE161

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NKE165,NRE16#,NZE164,ZRE162

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52150

NRE161

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52150

NRE161

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

NRE16#,NZE164,ZRE162

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12310

NRE16#,NZE164

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-12640

NRE16#,NZE164..X

 1
35907-13070

NRE161,NZE164..5D..G

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12660

NRE16#,NZE164

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12350

NKE165,NRE16#,NZE164,ZRE162

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12470

NKE165,NRE16#,NZE164,ZRE162

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-52140

NKE165,NRE16#,NZE164,ZRE162

 1
Common parts
82711-1E360
90119-08C59
90179-06178
90468-14016
Linked diagrams
3401
