NRE161G-AWXEB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )2NRFKE

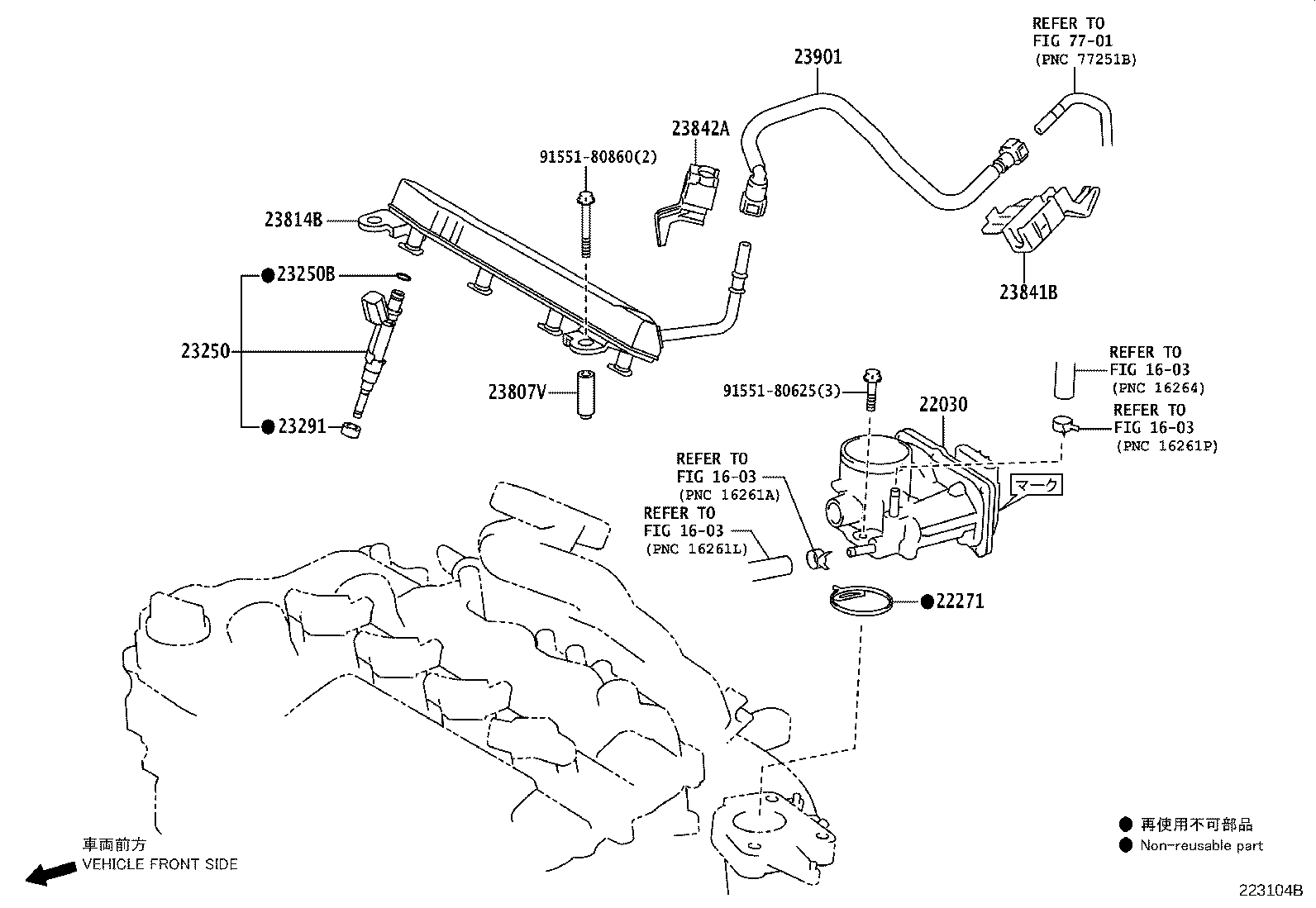

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22030 22271 23250 23250B 23291 23807V 23814B 23841B 23842A 23901 7701 9155180625 9155180860
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-47090

2NRFKE..NRE161

ﾏｰｸ=22030−47090

 1
22030-47060

2NRFKE..NRE161

ﾏｰｸ=22030−47060

 1
22271 - GASKET, THROTTLE BODY
22271-47050

2NRFKE..NRE161

 1
23250 - INJECTOR ASSY, FUEL
23209-49245

2NRFKE..NRE161

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1N#,2NRFKE..NKE165,NRE16#,NZE16#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1N#,2NRFKE..NKE165,NRE16#,NZE16#

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-47030

1NRFE,2NRFKE..NRE16#

 2
23814B - PIPE, FUEL DELIVERY
23814-47050

1NRFE,2NRFKE..NRE16#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37090

2NRFKE..NRE161

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23841-21050

2NRFKE..NRE161

 1
23901 - TUBE SUB-ASSY, FUEL
23901-47080

2NRFKE..NRE161

 1
Common parts
91551-80625
91551-80860
Linked diagrams
1603
7701
