NRE161G-AWXEB (2015)
Toyota Corolla Axio/Fielder
(1503- )2NRFKE

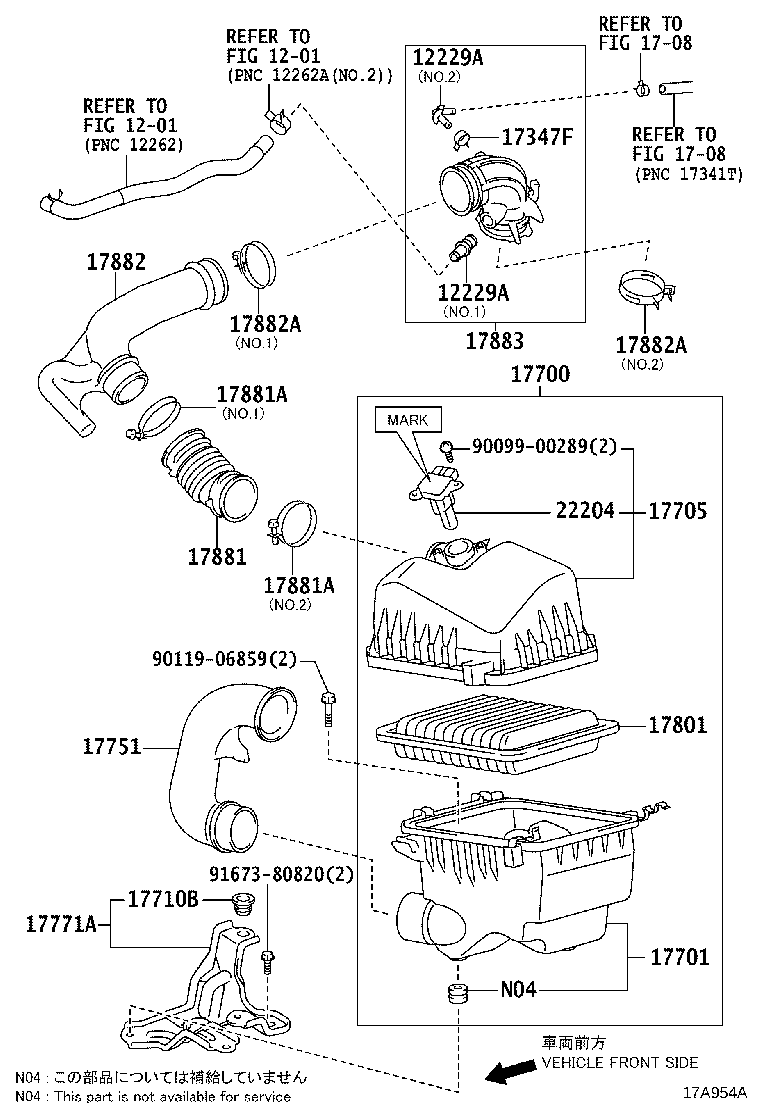

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229A - PIPE, VENTILATION | ||||
| 12229-47010 |
2NRFKE..NRE161 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 12229-21010 |
2NRFKE..NRE161 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 12229A - PIPE, VENTILATION | ||||
| 12229-47010 |
2NRFKE..NRE161 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 12229-21010 |
2NRFKE..NRE161 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 96136-41901 |
2NRFKE..NRE161 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-47160 |
2NRFKE..NRE161 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-21100 |
1NZFE,2NRFKE..NRE161,NZE16# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-47130 |
2NRFKE..NRE161 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
1NZFE,2NRFKE..NRE161,NZE16# |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-47080 |
2NRFKE..NRE161 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-21050 |
1NZFE,2NRFKE..NRE161,NZE16# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-21050 |
1NZFE,2NRFKE..NRE161,NZE16# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-47070 |
2NRFKE..NRE161 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2NRFKE..NRE161 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96111-10730 |
2NRFKE..NRE161 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2NRFKE..NRE161 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96111-10730 |
2NRFKE..NRE161 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-47050 |
2NRFKE..NRE161 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
2NRFKE..NRE161 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96111-10730 |
2NRFKE..NRE161 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
2NRFKE..NRE161 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96111-10730 |
2NRFKE..NRE161 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-47041 |
2NRFKE..NRE161 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0T040 |
1NZFXE,1NRFE,2NRFKE..NKE165,NRE16# ﾏｰｸ 22204−0T040 |
1 | ||
| 22204-0V020 |
1NZFXE,1NRFE,2NRFKE..NKE165,NRE16# ﾏｰｸ 22204−0V020 |
1 | ||
| 22204-0V010 |
1NZFXE,1NRFE,2NRFKE..NKE165,NRE16# ﾏｰｸ 22204−0V010 |
1 | ||
| 22204-28010 |
1NZFXE,1NRFE,2NRFKE..NKE165,NRE16# ﾏｰｸ 22204−28010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
