NRE161G-AWXEB (2017)

Toyota Corolla Axio/Fielder

Production Oct 2017 - Aug 2019
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

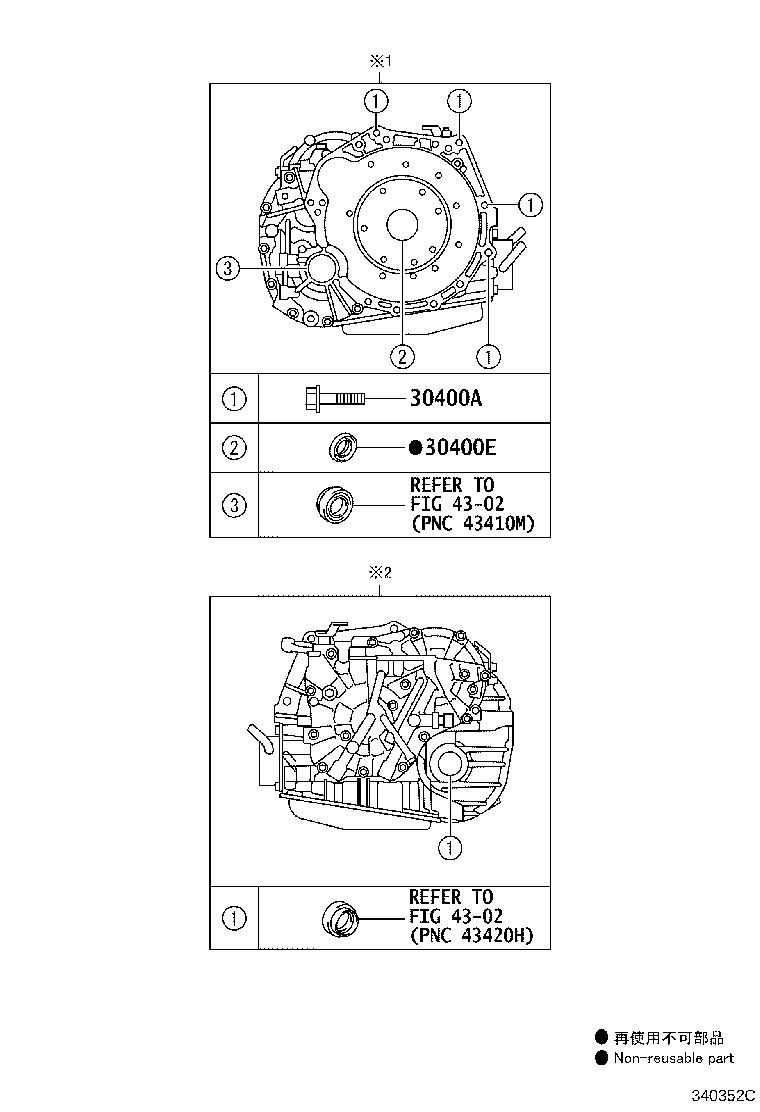

ILLUST NO. 3 OF 3(1204- )NRE16#

Click highlighted areas on diagram

K312,K411

diagram 30400A 30400E 4302 4302
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91552-81245

NRE160;NRE161..G

 4
91552-81245

NRE161..X

 4
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45027

NRE161,NZE164,ZRE162..G,S

 1
90311-45027

NRE161,NZE16#..CVT..X

 1
Linked diagrams
4302

ILLUST NO. 1 OF 3(1204- )CVT

Click highlighted areas on diagram

K310F,K311,K312,K411

diagram 30140
Part # Description Qty Price
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-12270

NRE161

K312

 1
