NRE161-AEXNB (2015)
Toyota Corolla Axio/Fielder
Production
Mar 2015
-
Oct 2017
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1503- )NRE161

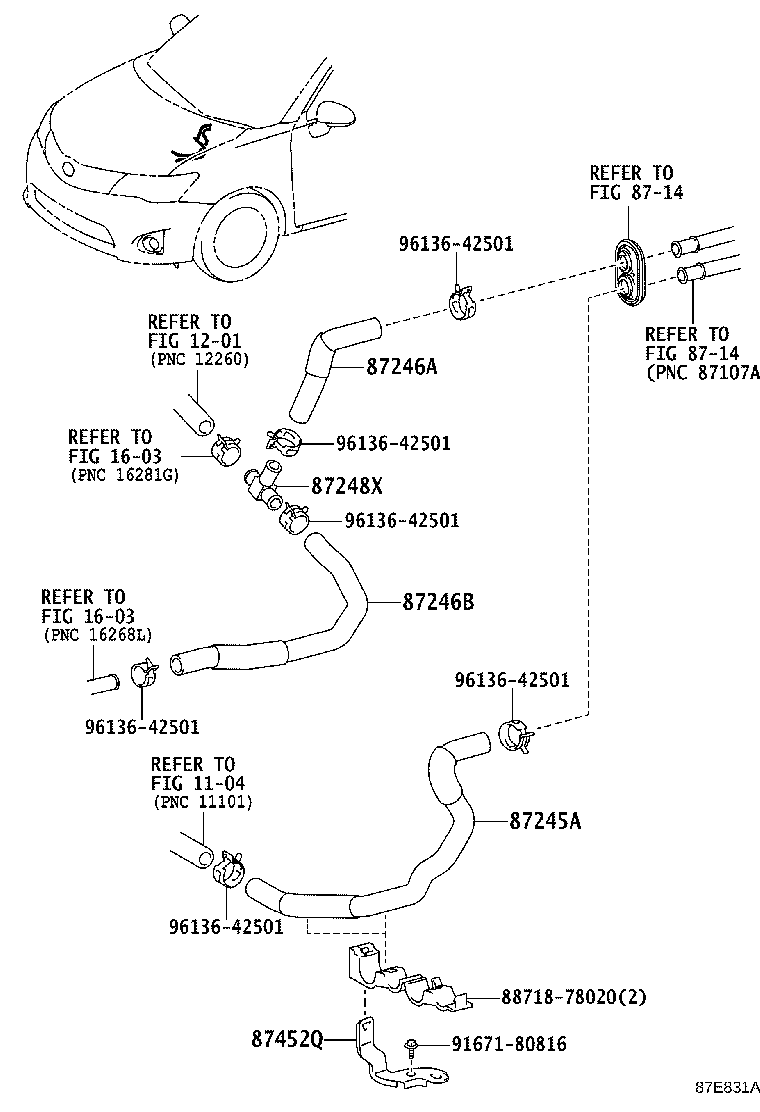

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-52300 |
NRE161 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-52330 |
NRE161 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-52360 |
NRE161 |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-26880 |
NRE161 |
1 | ||
| 87452Q - BRACKET, HEATER, NO.1 | ||||
| 87121-52070 |
NRE161 |
1 | ||
| Common parts | ||||
| 88718-78020 | ||||
| 91671-80816 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1201 | ||||
| 1603 | ||||
| 8714 | ||||
