NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )4D

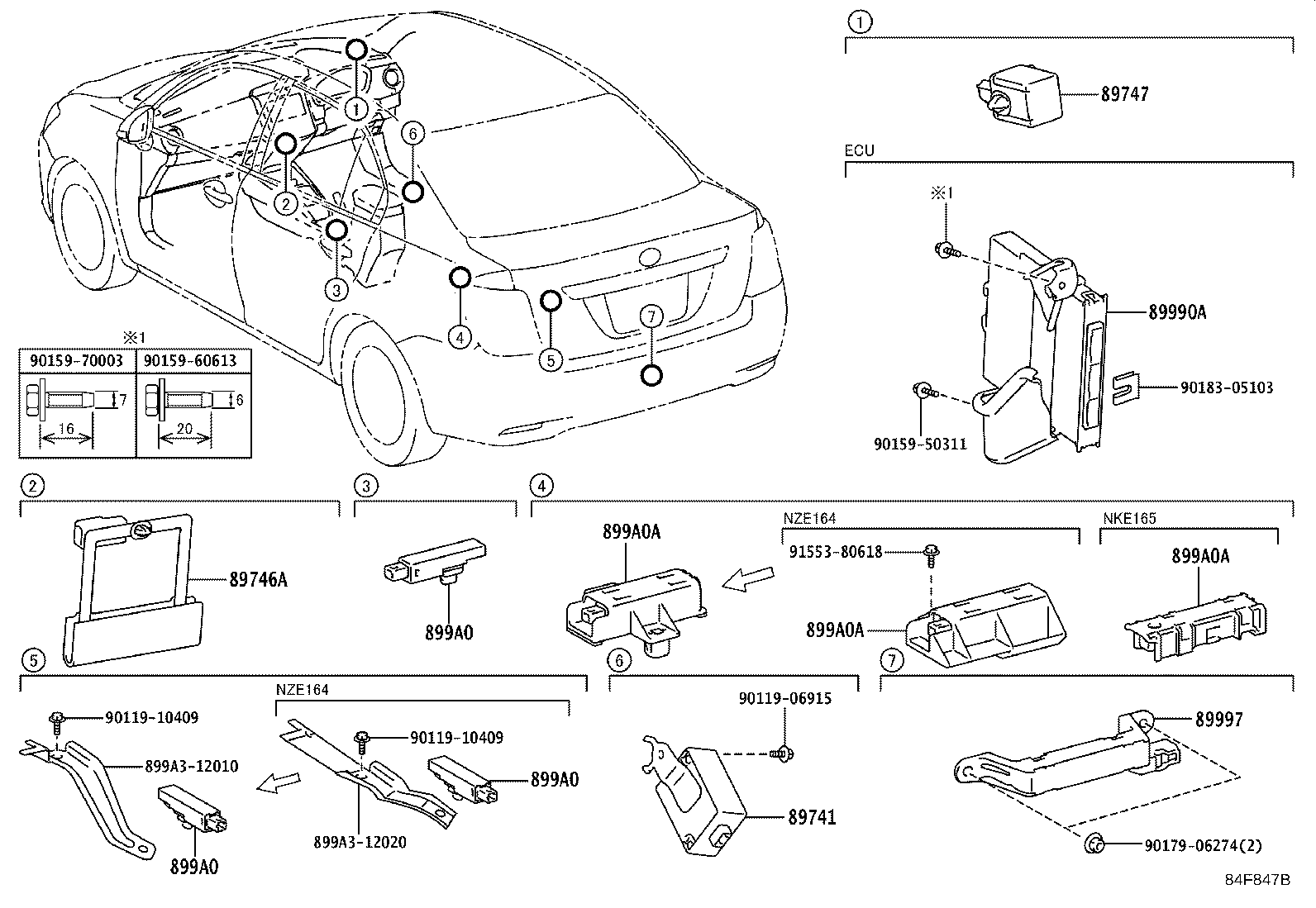

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 89741 89746A 89747 89990A 89997 899A0 899A0 899A0 899A0A 899A0A 899A0A 899A312010 899A312020 9011906915 9011910409 9011910409 9015950311 9015960613 9015970003 9017906274 9018305103 9155380618
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-12621

NKE165,NRE16#,NZE16#..4D

 1
Common parts
899A3-12010
899A3-12020
90119-06915
90119-10409
90159-50311
90159-60613
90159-70003
90179-06274
90183-05103
91553-80618
