NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )NRE161

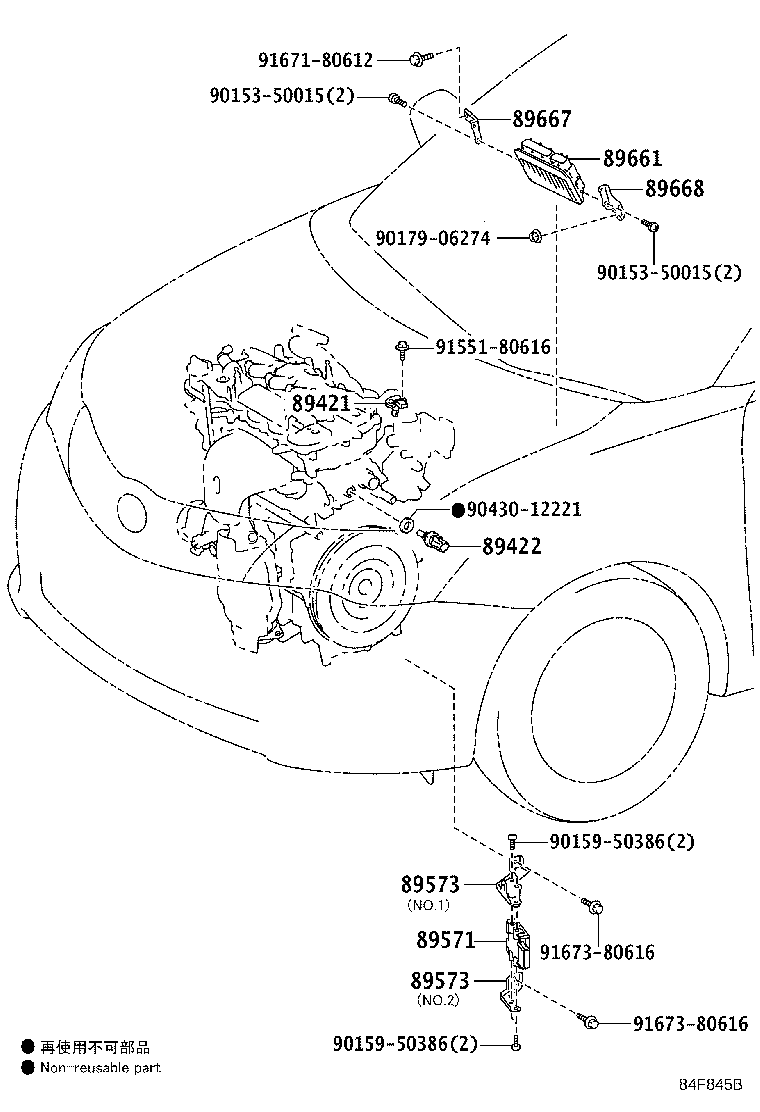

Click highlighted areas on diagram

diagram 89421 89422 89571 89573 89573 89661 89667 89668 9015350015 9015350015 9015950386 9015950386 9017906274 9043012221 9155180616 9167180612 9167380616 9167380616
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

NKE165,NRE161

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NKE165,NRE16#,NZE16#,ZRE162

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-34070

NRE161,ZRE162

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-52040

NRE161

NO.2

 1
89573-52030

NRE161

NO.1

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-52040

NRE161

NO.2

 1
89573-52030

NRE161

NO.1

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12S50

NRE161

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52340

NKE165,NRE16#,NZE16#,ZRE162

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52350

NKE165,NRE16#,NZE16#,ZRE162

 1
Common parts
90153-50015
90159-50386
90179-06274
90430-12221
91551-80616
91671-80612
91673-80616
