NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

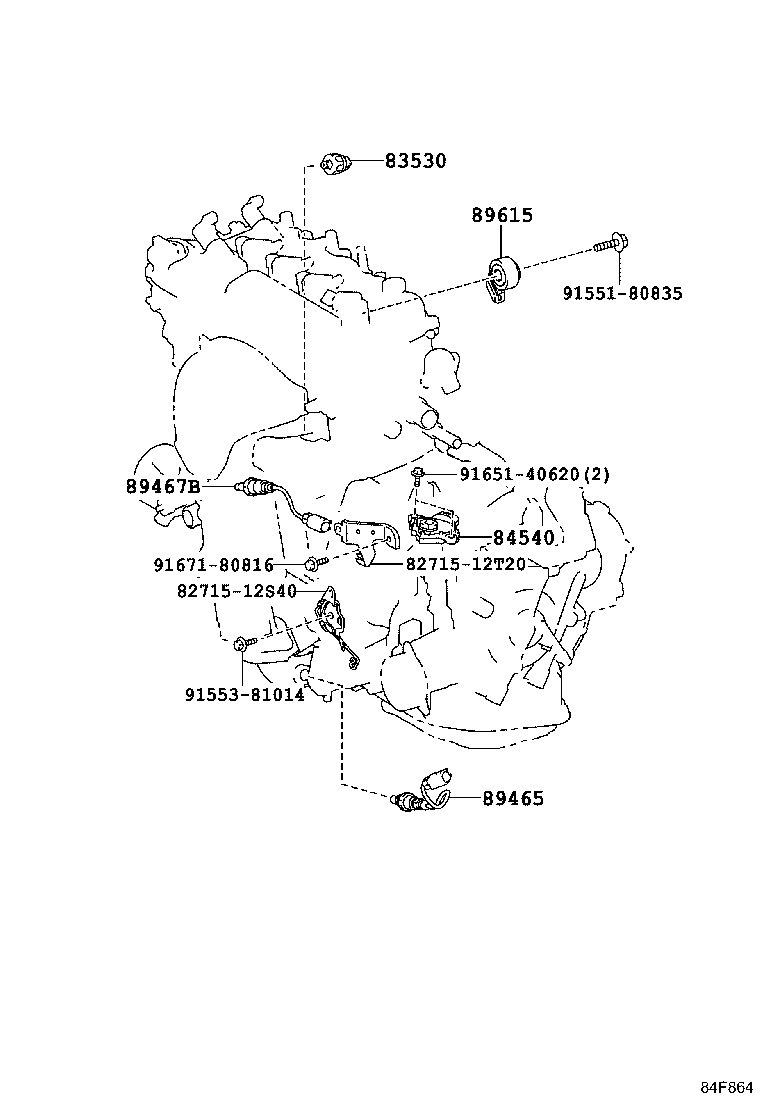

ILLUST NO. 1 OF 7(1503- )NRE161

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

diagram 8271512S40 8271512T20 83530 84540 89465 89467B 89615 9155180835 9155381014 9165140620 9167180816
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

NKE165,NRE16#,NZE16#,ZRE162

DENSO

 1
83530-60020

NKE165,NRE16#,NZE16#,ZRE162

YAZAKI

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-52070

NRE16#,NZE164,ZRE162

 1
89465 - SENSOR, OXYGEN
89465-52740

NRE16#

 1
89467B - SENSOR, AIR FUEL RATIO
89467-52240

NRE161

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

NKE165,NRE16#,NZE16#,ZRE162

 1
Common parts
82715-12S40
82715-12T20
91551-80835
91553-81014
91651-40620
91671-80816
