NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

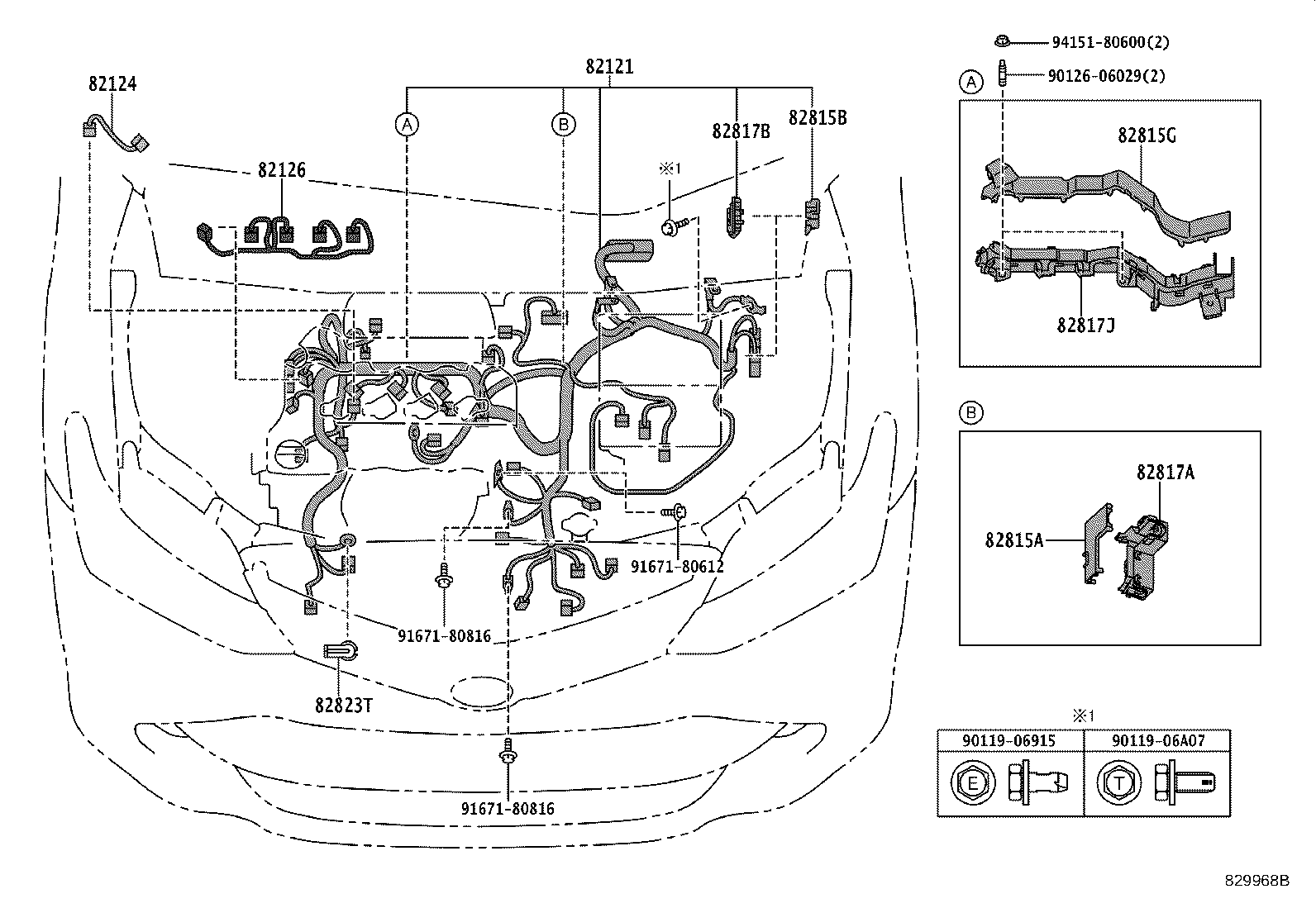

ILLUST NO. 2 OF11(1503- )NRE161

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82124 82126 82815A 82815B 82815G 82817A 82817B 82817J 82823T 9011906915 9011906A07 9012606029 9167180612 9167180816 9167180816 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-52T80

NRE161

 1
82124 - WIRE, ENGINE, NO.4
82124-12150

NRE16#

 1
82126 - WIRE, ENGINE
82126-52010

NRE161

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-52400

NRE161

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52120

NRE16#,NZE16#,ZRE162

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-52380

NRE161

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52G30

NRE161

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-52850

NRE16#,NZE16#,ZRE162

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-52A90

NRE161

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NRE16#,NZE16#,ZRE162

 1
Common parts
90119-06915
90119-06A07
90126-06029
91671-80612
91671-80816
94151-80600
